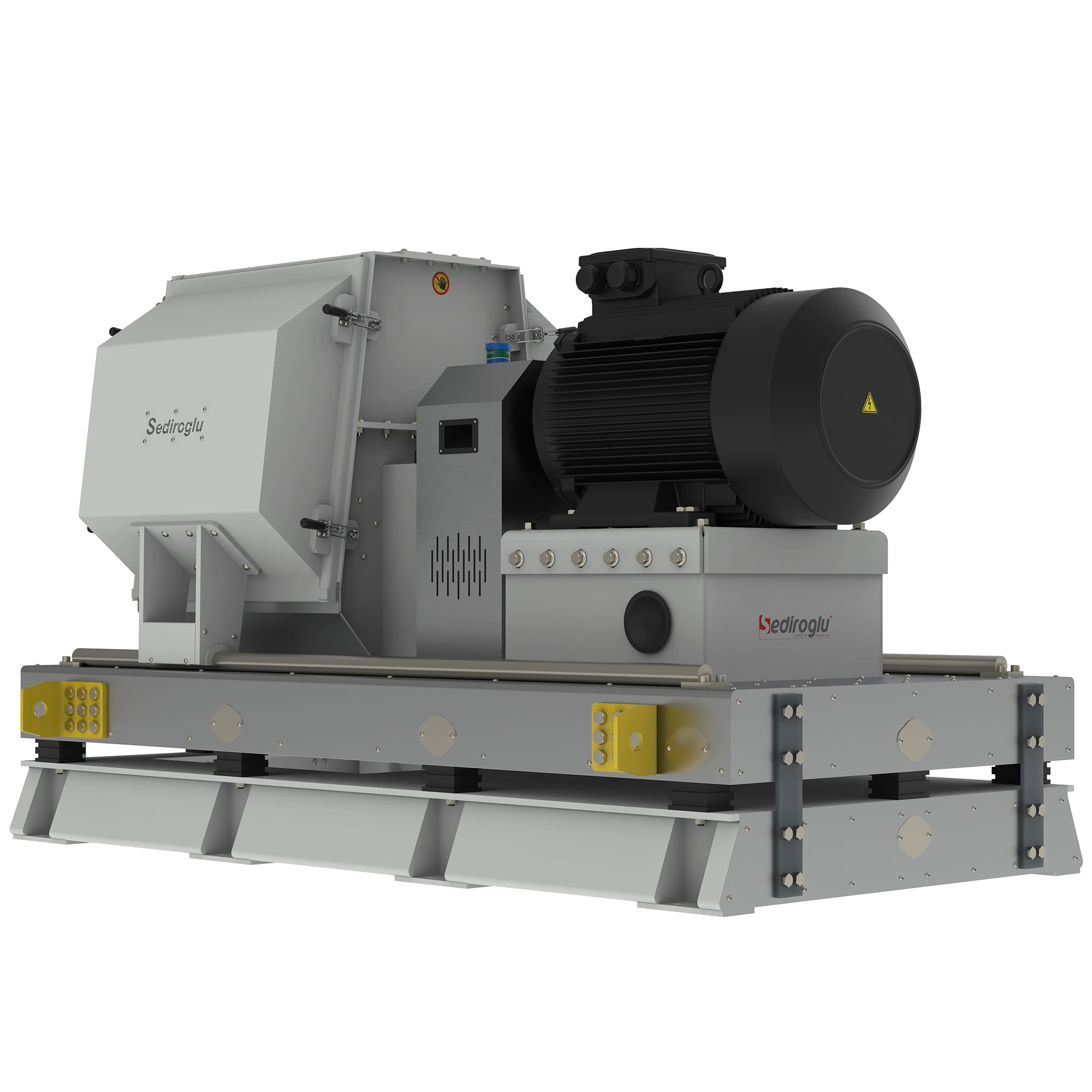

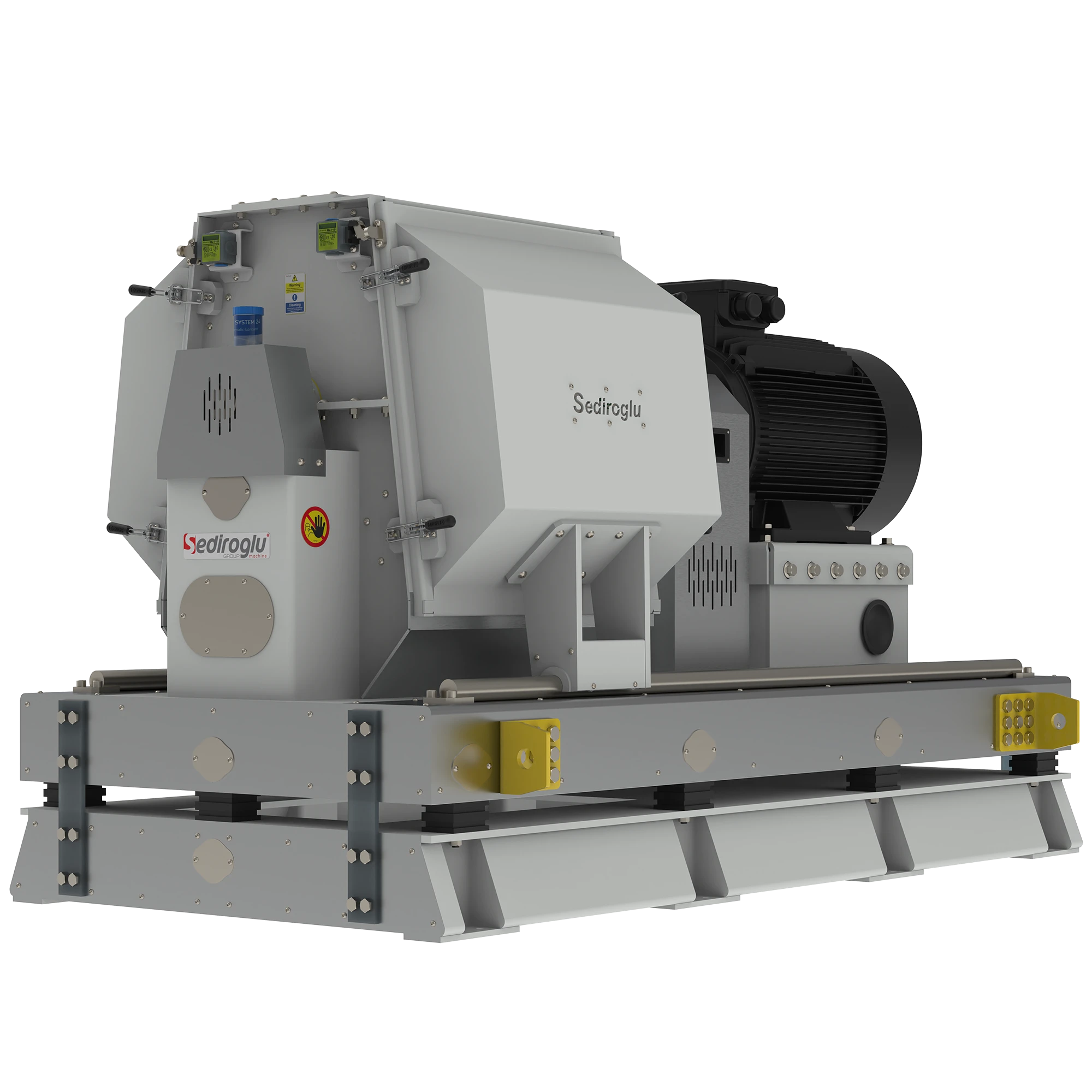

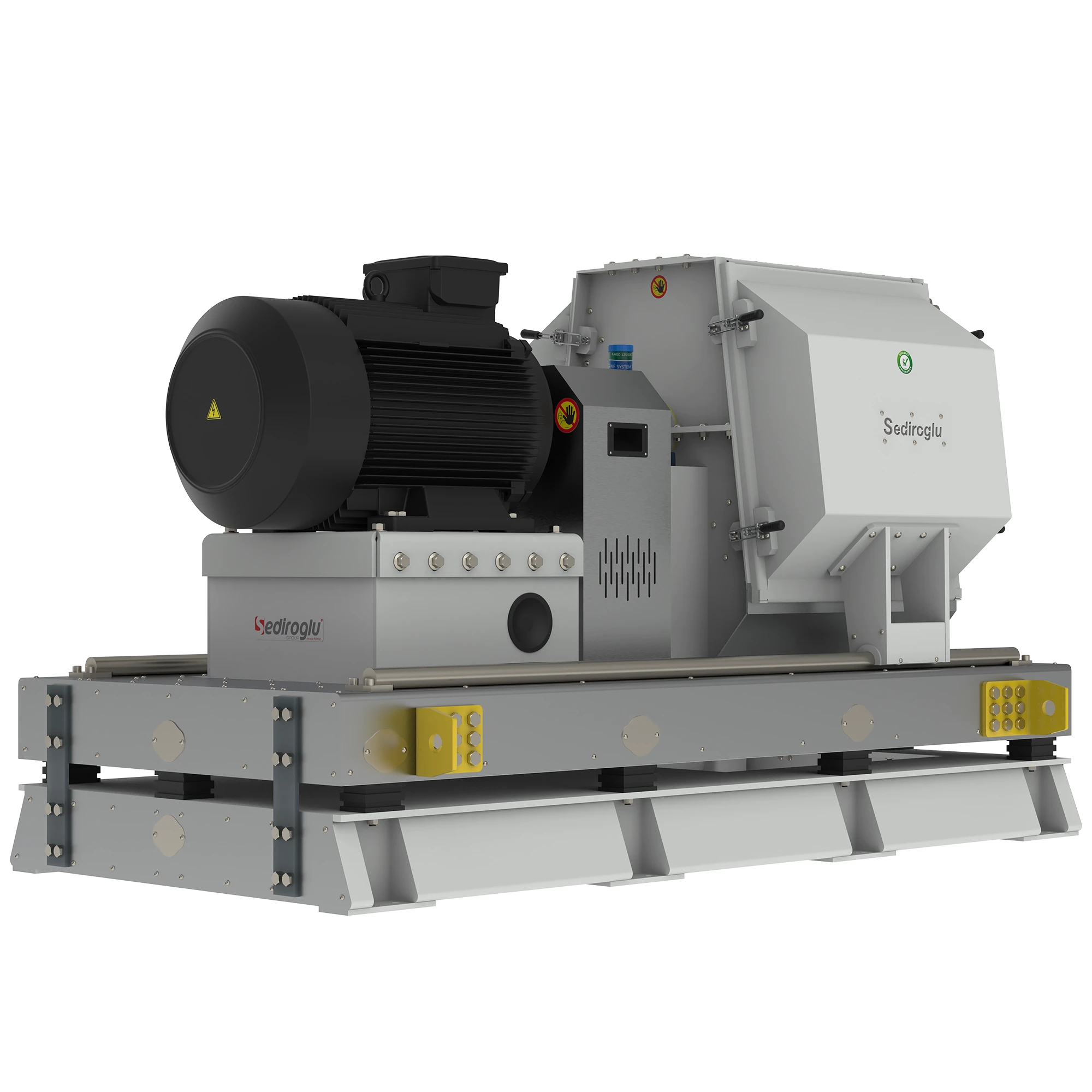

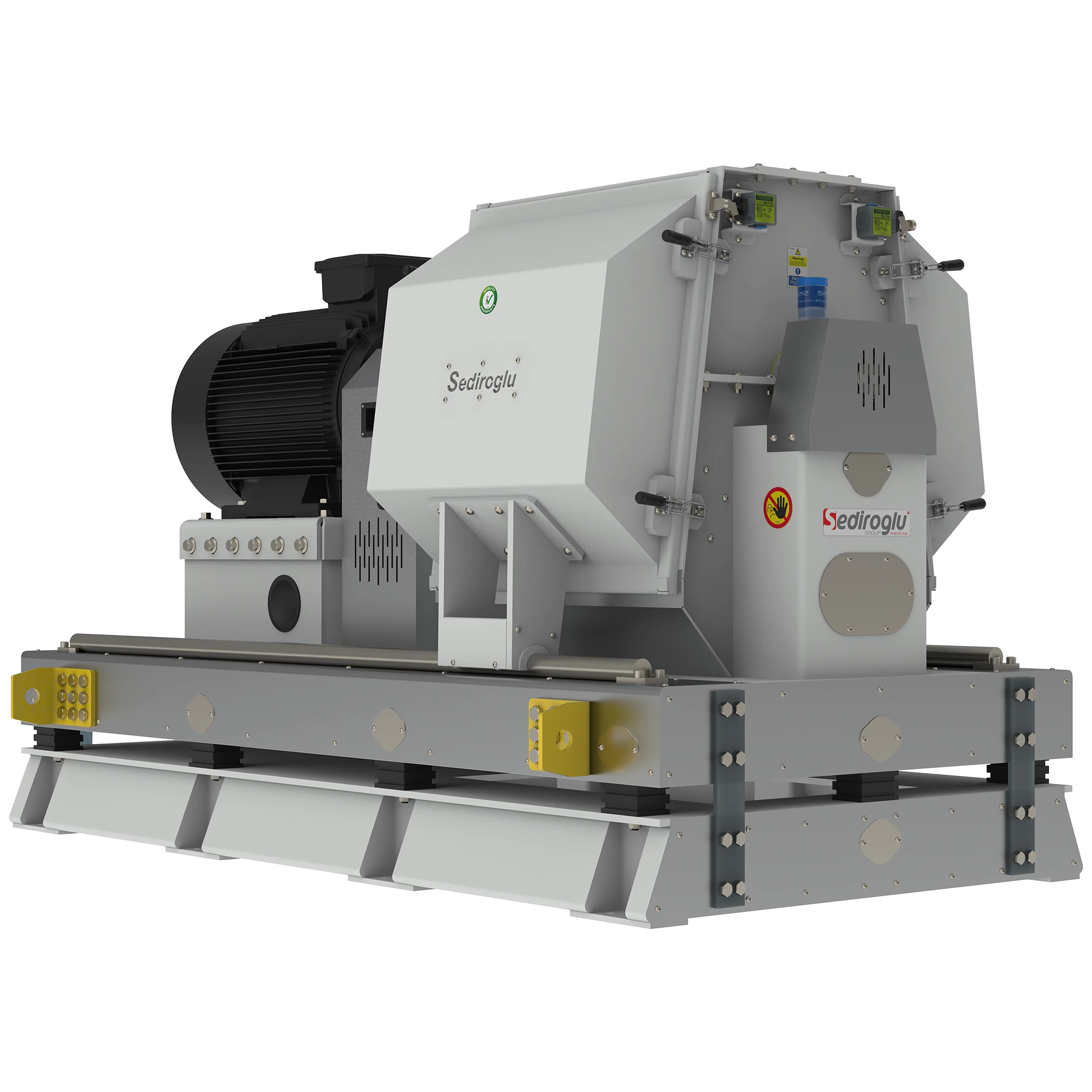

Feed Hammer Mill 35 Ton per Hour

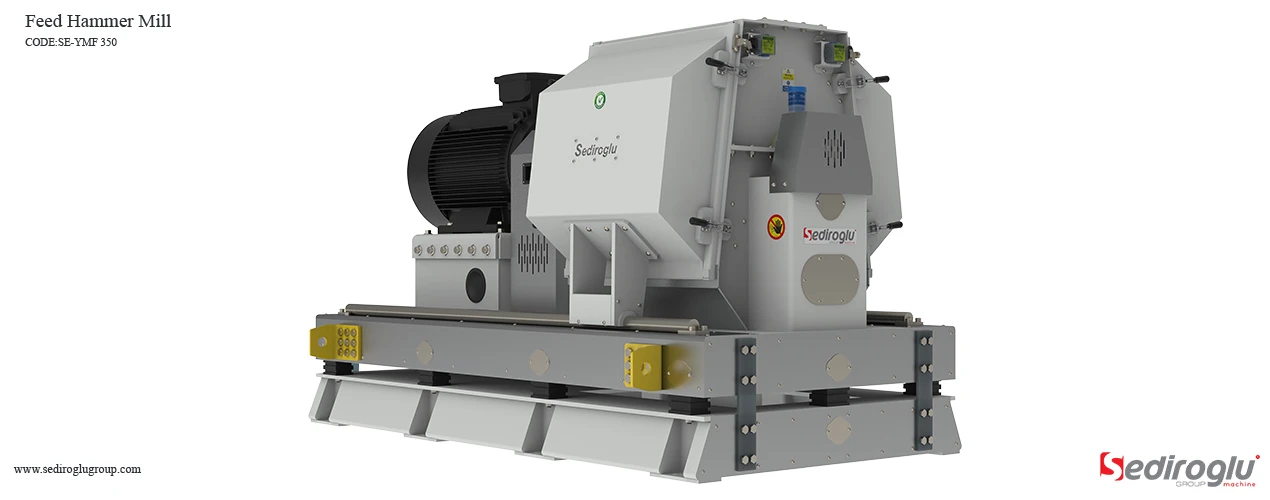

SE-YMF 350 – Feed Hammer Mill 35 Ton/h | SEDIROGLU GROUP

The SEDIROGLU GROUP SE-YMF 350 Feed Hammer Mill is designed for ultra-high-capacity feed production plants, delivering exceptional performance, precision, and reliability. With a production capacity of up to 35 tons per hour, it efficiently processes a wide variety of raw materials including corn, wheat, barley, sorghum, rice bran, soybean meal, sunflower meal, rapeseed cake, DDGS, poultry and livestock feed mixtures, aquafeed ingredients, and biomass by-products. Raw materials up to 60 mm edge length are reduced to a uniform particle size range of 0.4–1.0 mm, ensuring consistent feed quality, optimal digestibility, and efficient pelleting performance.

The SE-YMF 350 features a multi-chamber crushing system that balances rotor load while increasing impact frequency for efficient material reduction. The stationary hammer structure breaks internal circulation layers to prevent over-grinding and maintain uniform particle size distribution. The adjustable hammer-to-screen clearance allows operators to tailor the fineness according to feed formulations, making it suitable for both coarse grinding and fine processing for pet food or aquafeed production.

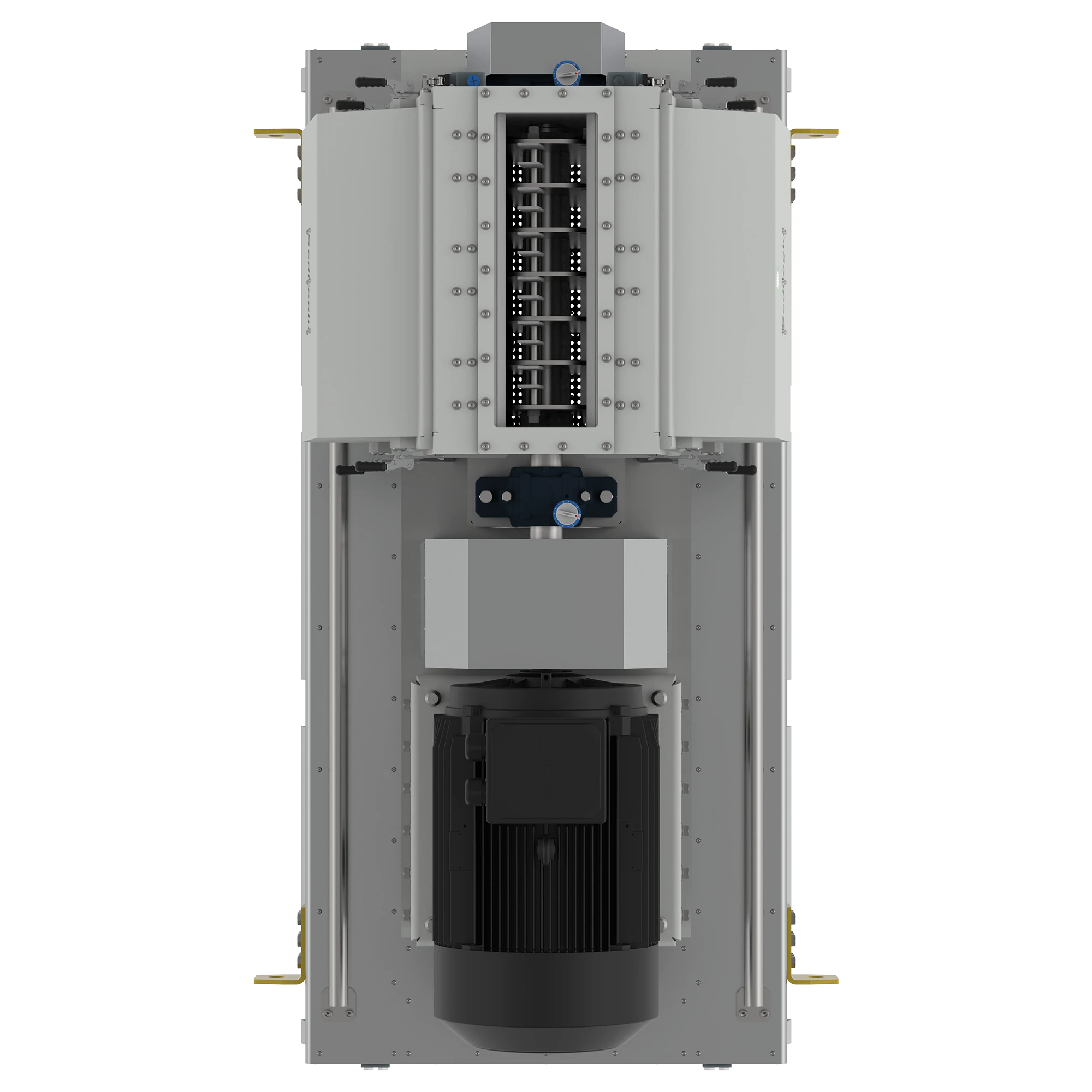

For operational efficiency, the mill is equipped with large sliding maintenance doors at an ergonomically optimized height, allowing safe and fast access to the grinding chamber. The tool-free quick screen replacement system minimizes downtime, while reversible rotor operation ensures even wear of hammers and screens, extending service life. Operating at a low noise level of 90–93 dBA, it provides a low-vibration, safe, and comfortable working environment for continuous industrial feed production.

Weekly Maintenance:

• Inspect rotor and hammer condition for wear.
• Check hammer-to-screen clearance and adjust as needed.
• Lubricate bearings and moving components using recommended oils or greases.
• Inspect electro-pneumatic rotary deflection plate for proper function.

Monthly Maintenance:

• Replace worn hammers and check hammer alignment.
• Inspect motor temperature and drive coupling for stability.
• Check screen assembly for damage and replace any compromised sections.
• Verify proper operation of all safety switches and interlocks.

Yearly Maintenance:

• Fully disassemble and clean the grinding chamber.
• Replace all worn hammers and screens if necessary.
• Inspect rotor for balance and wear; recalibrate if required.
• Perform full lubrication and mechanical inspection of all moving parts.

Advantages and Benefits:

• High-capacity grinding up to 35 tons per hour with uniform 0.4–1.0 mm particle size.
• Multi-chamber and stationary hammer design ensures even particle distribution and reduced circulation.
• Tool-free screen replacement and ergonomic maintenance access minimize downtime.
• Low noise and vibration operation improves worker safety and comfort.
• Optimized rotor tip speed and energy-efficient design maximize throughput while reducing operational costs.

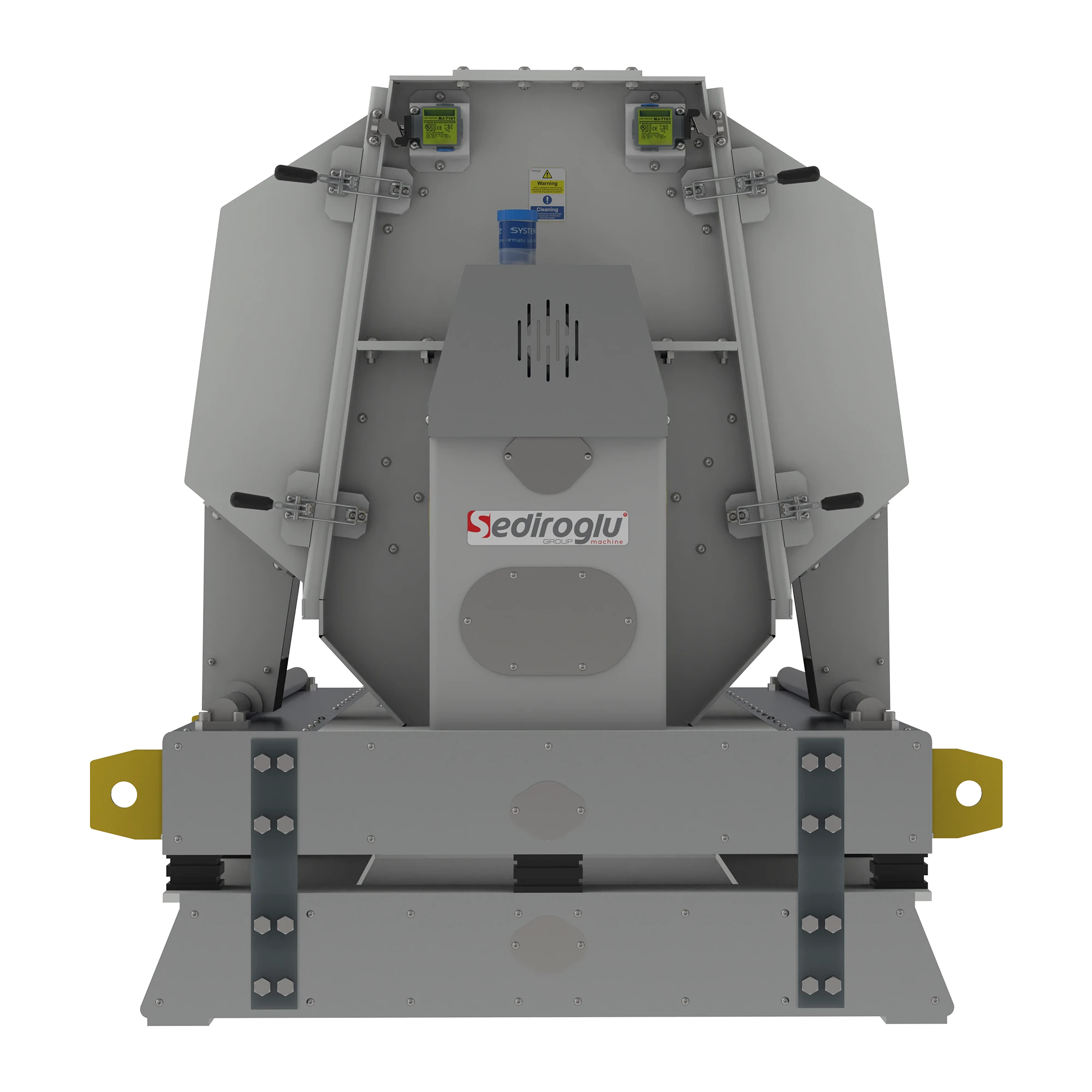

• Durable construction with HARDOX 550 hammer tips ensures long-term reliability and minimal wear.

Applications:

• Coarse grinding of grains and feed for poultry, livestock, and aquaculture.
• Fine grinding for pet food, fish feed, and aquafeed production.

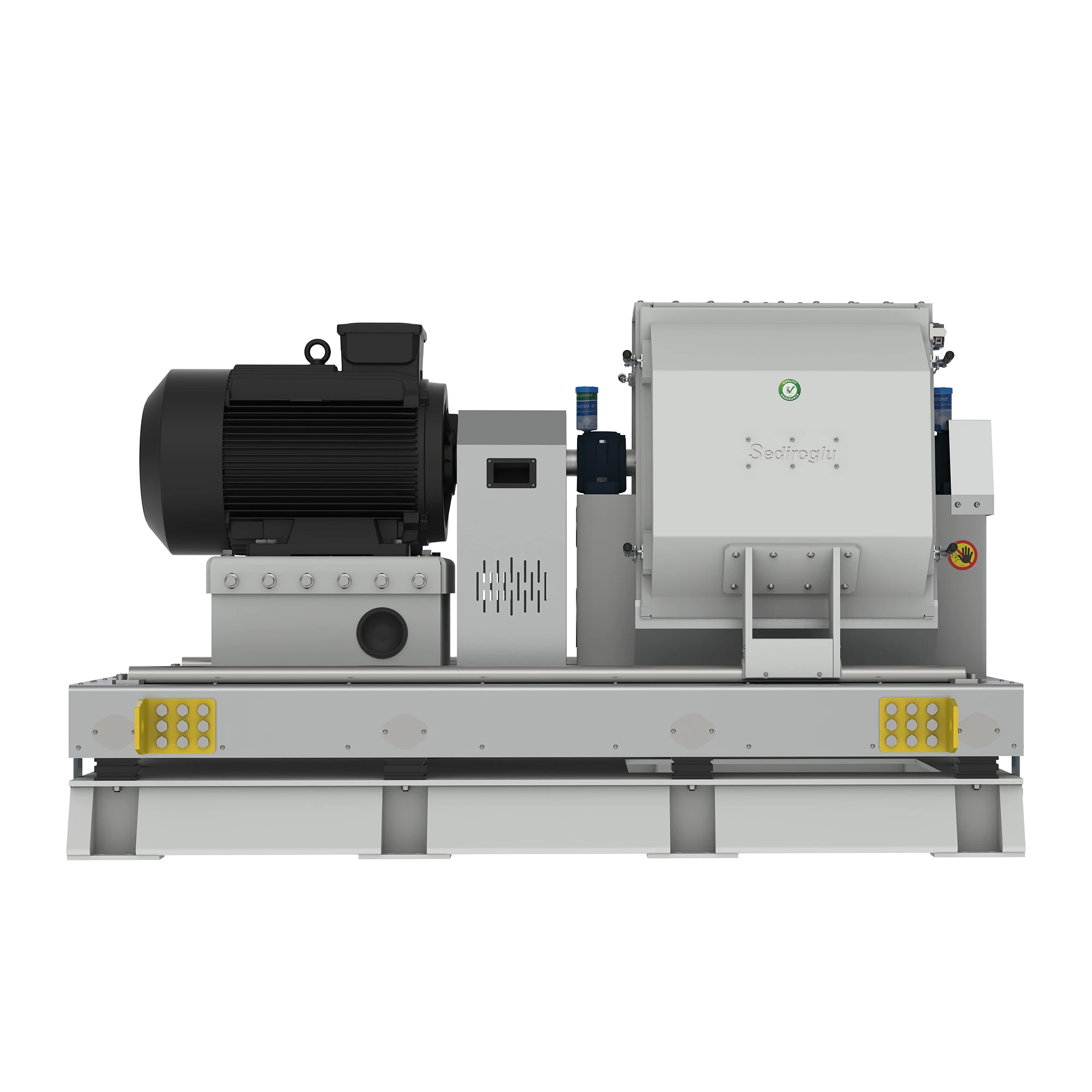

• Processing of oilseed meals, DDGS, and biomass for feed manufacturing.
• Grinding agricultural by-products to improve feed utilization and nutrient availability.

The SE-YMF 350 Feed Hammer Mill from SEDIROGLU GROUP combines innovative design, high capacity, and operational efficiency to provide a reliable, low-maintenance grinding solution. Its features guarantee uniform particle size, minimal downtime, and superior feed quality, making it an indispensable machine for ultra-large-scale feed production facilities worldwide.
