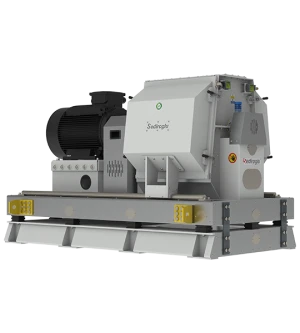

Feed Hammer Mill 15 Ton per Hour
SE-YMF 150
Feed Hammer Mill 10 Ton per Hour

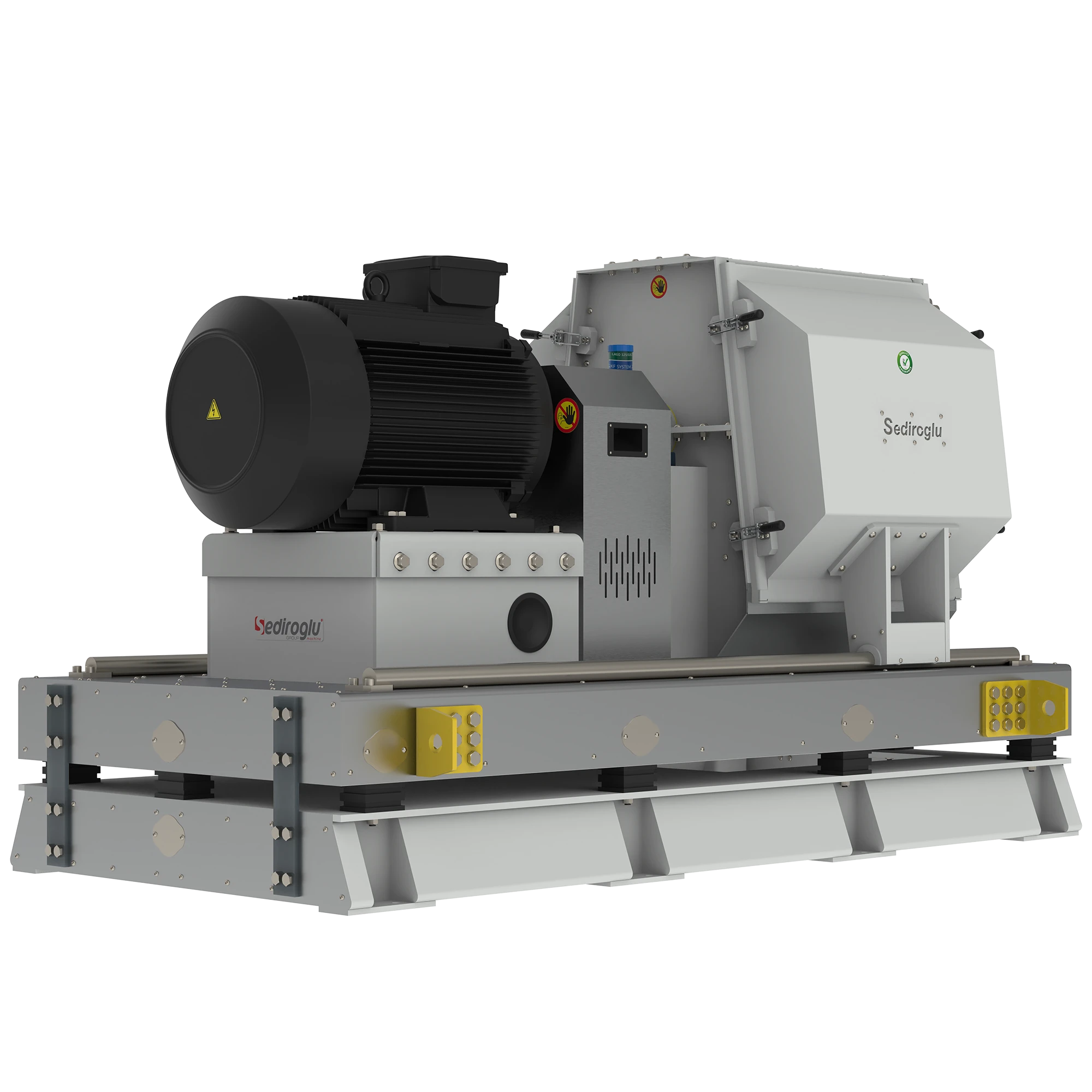

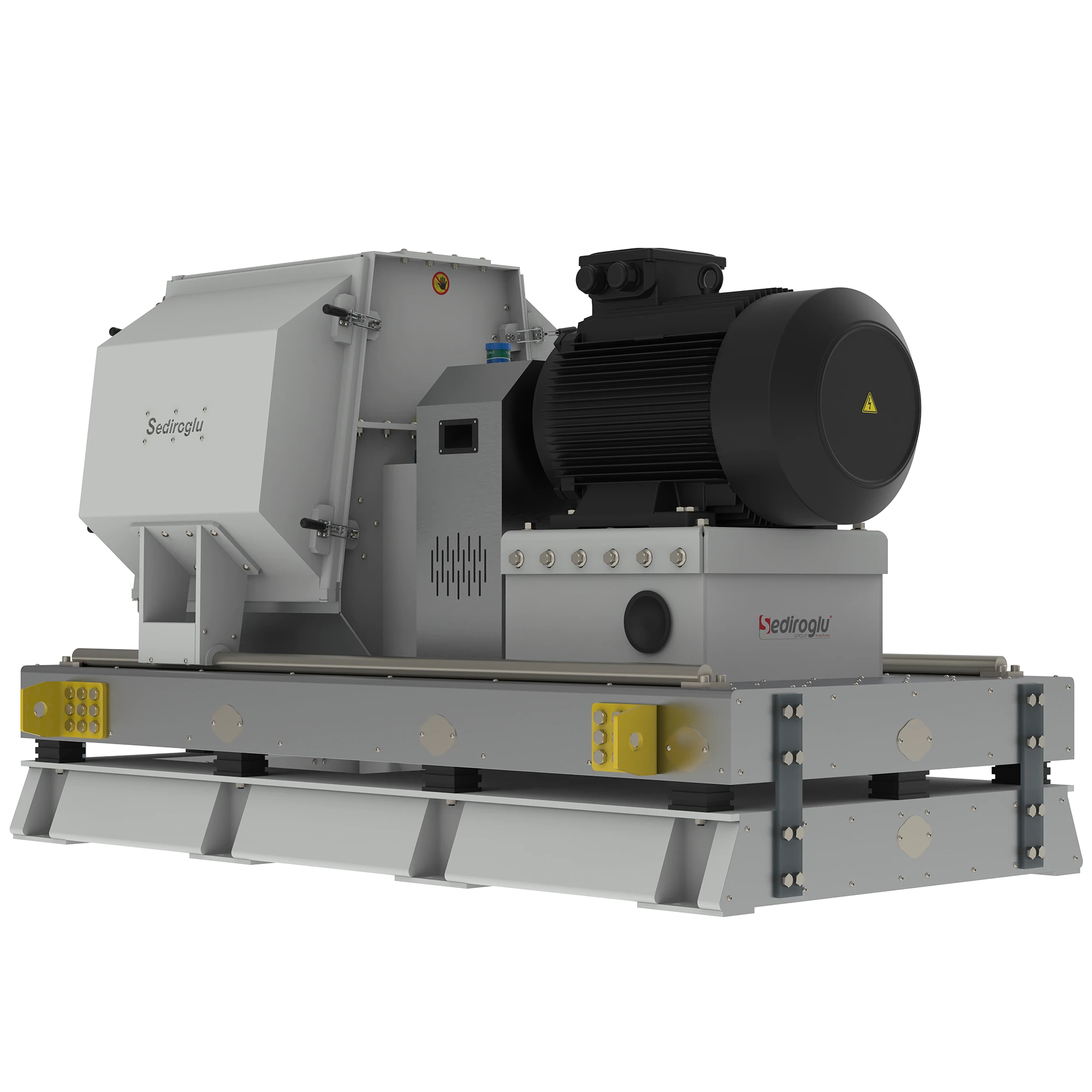

SE-YMF 100 Feed Hammer Mill delivers up to 10 tons per hour grinding capacity, reducing raw materials up to 60 mm down to 400–1000 µm. Suitable for grains, corn, wheat, barley, oilseed meals, biomass, and animal feed ingredients worldwide. Designed with multi-chamber crushing technology, electro-pneumatic rotary deflector, adjustable hammer clearance, and low noise level of 90–93 dBA under nominal load.
Machine code:
SE-YMF 100
Metal Feature
Sediroglu Group lets you select the metal feature that best suits your machine, ensuring optimal performance and meeting your operational needsMachine Motor Specification
Select the motor brand you want for your machine to ensure optimal performance, reliability, and compatibility with your specific operational requirementsSpare Parts
Select the spare parts required for your machine based on your operational needs, ensuring continued performance and minimizing downtimeThe Answers to Your Questions Are Here
We've answered the most frequently asked questions about the product. From technical details and ease of use to maintenance and spare parts information, you can find comprehensive answers here. If you don't find what you're looking for, don't hesitate to contact us—we'd be happy to help.

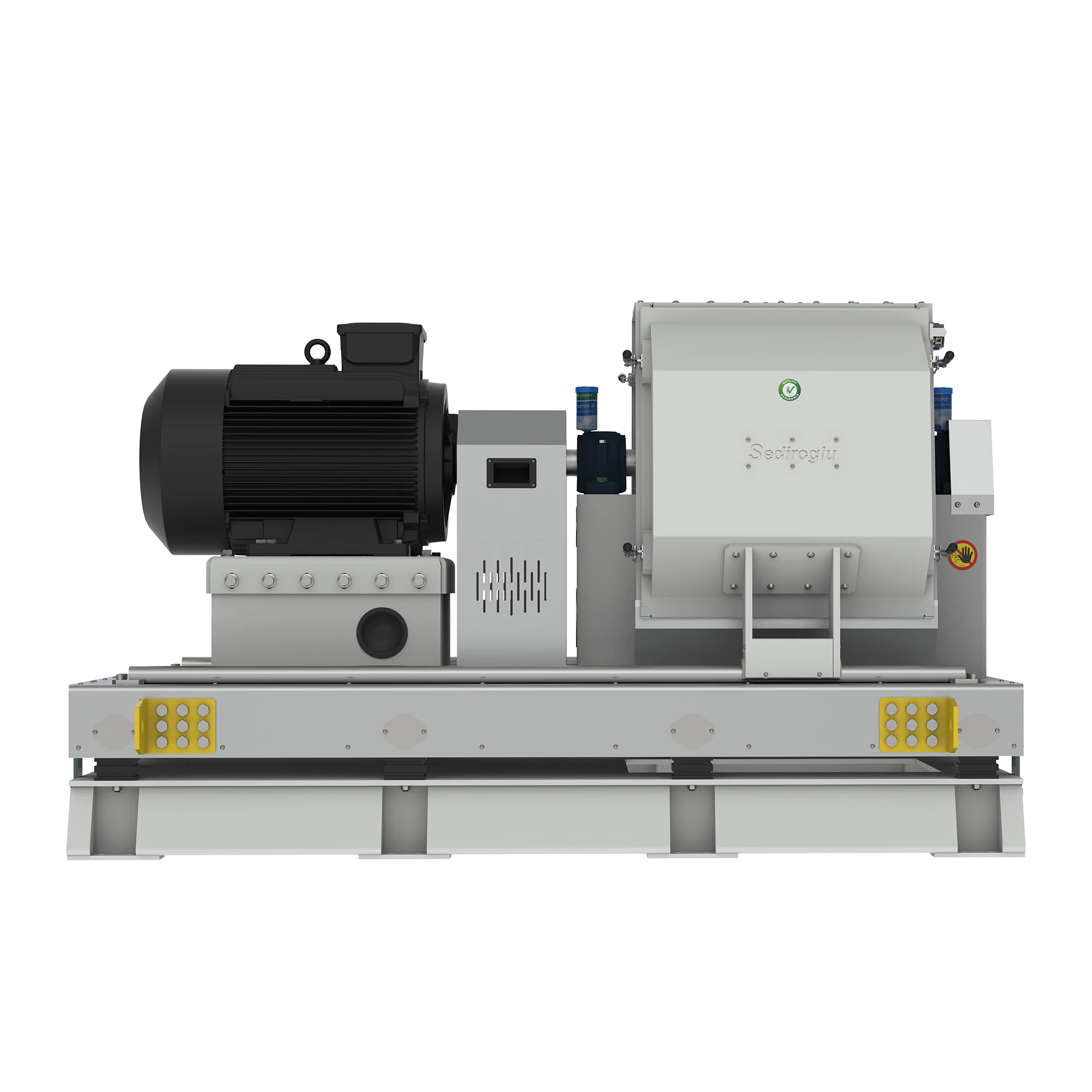

The SEDIROGLU GROUP SE-YMF 100 Feed Hammer Mill processes corn, wheat, barley, sorghum, rice bran, soybean meal, sunflower meal, oilseed cakes, DDGS, poultry feed ingredients, cattle feed mixtures, fish feed raw materials and biomass-based agricultural by-products. It efficiently reduces materials up to 60 mm edge length with bulk density between 0.2–0.8 kg/dm³ into a controlled particle range of 0.4–1.0 mm, ensuring uniform grinding performance worldwide.
The SE-YMF 100 reduces raw materials up to 60 mm into a final particle size range of 0.4–1.0 mm (400–1000 microns). The adjustable hammer-to-screen clearance and optimized rotor tip speed allow flexible fineness control depending on feed formulation requirements. This ensures consistent particle distribution, improved feed digestibility, and stable pelleting performance in modern feed production lines.

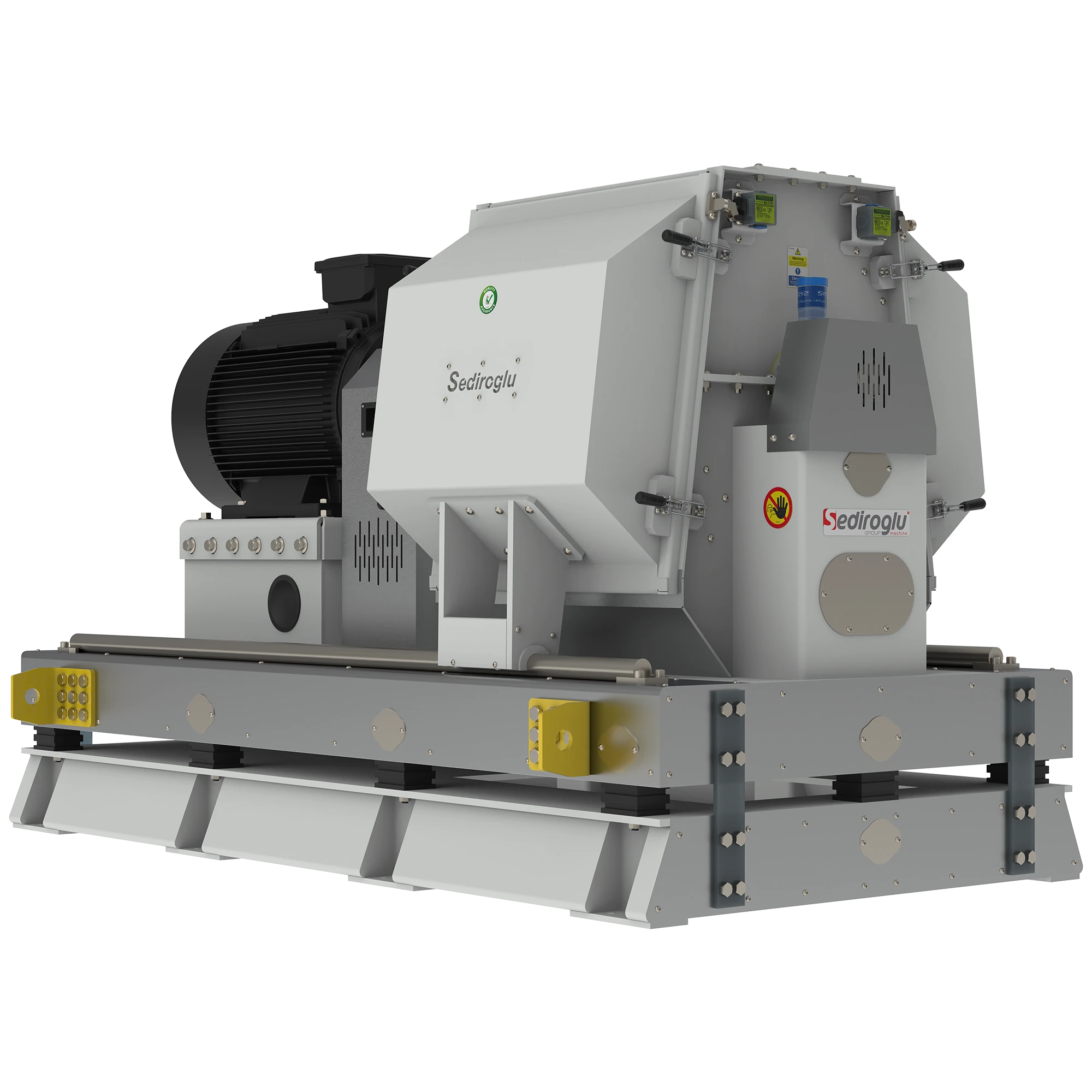

SEDIROGLU GROUP designed the SE-YMF 100 with large sliding access doors positioned at ergonomic height, allowing operators quick access to the grinding chamber. The tool-free quick screen exchange system enables replacement within minutes. The optimized hammer distribution layout ensures faster wear part replacement, reducing production stoppage and increasing operational efficiency in continuous feed mills.

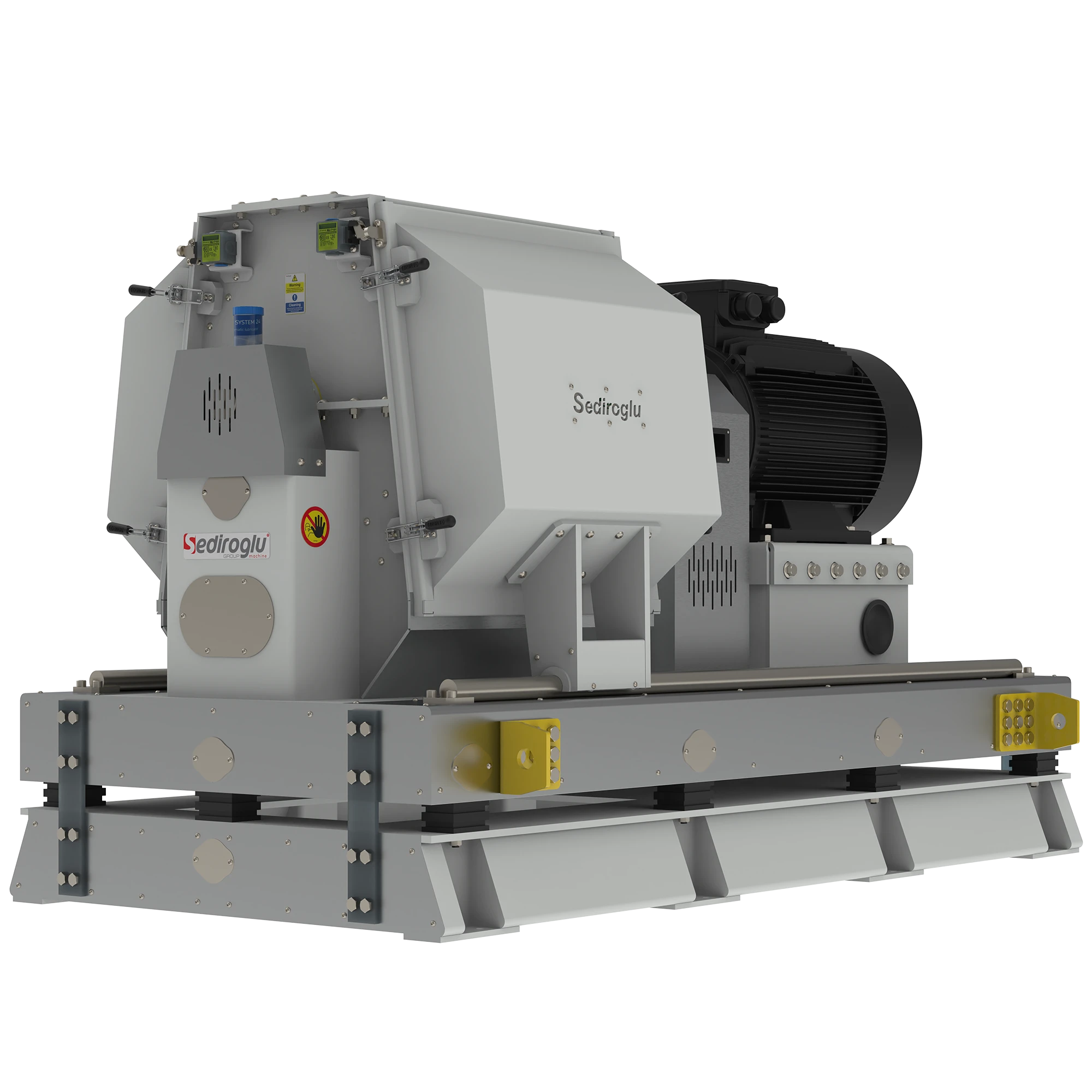

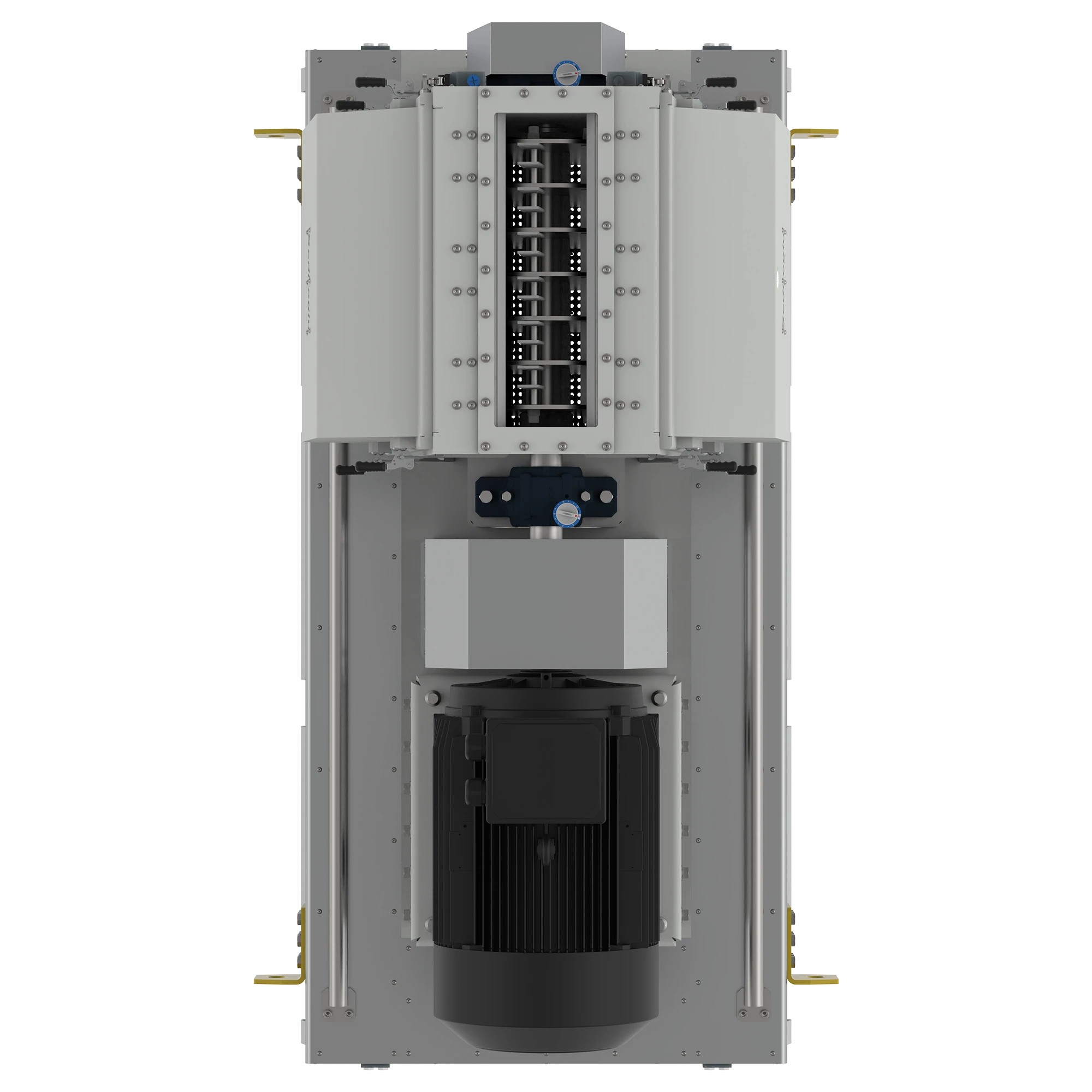

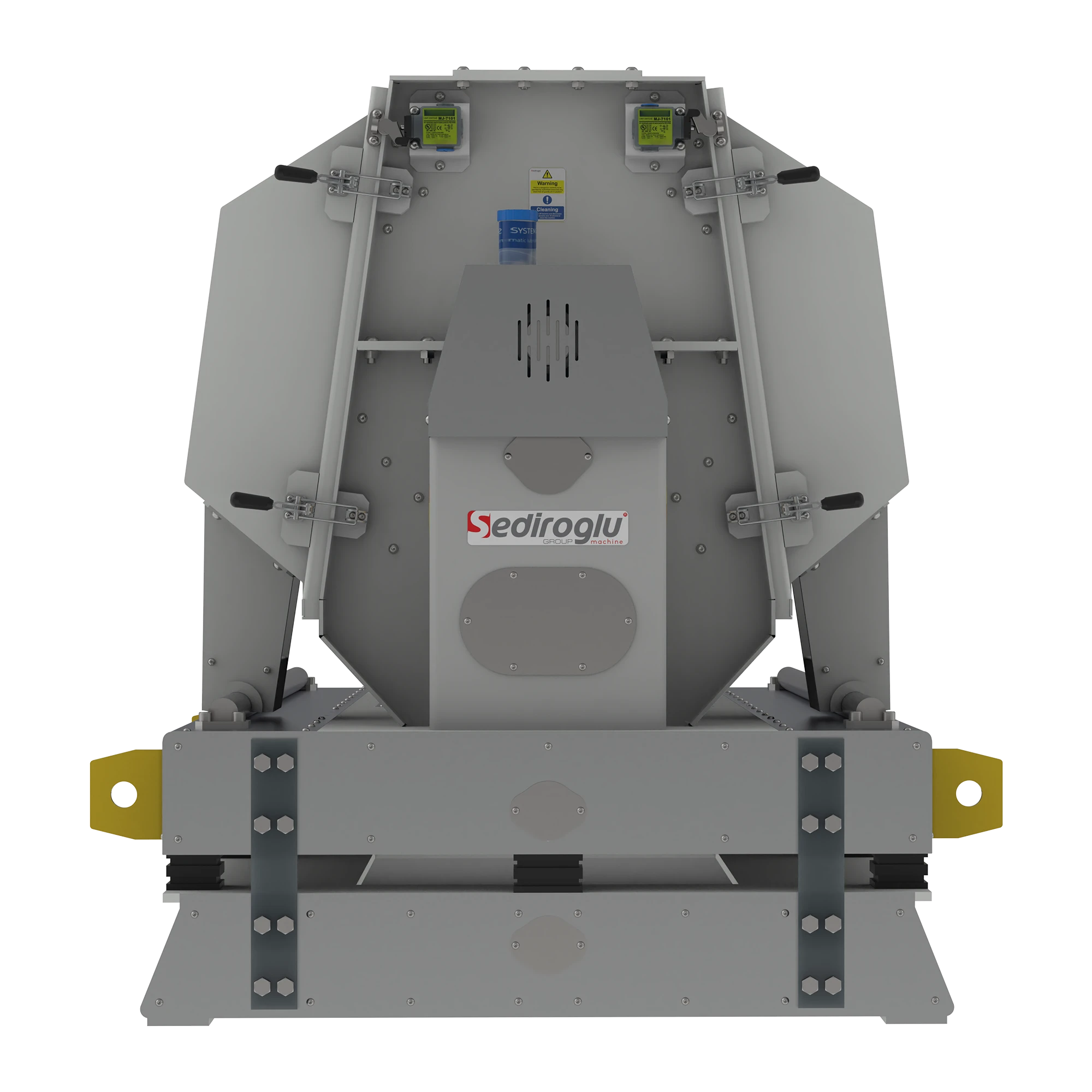

The large diameter rotor with optimized hammer tip speed maximizes material contact while maintaining balanced load distribution. The electro-pneumatic rotary deflection plate improves material flow control, preventing unnecessary circulation inside the chamber. Under nominal load, the machine operates between 90–93 dBA, providing low noise performance while maintaining high grinding efficiency and stable industrial output.

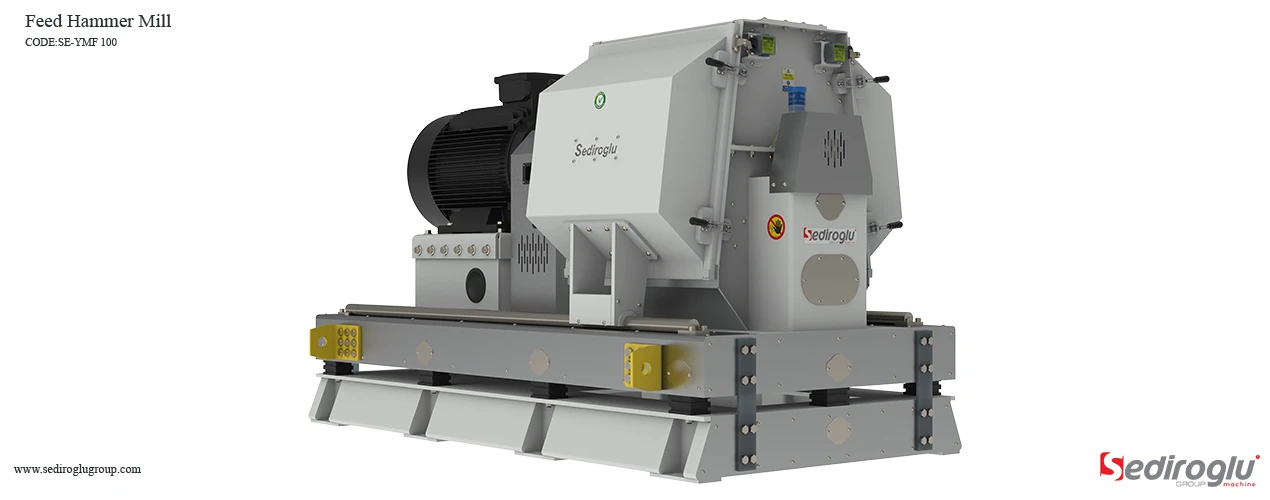

Watch the Video to Learn More About Our Machine’s Features
SE-YMF 100
We strongly recommend watching our detailed demo video, which helps you evaluate not only the technical specifications but also the machine’s real-life working principle, its influence on product flow, the technological advantages that enhance process efficiency, the practical ease it provides in terms of maintenance and operation, its durability level, and the overall value it will add to your production line before making your purchasing decision.
