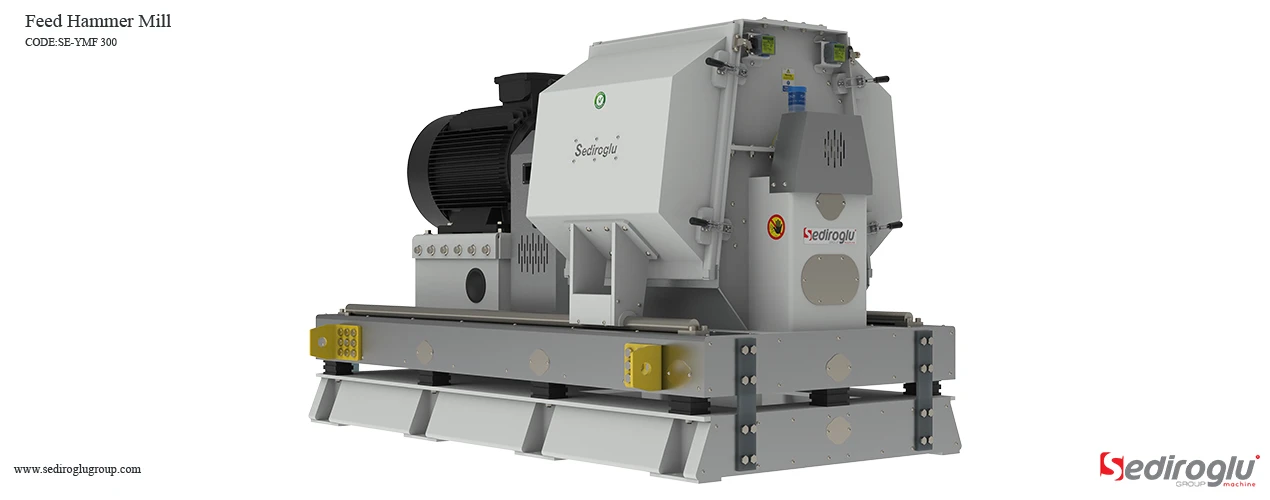

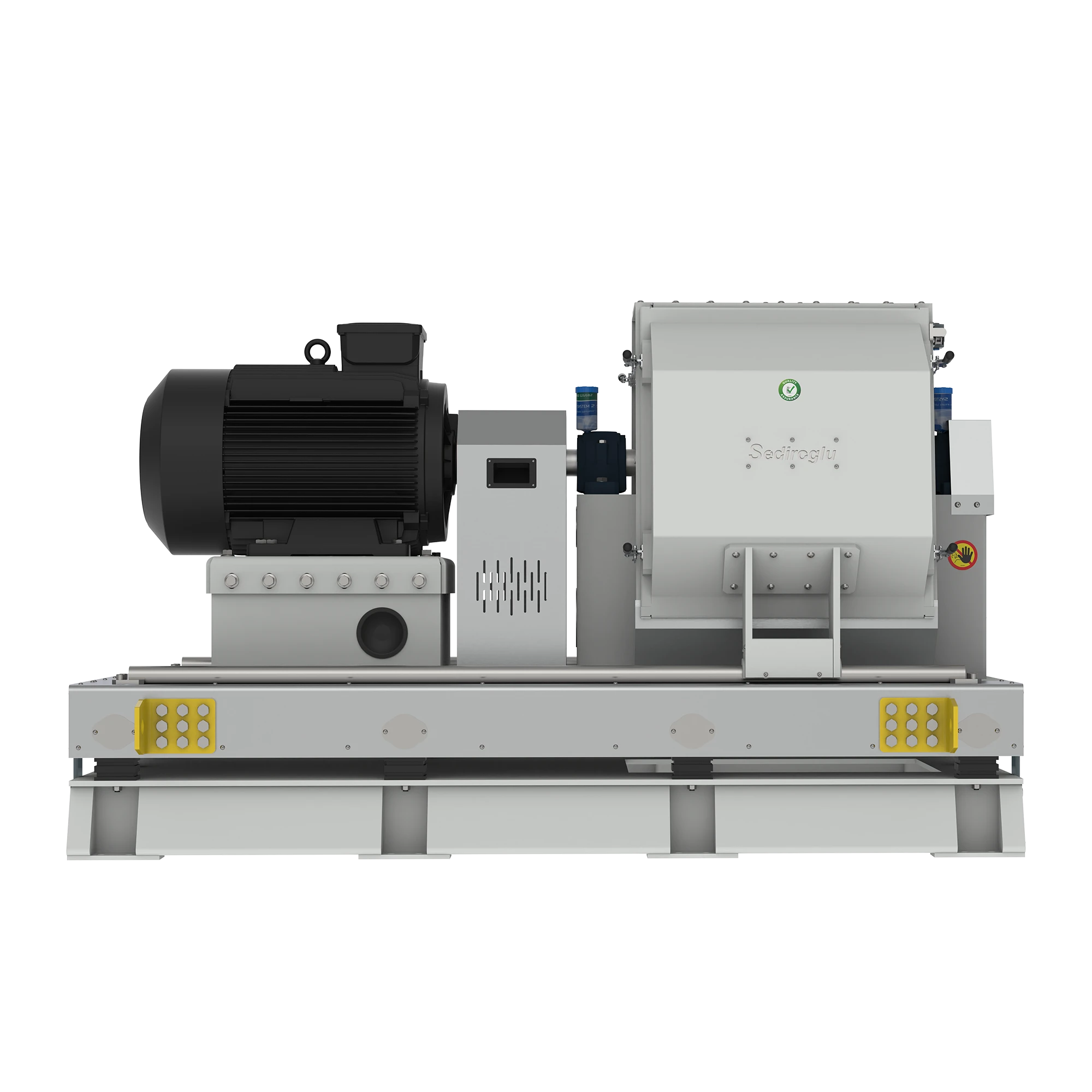

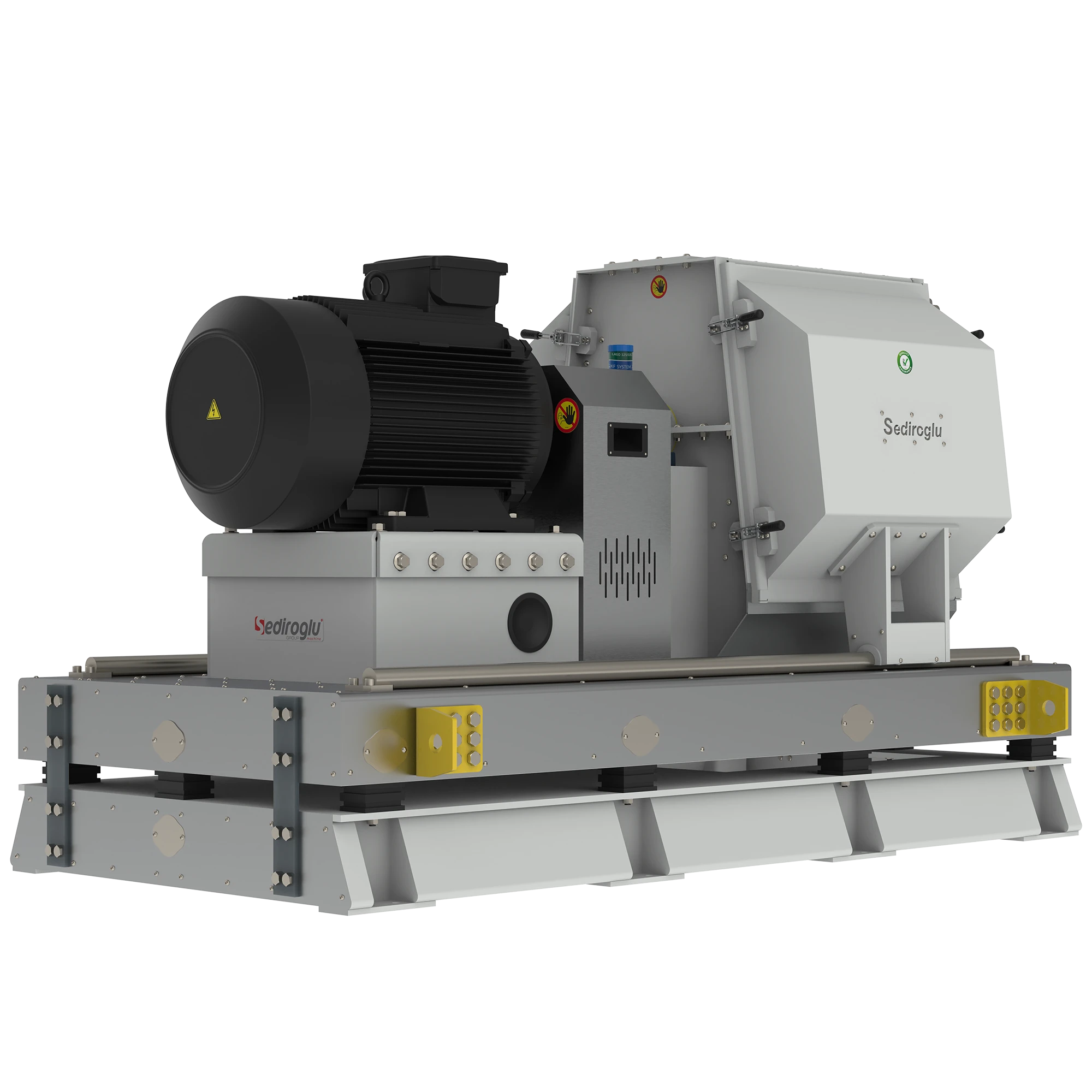

Feed Hammer Mill 30 Ton per Hour

SE-YMF 300 – Feed Hammer Mill 30 Ton/h | SEDIROGLU GROUP

The SEDIROGLU GROUP SE-YMF 300 Feed Hammer Mill is a high-capacity, precision-engineered solution for large-scale feed production plants. With a production capacity of up to 30 tons per hour, it efficiently processes a wide range of raw materials including corn, wheat, barley, sorghum, rice bran, soybean meal, sunflower meal, rapeseed cake, DDGS, compound feed mixtures, poultry and livestock feed, aquafeed ingredients, and biomass by-products. Raw materials up to 60 mm edge length are reduced into a uniform particle size range of 0.4–1.0 mm, ensuring consistent feed quality, improved digestibility, and optimized pelleting performance.

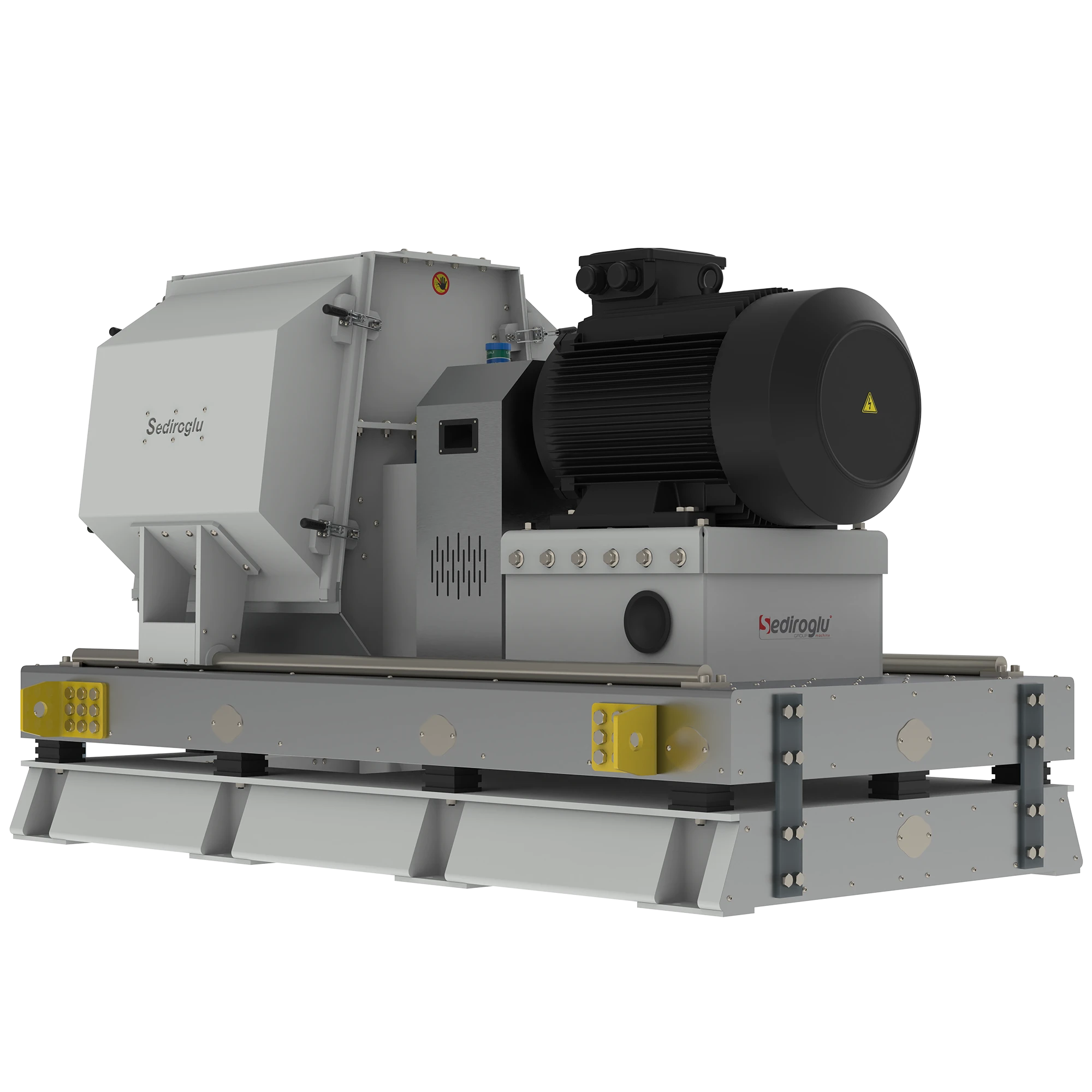

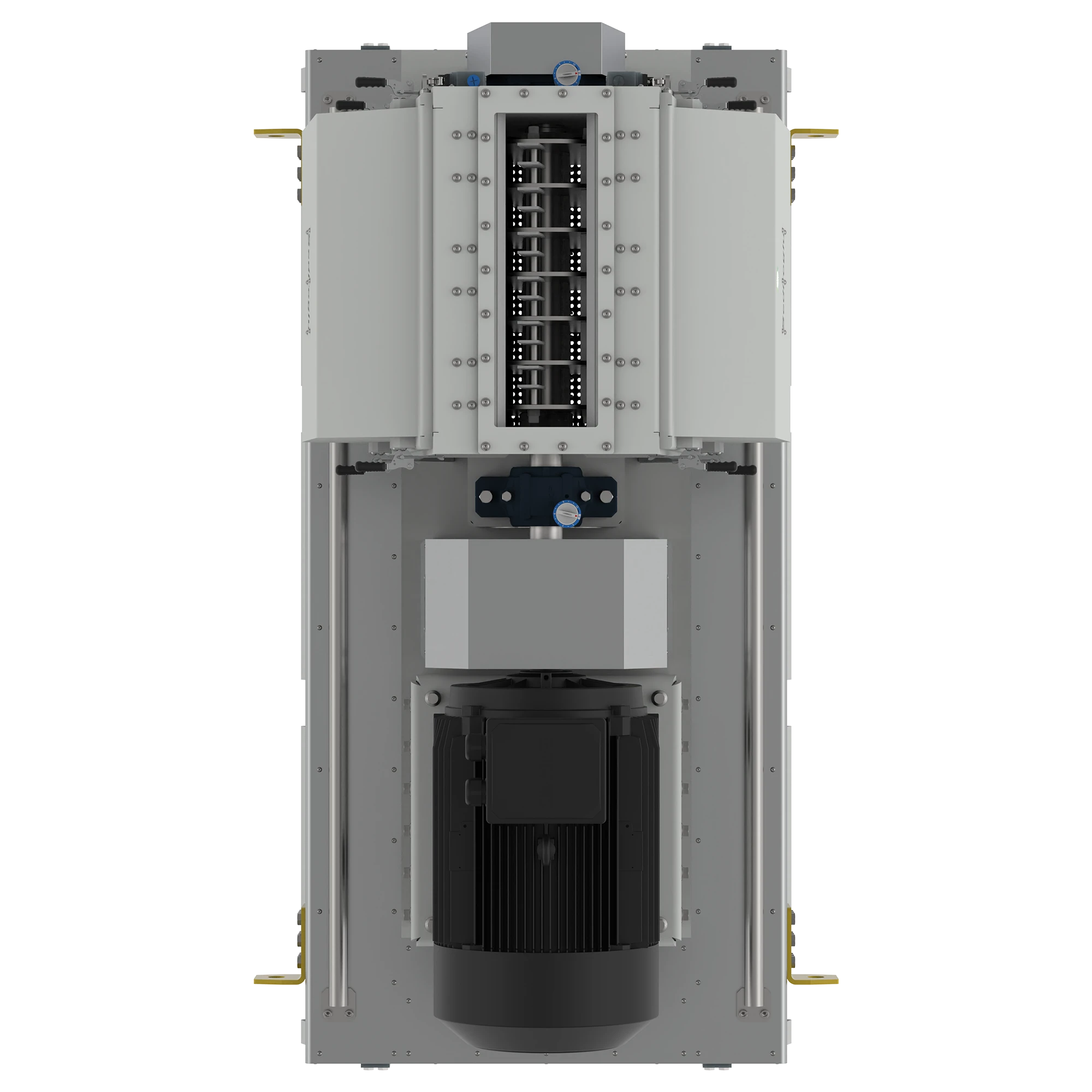

The SE-YMF 300 incorporates a multi-chamber crushing system to balance rotor load and increase impact frequency, maximizing grinding efficiency. Its stationary hammer structure breaks circulation layers inside the chamber, preventing uneven particle distribution and over-grinding. Adjustable hammer-to-screen clearance allows operators to control particle fineness for different feed formulations, making it suitable for both coarse grinding and fine processing for pet food or aquafeed.

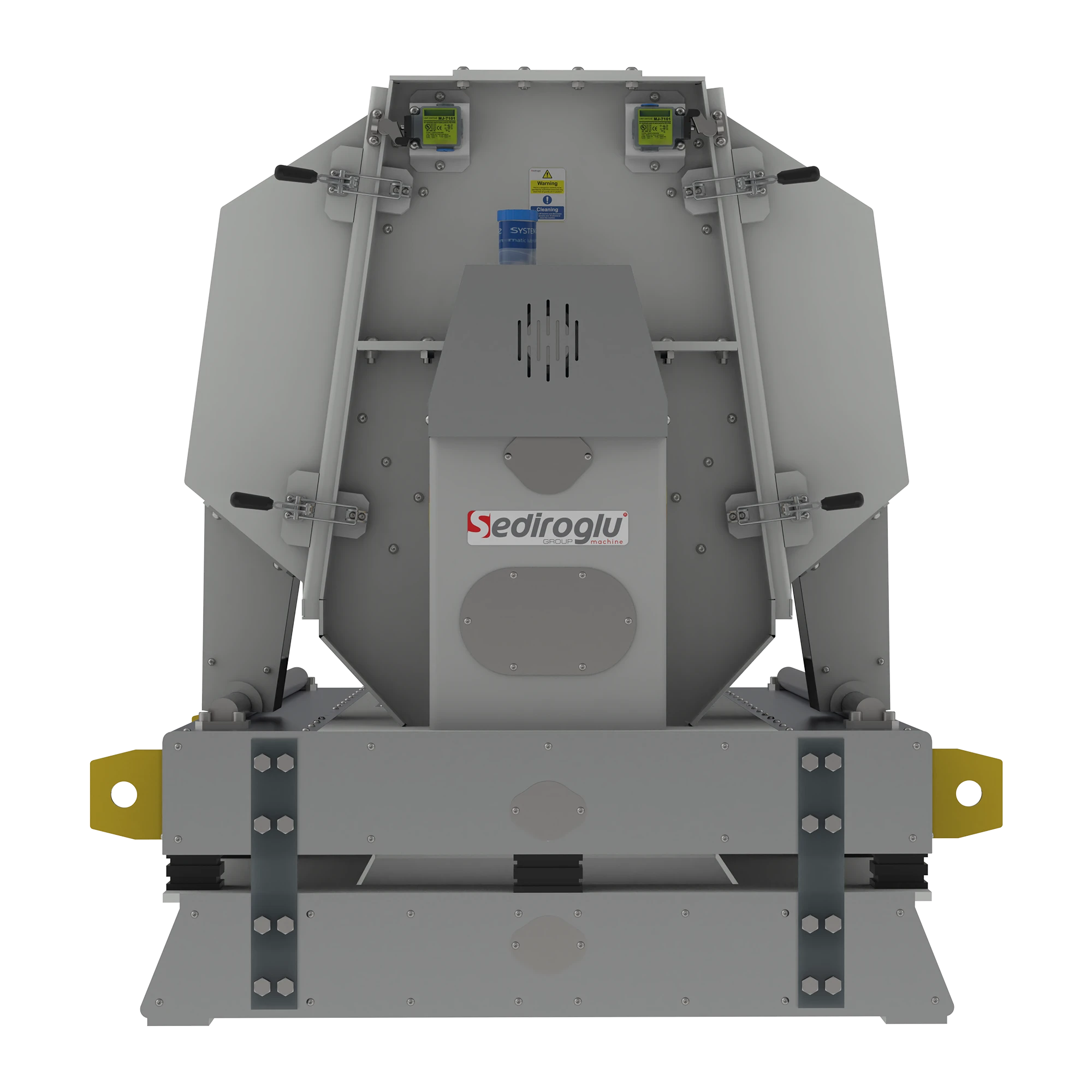

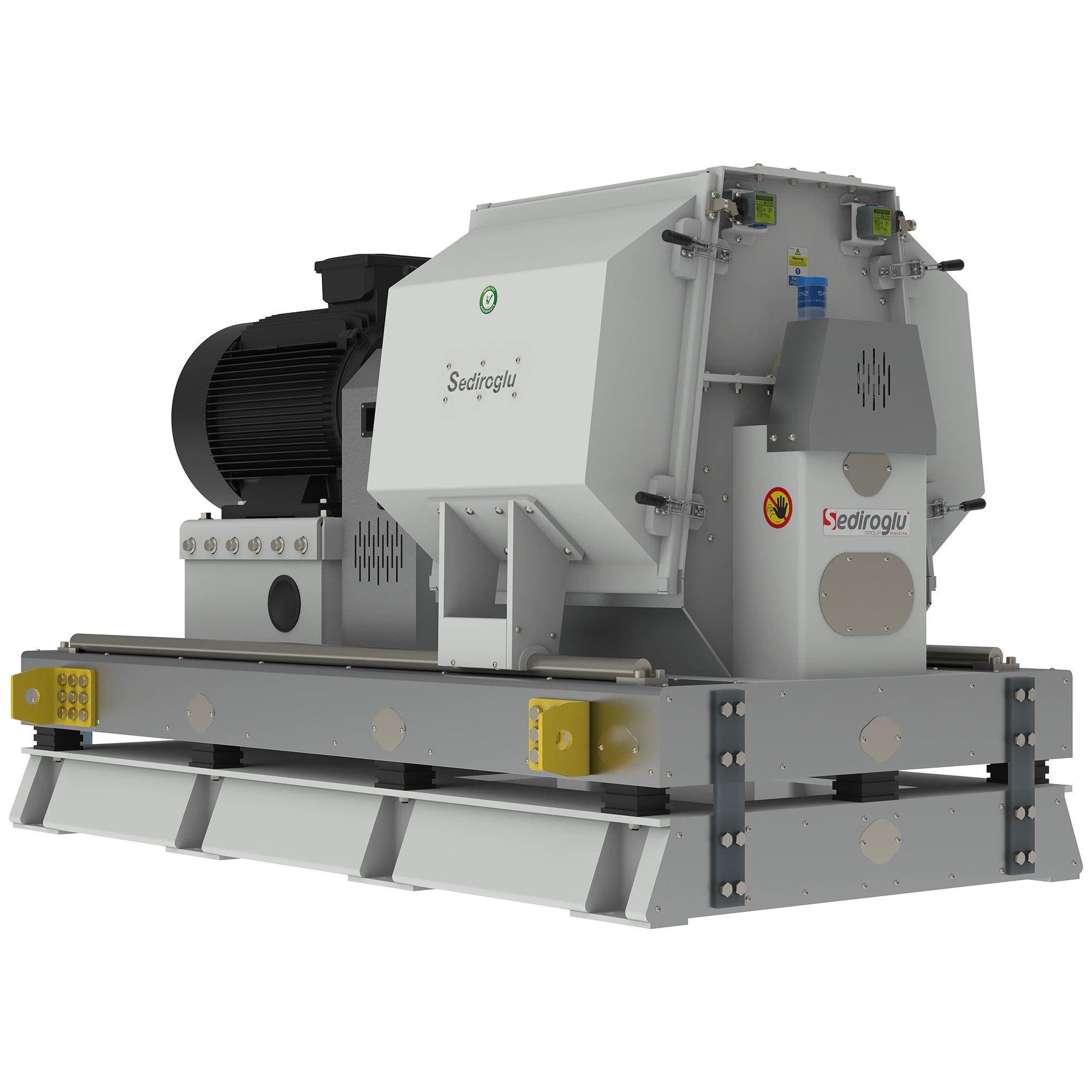

For operational efficiency, the mill features large sliding maintenance doors at an ergonomically optimized height, allowing quick and safe access to the grinding chamber. The tool-free quick screen replacement system minimizes downtime during maintenance. Reversible rotor operation ensures even wear of hammers and screens, extending service life. Operating at a low noise level of 90–93 dBA, it provides a comfortable, low-vibration working environment for continuous industrial feed production.

Weekly Maintenance:

• Inspect rotor and hammer condition for wear.
• Check hammer-to-screen clearance and adjust as needed.
• Lubricate bearings and moving components using recommended oils or greases.

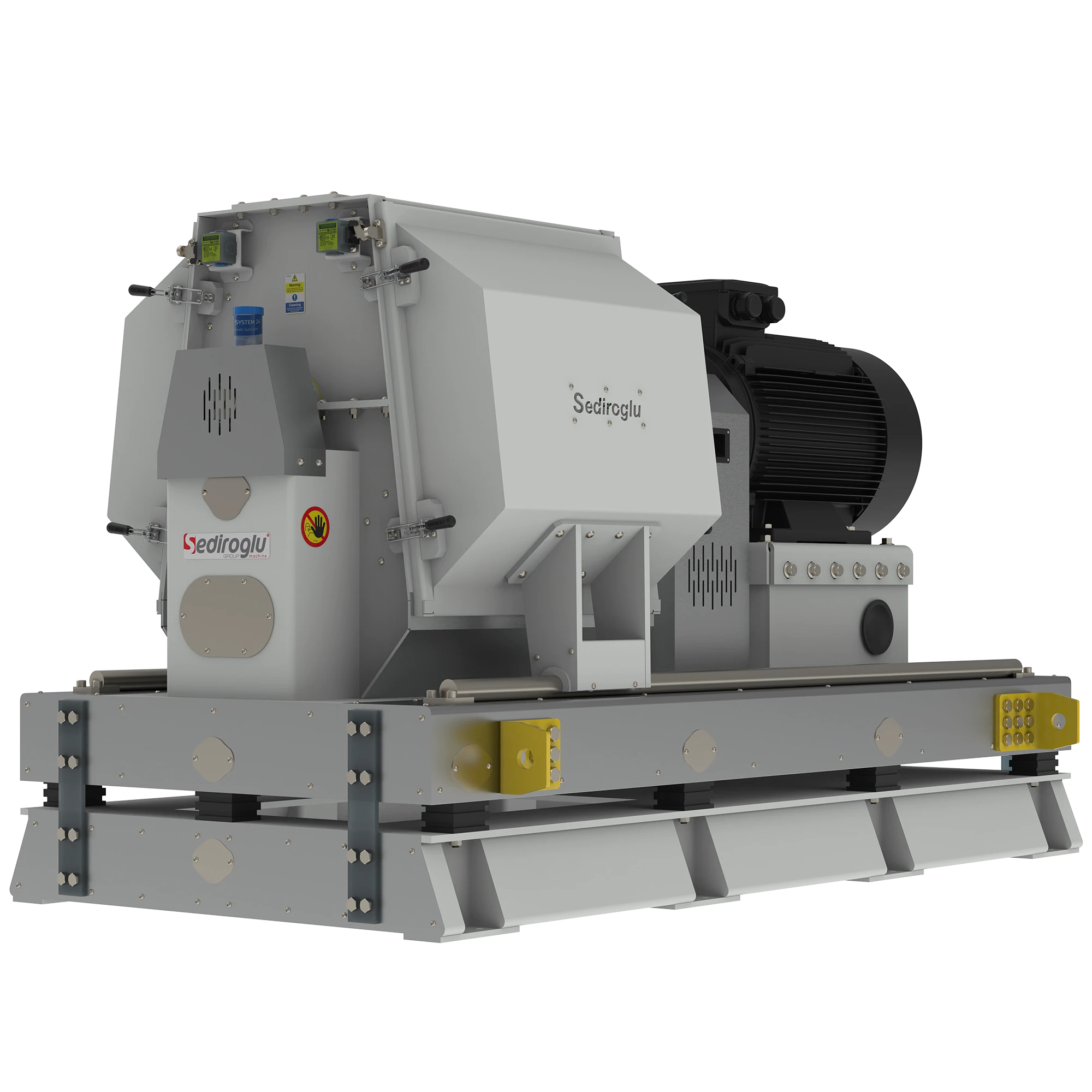

• Inspect electro-pneumatic rotary deflection plate for proper operation.

Monthly Maintenance:

• Replace worn hammers and check alignment of all hammer assemblies.
• Inspect motor temperature and drive coupling stability.
• Check screen assembly and replace any damaged sections.
• Verify proper operation of safety switches and interlocks.

Yearly Maintenance:

• Fully disassemble and clean the grinding chamber.
• Replace all worn hammers and screens if necessary.
• Inspect rotor for balance and wear; recalibrate if needed.
• Perform full lubrication and mechanical inspection of all moving parts.

Advantages and Benefits:

• High-capacity grinding up to 30 tons per hour with uniform 0.4–1.0 mm particle size.
• Multi-chamber and stationary hammer design ensures consistent particle distribution and reduced circulation.
• Tool-free screen replacement and ergonomic maintenance access minimize downtime.
• Low noise and vibration operation improves worker safety and comfort.
• Optimized rotor tip speed and energy-efficient design maximize throughput while minimizing operational costs.
• Durable construction with HARDOX 550  hammer tips ensures long-term reliability and minimal wear.

Applications:

• Coarse grinding of grains and feed for poultry, livestock, and aquaculture.
• Fine grinding for pet food, fish feed, and aquafeed production.
• Processing of oilseed meals, DDGS, and biomass for feed manufacturing.
• Grinding agricultural by-products to enhance feed utilization and nutrient availability.

The SE-YMF 300 Feed Hammer Mill from SEDIROGLU GROUP combines innovative engineering, durability, and operational efficiency to deliver a high-capacity, low-maintenance grinding solution. Its features guarantee uniform particle size, minimal downtime, and superior feed quality, making it an essential machine for modern industrial feed production facilities worldwide.
