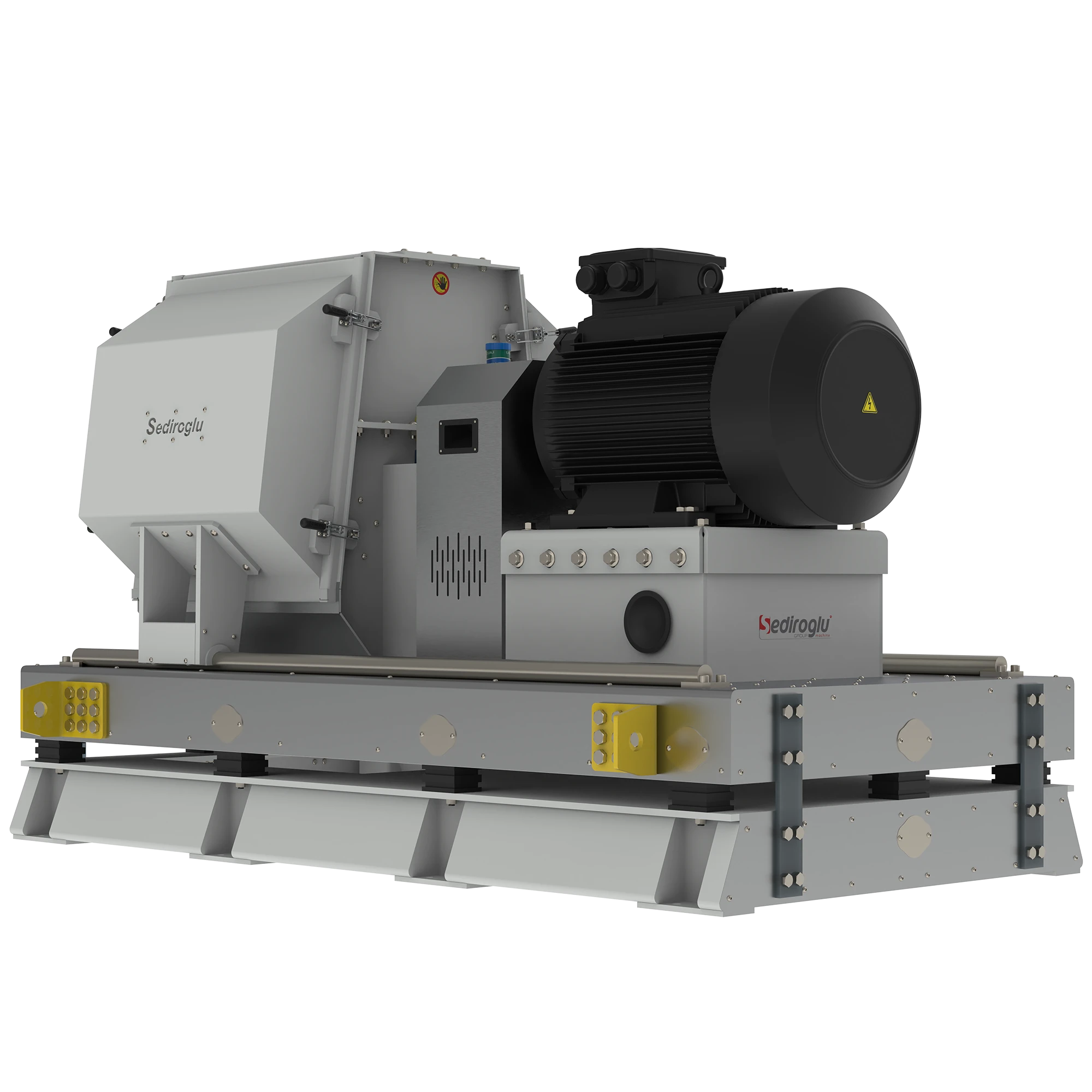

Feed Hammer Mill 25 Ton per Hour

SE-YMF 250 – Feed Hammer Mill 25 Ton/h | SEDIROGLU GROUP

The SEDIROGLU GROUP SE-YMF 250 Feed Hammer Mill is engineered for high-capacity, precise, and efficient grinding in large-scale feed production facilities. With a production capacity of up to 25 tons per hour, it is capable of processing a wide variety of raw materials including corn, wheat, barley, sorghum, rice bran, soybean meal, sunflower meal, rapeseed cake, DDGS, compound feed mixtures, poultry and livestock feed, aquafeed ingredients, and biomass by-products. The mill handles raw materials up to 60 mm edge length and reduces them into a uniform particle size range of 0.4–1.0 mm, ensuring consistent feed quality, improved digestibility, and optimized pelleting performance.

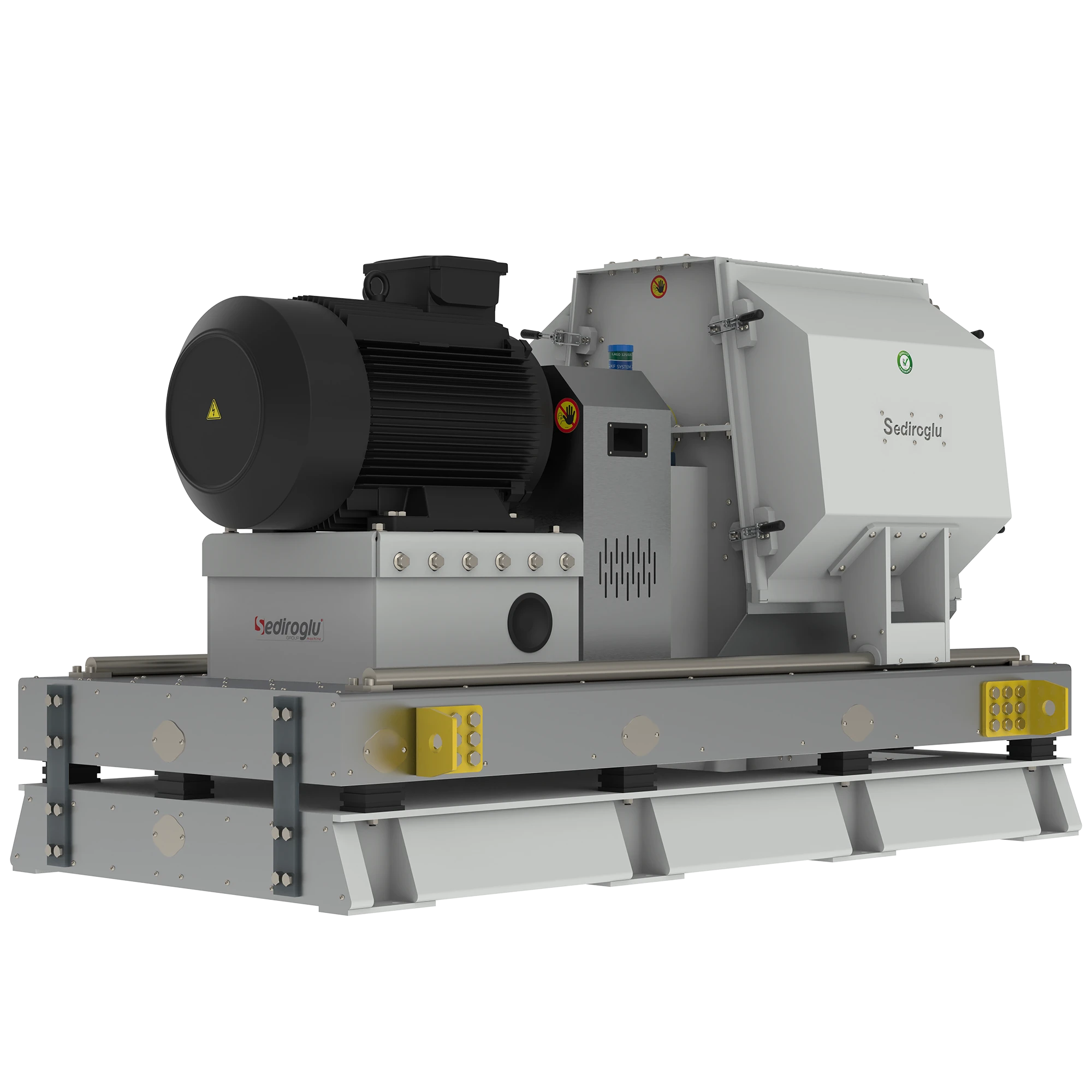

The SE-YMF 250 incorporates a multi-chamber crushing system, which balances rotor load and increases impact frequency to maximize grinding efficiency. The stationary hammer design breaks circulation layers inside the chamber, preventing over-grinding and uneven particle distribution. Adjustable hammer-to-screen clearance allows precise control over particle fineness, making it suitable for various feed formulations, from coarse grinding to fine processing for pet food and aquafeed.

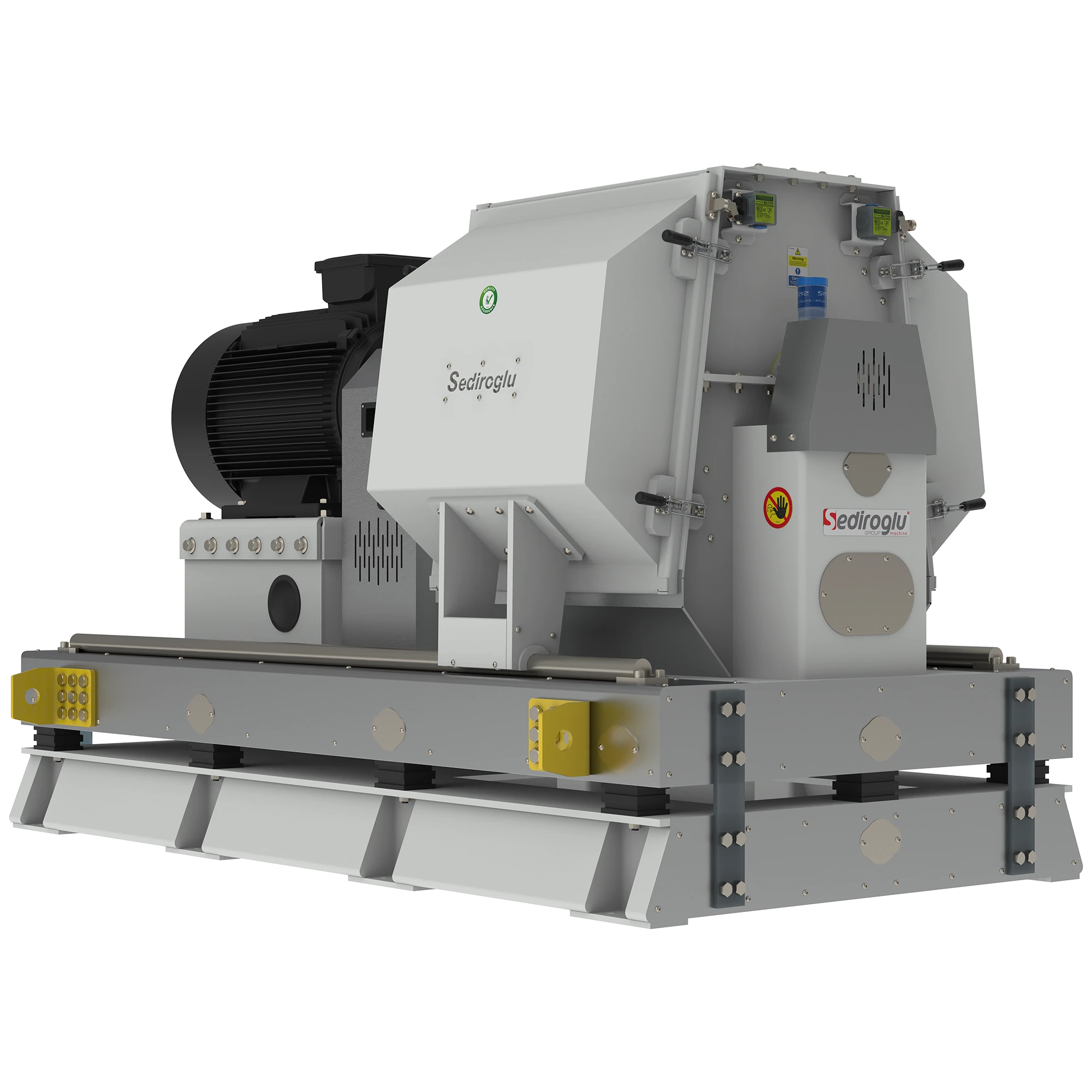

Designed for operational efficiency, the mill features large sliding service doors at an ergonomically optimized height, ensuring safe and easy access to the grinding chamber. The tool-free quick screen replacement system reduces downtime during maintenance, while the reversible rotor operation ensures even wear of hammers and screens, extending service life. Operating at a low noise level of 90–93 dBA, it provides a comfortable, low-vibration working environment for continuous industrial feed production.

Weekly Maintenance:

• Inspect rotor and hammer condition for signs of wear.
• Check hammer-to-screen clearance and adjust if needed.
• Lubricate bearings and moving parts with recommended oil or grease.

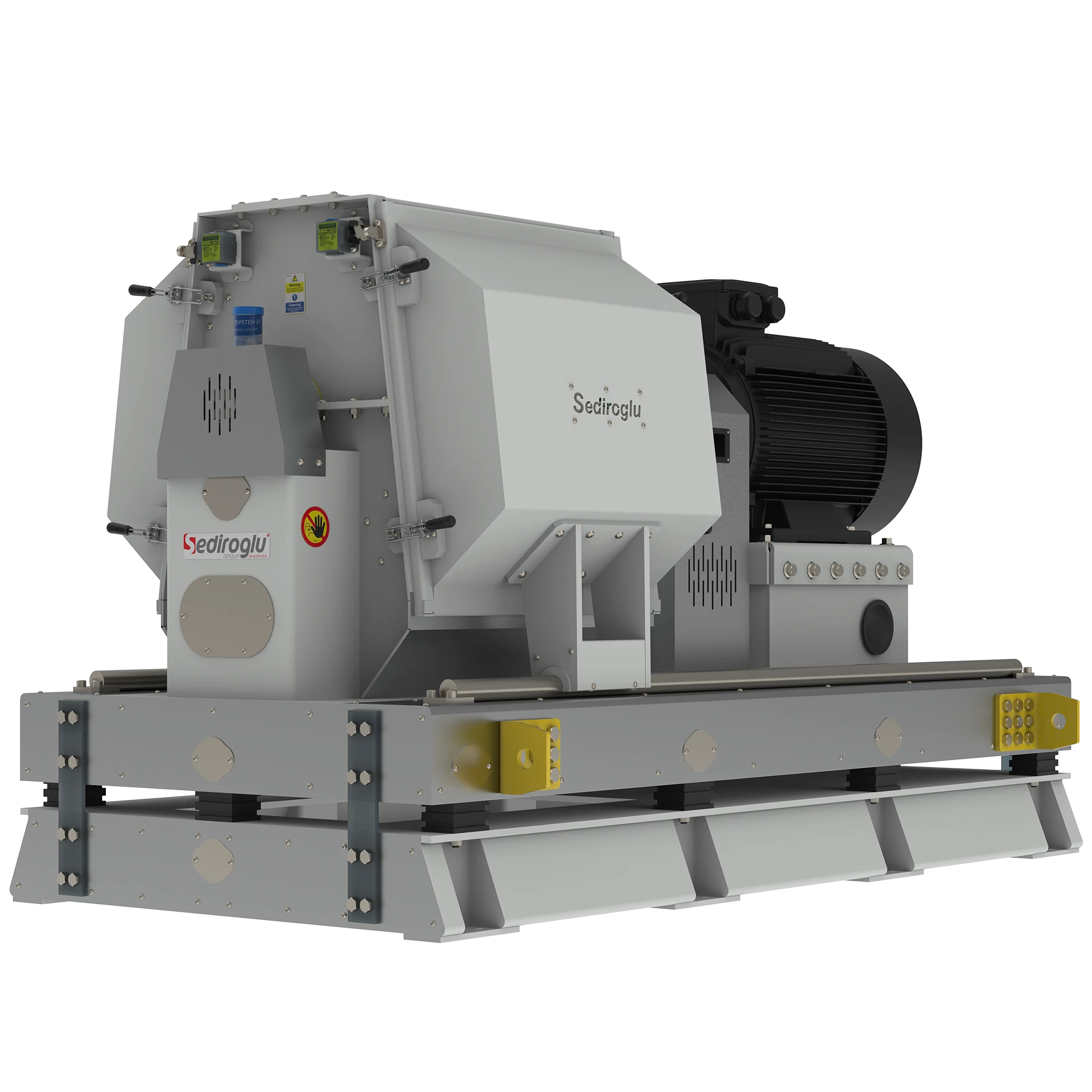

• Inspect the electro-pneumatic deflection system for correct function.

Monthly Maintenance:

• Replace worn hammers and check hammer alignment.
• Inspect motor temperature and drive coupling stability.
• Check screen assembly and replace any damaged screens.
• Verify proper operation of safety switches and door interlocks.

Yearly Maintenance:

• Complete disassembly and cleaning of the grinding chamber.
• Replace all worn hammers and screens if necessary.
• Inspect rotor for balance and wear, recalibrating if required.
• Perform full lubrication and mechanical inspection of all moving parts.

Advantages and Benefits:

• Efficiently processes raw materials up to 60 mm into uniform 0.4–1.0 mm particles.
• Multi-chamber and stationary hammer design ensure consistent particle distribution.
• Tool-free screen replacement and ergonomic maintenance access reduce downtime.
• Low noise and vibration operation improves workplace safety and comfort.
• High energy efficiency with optimized rotor speed maximizes throughput and minimizes operational costs.
• Durable construction with HARDOX 550  hammer tips extends service life and reliability.

Applications:

• Coarse grinding of grains and feed for poultry, livestock, and aquaculture.
• Fine grinding for pet food, fish feed, and aquafeed production.
• Processing of oilseed meals, DDGS, and biomass for feed manufacturing.
• Grinding agricultural by-products to enhance feed utilization and nutritional value.

The SE-YMF 250 Feed Hammer Mill by SEDIROGLU GROUP combines high-capacity design, operational efficiency, and durability to deliver a reliable, low-maintenance grinding solution. Its features guarantee uniform particle size, minimal downtime, and superior feed quality, making it an indispensable machine for modern large-scale feed production facilities worldwide.
