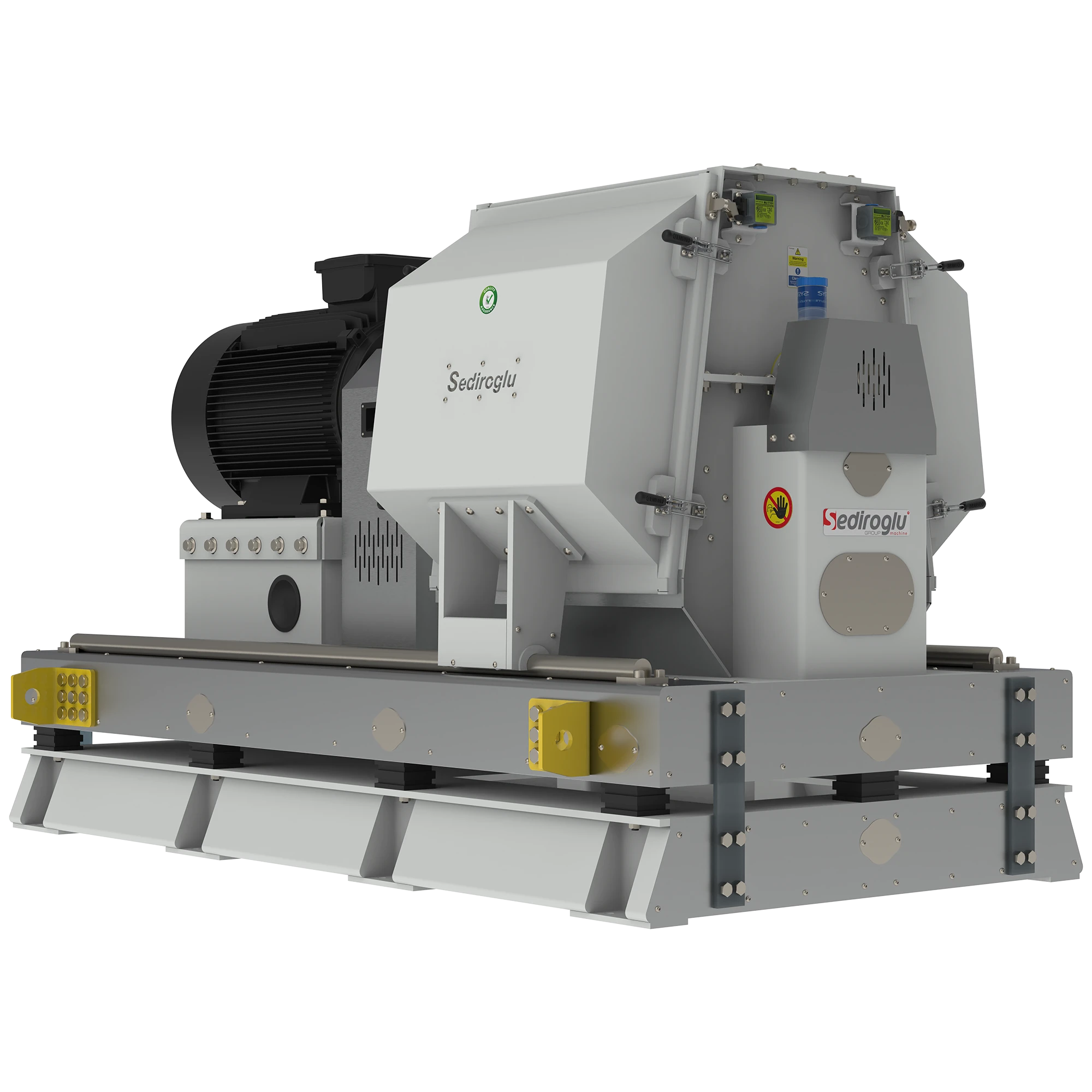

Feed Hammer Mill 15 Ton per Hour

SE-YMF 150 – Feed Hammer Mill 15 Ton/h | SEDIROGLU GROUP

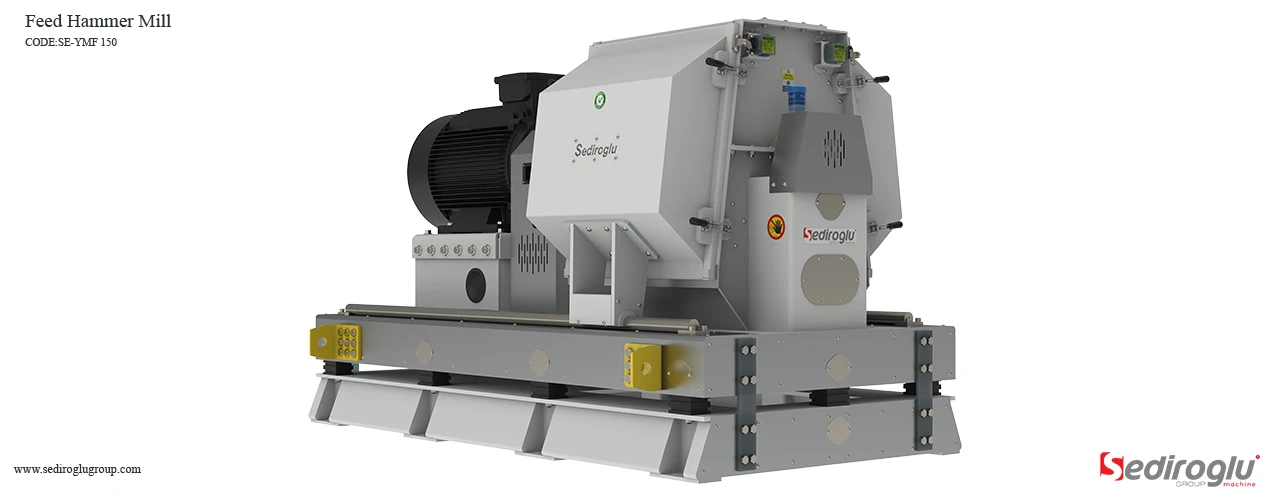

The SEDIROGLU GROUP SE-YMF 150 Feed Hammer Mill is a high-performance grinding solution engineered for medium to large-scale feed production facilities. With a capacity of up to 15 tons per hour, it efficiently processes a wide variety of raw materials including corn, wheat, barley, sorghum, rice bran, soybean meal, sunflower meal, rapeseed cake, DDGS, poultry and livestock feed mixtures, aquafeed ingredients, and biomass by-products. It handles raw materials up to 60 mm edge length and reduces them to a uniform particle size range of 0.4–1.0 mm, ensuring consistent feed quality, improved digestibility, and enhanced pelleting efficiency.

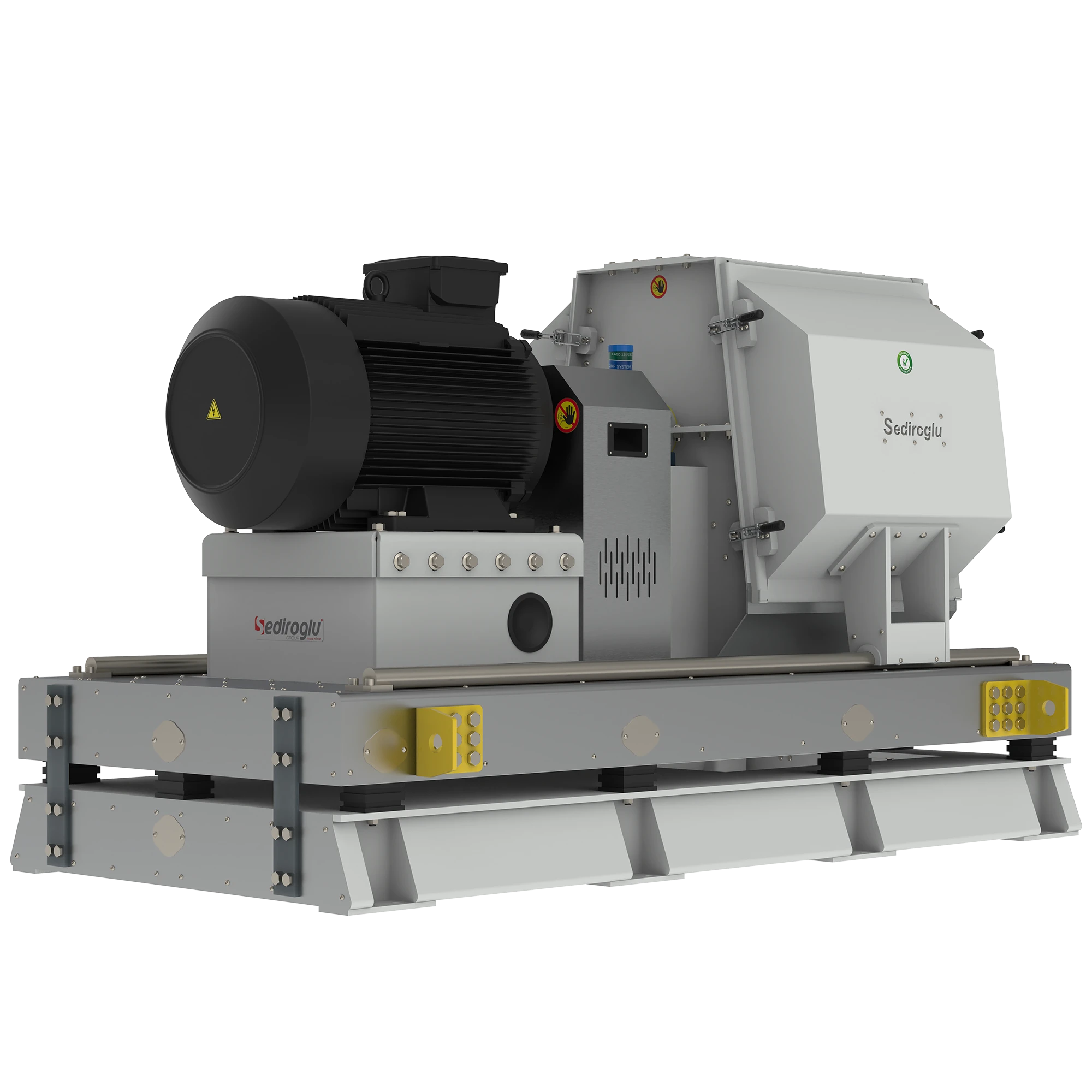

The mill features a multi-chamber crushing system that balances rotor load while increasing impact frequency for efficient particle reduction. A stationary hammer structure breaks circulation layers inside the grinding chamber, preventing uneven particle distribution. The adjustable hammer-to-screen clearance allows operators to control the final particle size according to different feed formulation requirements, making it ideal for both coarse and fine grinding applications.

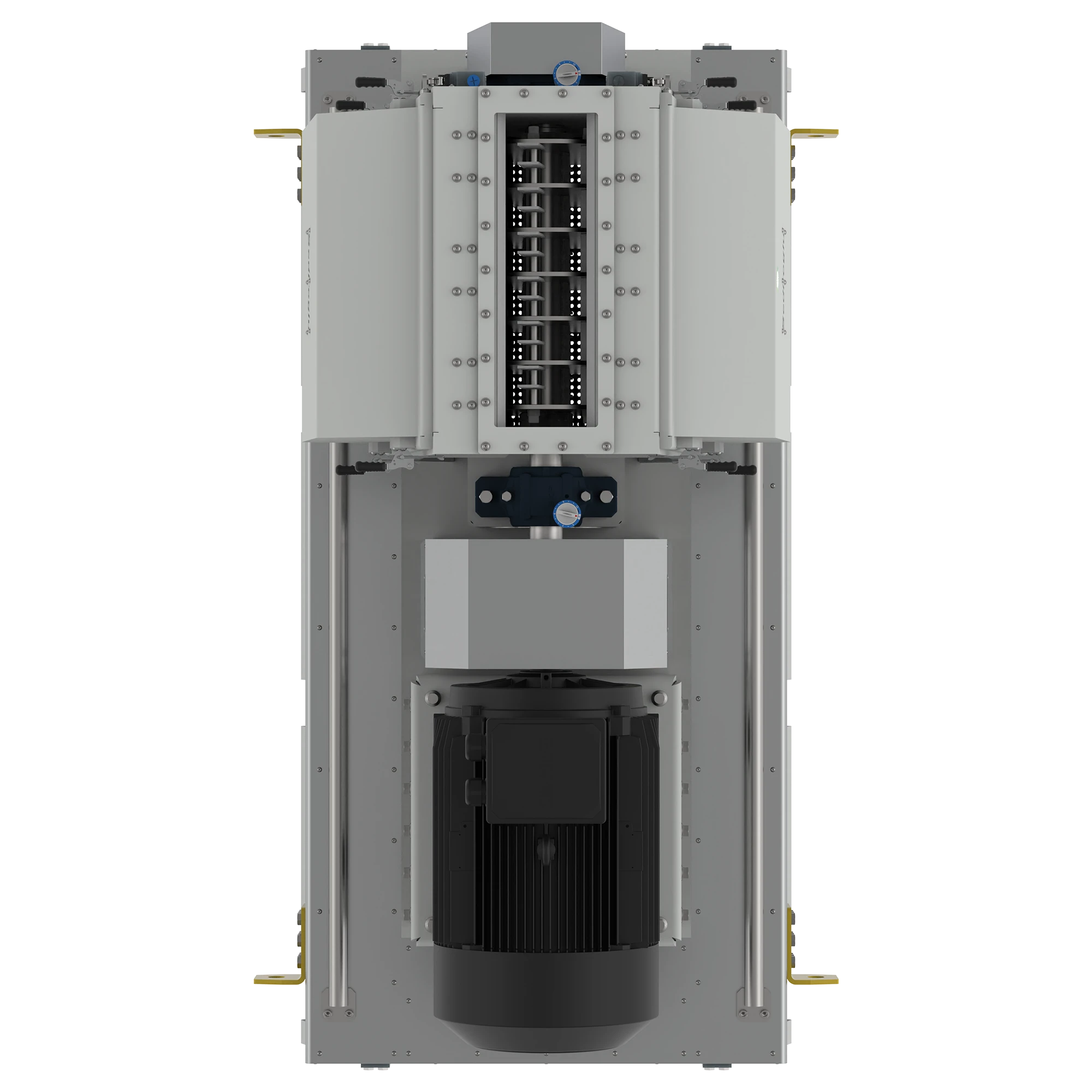

Designed for operational efficiency, the SE-YMF 150 includes large sliding service doors positioned at an ergonomically optimized height, allowing easy and safe access for maintenance. The tool-free quick screen exchange system reduces downtime during routine operations. Reversible rotor operation ensures even wear of hammers and screens, prolonging component lifespan. Operating at 90–93 dBA, the mill provides a low-noise, low-vibration environment suitable for modern industrial feed production.

Weekly Maintenance:

• Inspect rotor and hammer condition for signs of wear.
• Check hammer-to-screen clearance and adjust if necessary.
• Lubricate bearings and moving parts with recommended oil or grease.
• Inspect electro-pneumatic deflection plate for proper function.

Monthly Maintenance:

• Replace worn hammers and check hammer alignment.
• Inspect motor temperature and drive coupling for stability.
• Check screen assembly and replace any damaged sections.
• Verify safety switches and interlocks are functioning properly.

Yearly Maintenance:

• Fully disassemble and clean the grinding chamber.
• Replace worn hammers and screens completely if necessary.
• Inspect rotor for balance and wear, recalibrating as needed.
• Perform complete lubrication and mechanical inspection of moving parts.

Advantages and Benefits:

• Processes raw materials up to 60 mm efficiently, producing uniform 0.4–1.0 mm particle size.
• Multi-chamber and stationary hammer design ensures consistent grinding and reduced circulation.
• Tool-free screen replacement and ergonomic maintenance reduce downtime.
• Low noise and vibration operation improves workplace safety and comfort.
• High energy efficiency with optimized rotor tip speed increases throughput while reducing operational costs.
• Durable construction and HARDOX 550 hammer tips extend service life, ensuring long-term reliability.

Applications:

• Coarse grinding of grains and feed materials for poultry, cattle, and aquaculture.
• Fine grinding for pet food and specialized fish feed production.
• Processing of oilseed meals, DDGS, and biomass for feed industry applications.
• Grinding agricultural by-products to enhance feed utilization and nutritional value.

The SE-YMF 150 Feed Hammer Mill from SEDIROGLU GROUP combines innovative engineering, operational efficiency, and durability to deliver a high-capacity grinding solution. Its design ensures uniform particle size, minimal downtime, and superior feed quality, making it an essential machine for modern feed manufacturing plants worldwide.
