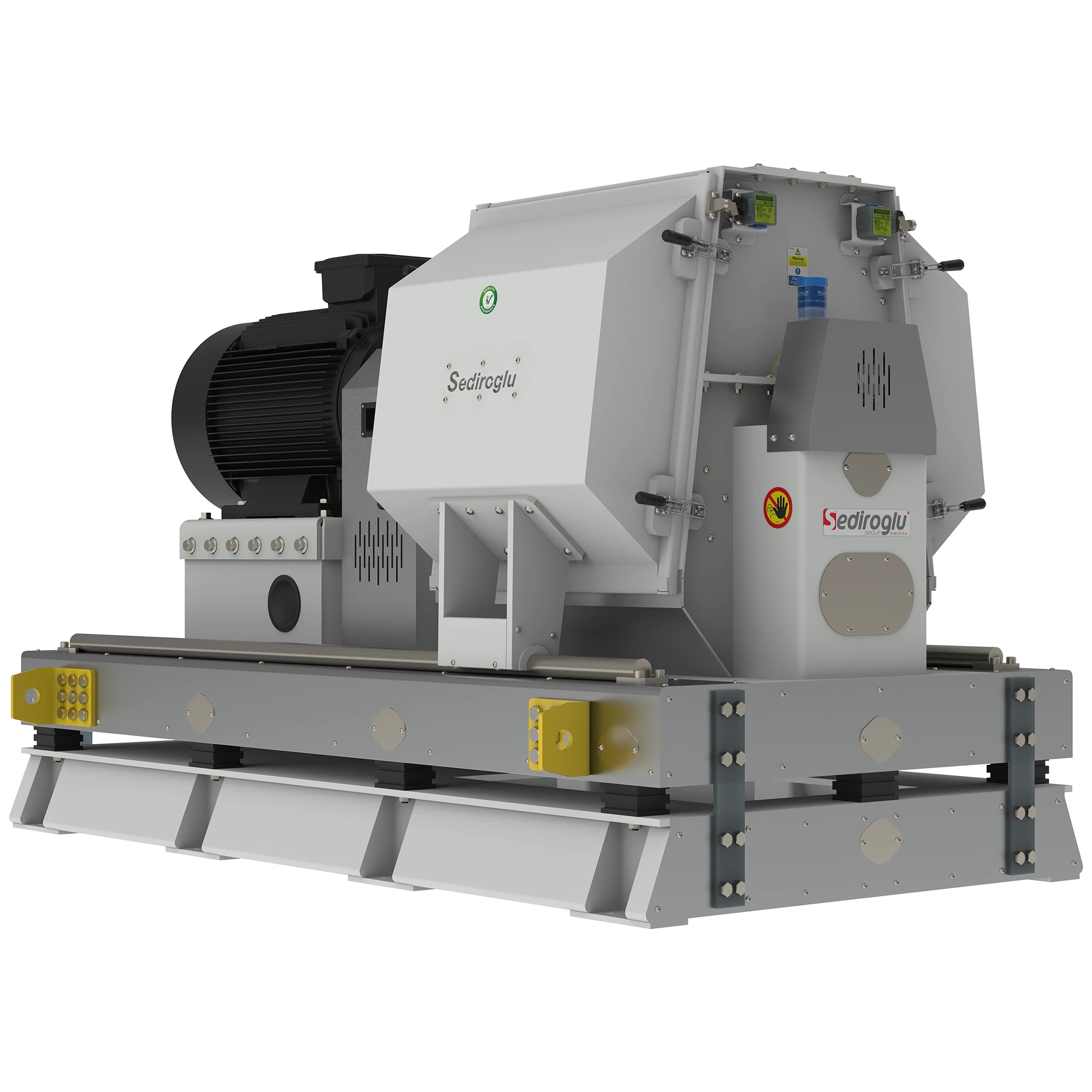

Feed Hammer Mill 20 Ton per Hour

SE-YMF 200 – Feed Hammer Mill 20 Ton/h | SEDIROGLU GROUP

The SEDIROGLU GROUP SE-YMF 200 Feed Hammer Mill is engineered to provide high-capacity, precise, and efficient grinding for large-scale feed production plants. With a production capacity of up to 20 tons per hour, it is capable of processing a broad range of raw materials including corn, wheat, barley, sorghum, rice bran, soybean meal, sunflower meal, rapeseed cake, DDGS, compound feed mixtures, poultry and livestock feed, aquafeed ingredients, and biomass by-products. It handles raw materials up to 60 mm edge length and reduces them into a controlled particle size range of 0.4–1.0 mm, ensuring uniformity, improved digestibility, and optimal pelleting performance.

The SE-YMF 200 features a multi-chamber crushing system that balances rotor load while increasing material impact frequency for efficient size reduction. The stationary hammer structure breaks internal circulation layers, preventing over-grinding and uneven particle distribution. Adjustable hammer-to-screen clearance allows for precise control over particle fineness, enabling operators to customize the output according to feed formulation requirements.

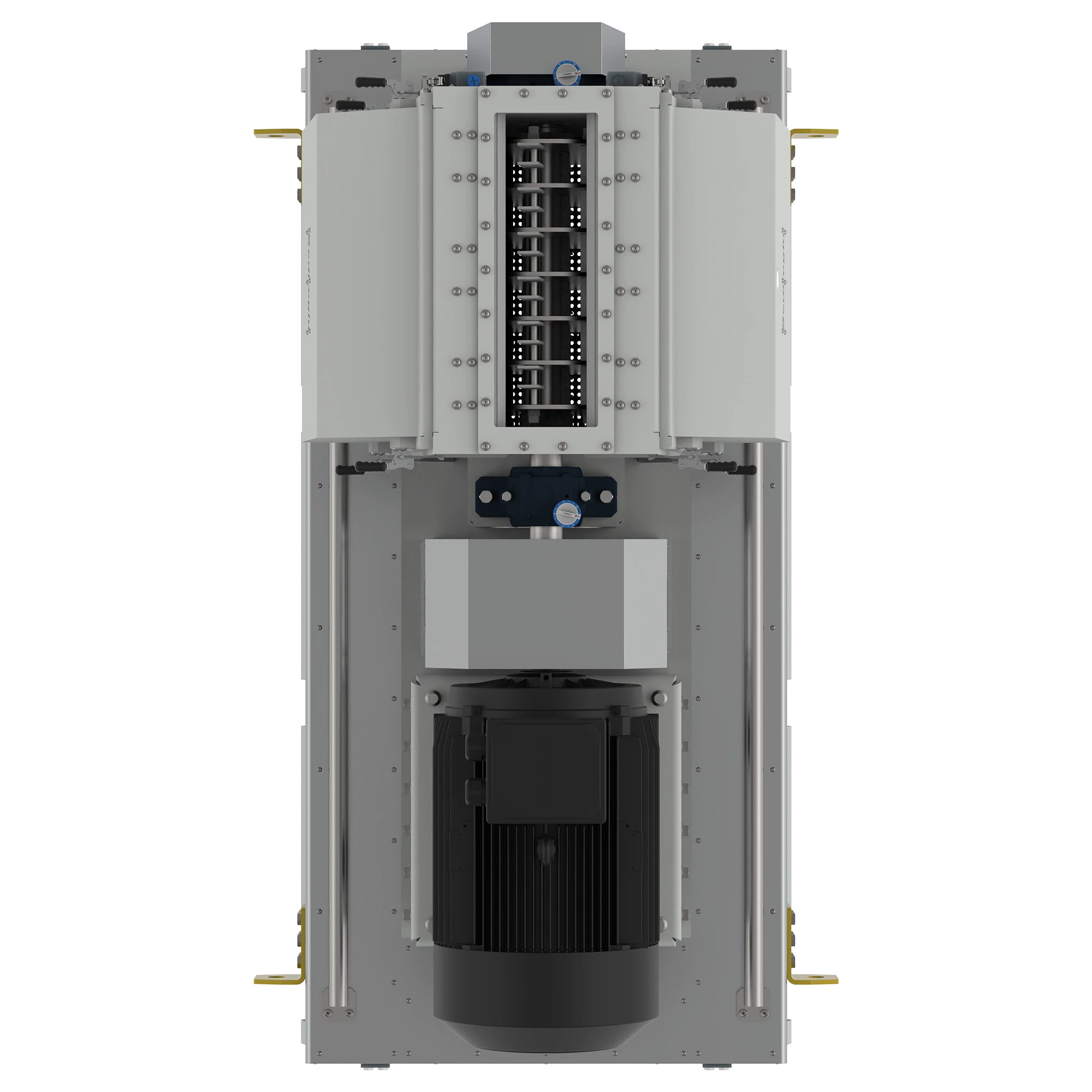

Designed for maximum operational efficiency, the mill includes large sliding service doors at an ergonomically optimized height, allowing quick and safe access to the grinding chamber. The tool-free quick screen replacement system minimizes downtime during maintenance, and reversible rotor operation ensures even wear on hammers and screens, extending component service life. Operating at a low noise level of 90–93 dBA, it offers a low-vibration, safe, and comfortable work environment suitable for continuous feed production.

Weekly Maintenance:

• Inspect rotor and hammer condition for wear and tear.
• Check hammer-to-screen clearance and adjust if necessary.
• Lubricate all bearings and moving components using recommended oils or greases.
• Inspect the electro-pneumatic rotary deflection system for correct operation.

Monthly Maintenance:

• Replace worn hammers and check alignment of all hammer assemblies.
• Inspect motor temperature and ensure drive coupling is secure.
• Check screen assembly for damage and replace any compromised screens.
• Verify proper operation of safety switches and interlocks.

Yearly Maintenance:

• Fully disassemble and clean the grinding chamber.
• Replace all worn hammers and screens if needed.
• Inspect rotor for balance and wear; recalibrate as necessary.
• Conduct a complete lubrication and mechanical inspection of all moving parts.

Advantages and Benefits:

• High-capacity grinding up to 20 tons per hour with consistent 0.4–1.0 mm particle size.
• Multi-chamber design and stationary hammer system ensure uniform grinding and reduced circulation.
• Tool-free screen replacement and ergonomic maintenance access minimize downtime.
• Low noise and vibration operation increases worker safety and comfort.
• Optimized rotor tip speed and energy-efficient design increase throughput while lowering operational costs.
• Durable construction with HARDOXS 550 hammer tips ensures long-term reliability and minimal wear.

Applications:

• Coarse grinding for grains, cereals, and feed for poultry, livestock, and aquaculture.
• Fine grinding for pet food, specialized fish feed, and aquafeed production.
• Processing of oilseed meals, DDGS, and biomass materials.
• Grinding of agricultural by-products to enhance feed utilization and nutrient availability.

The SE-YMF 200 Feed Hammer Mill by SEDIROGLU GROUP combines innovative design, operational efficiency, and durability to deliver a high-capacity, low-maintenance grinding solution. Its features guarantee uniform particle size, minimal downtime, and superior feed quality, making it an essential machine for modern large-scale feed production facilities worldwide.
