Mono Cyclone 40

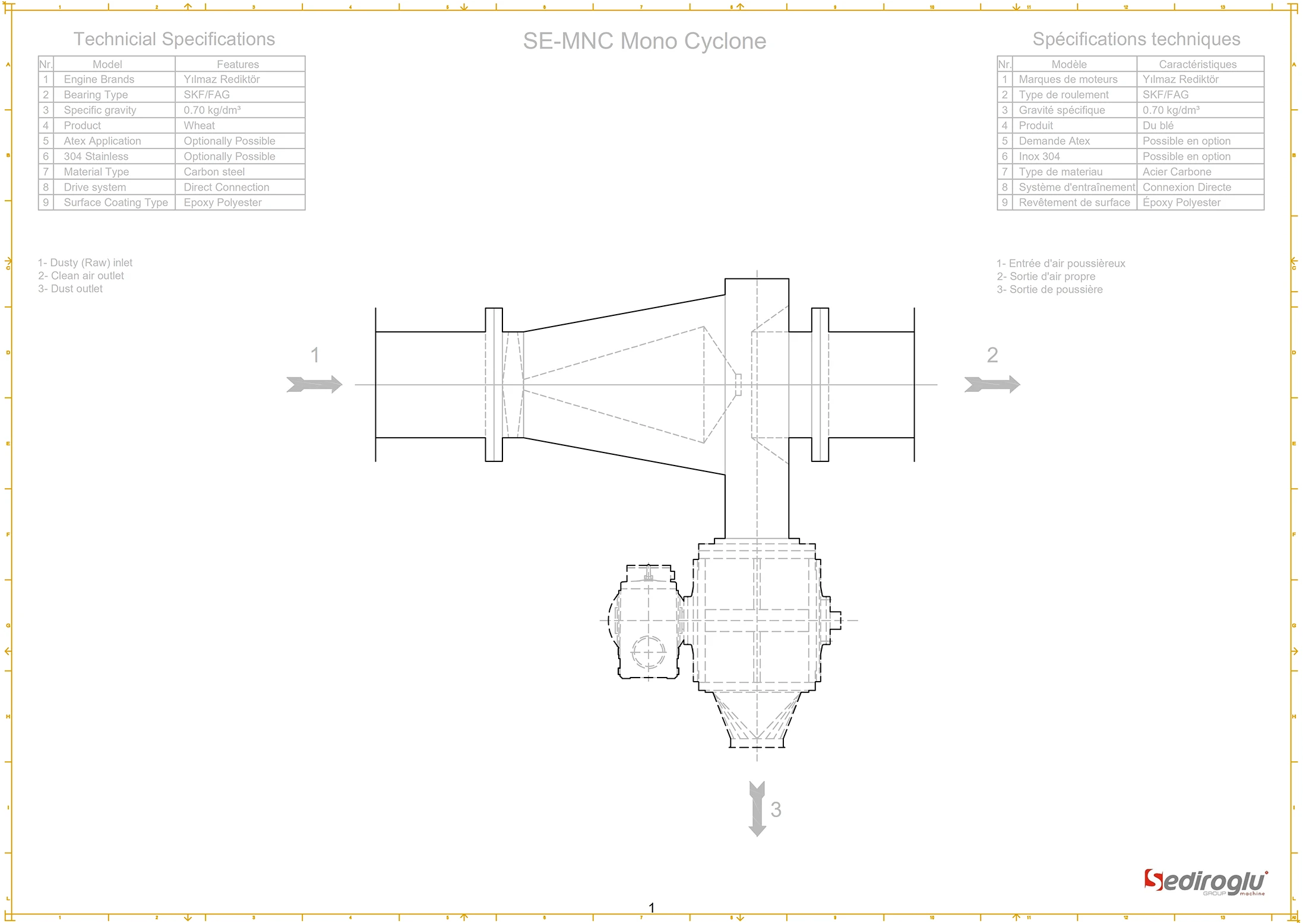

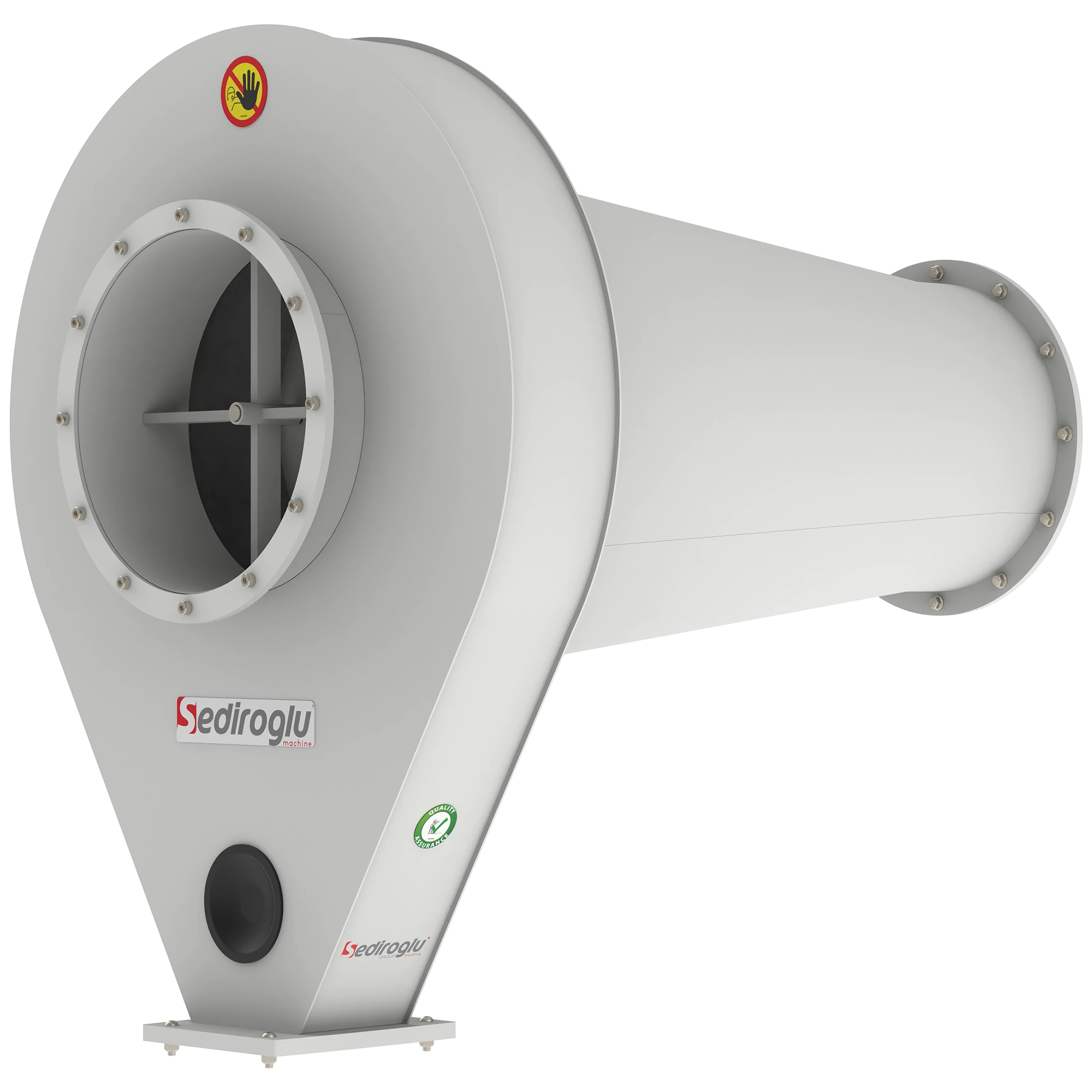

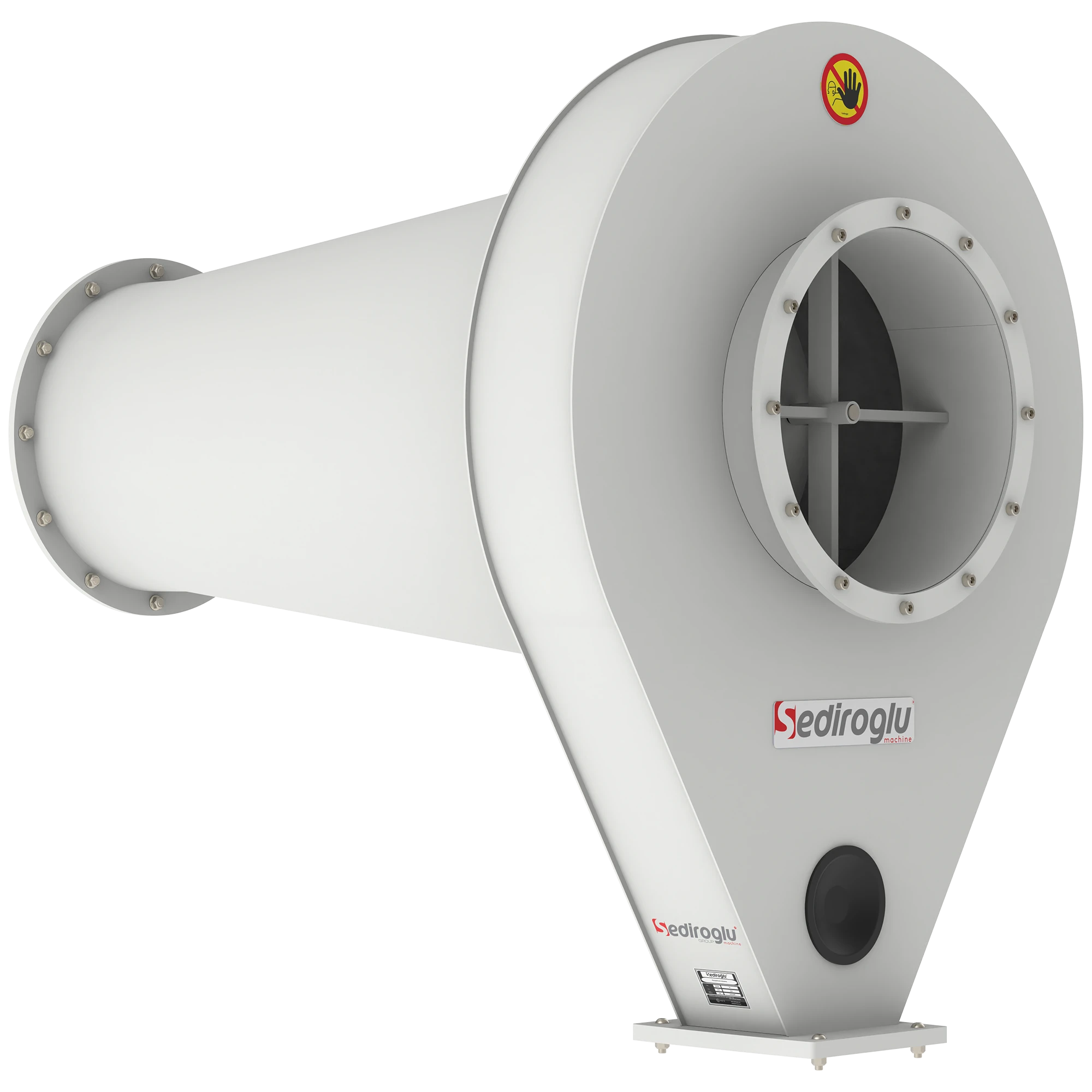

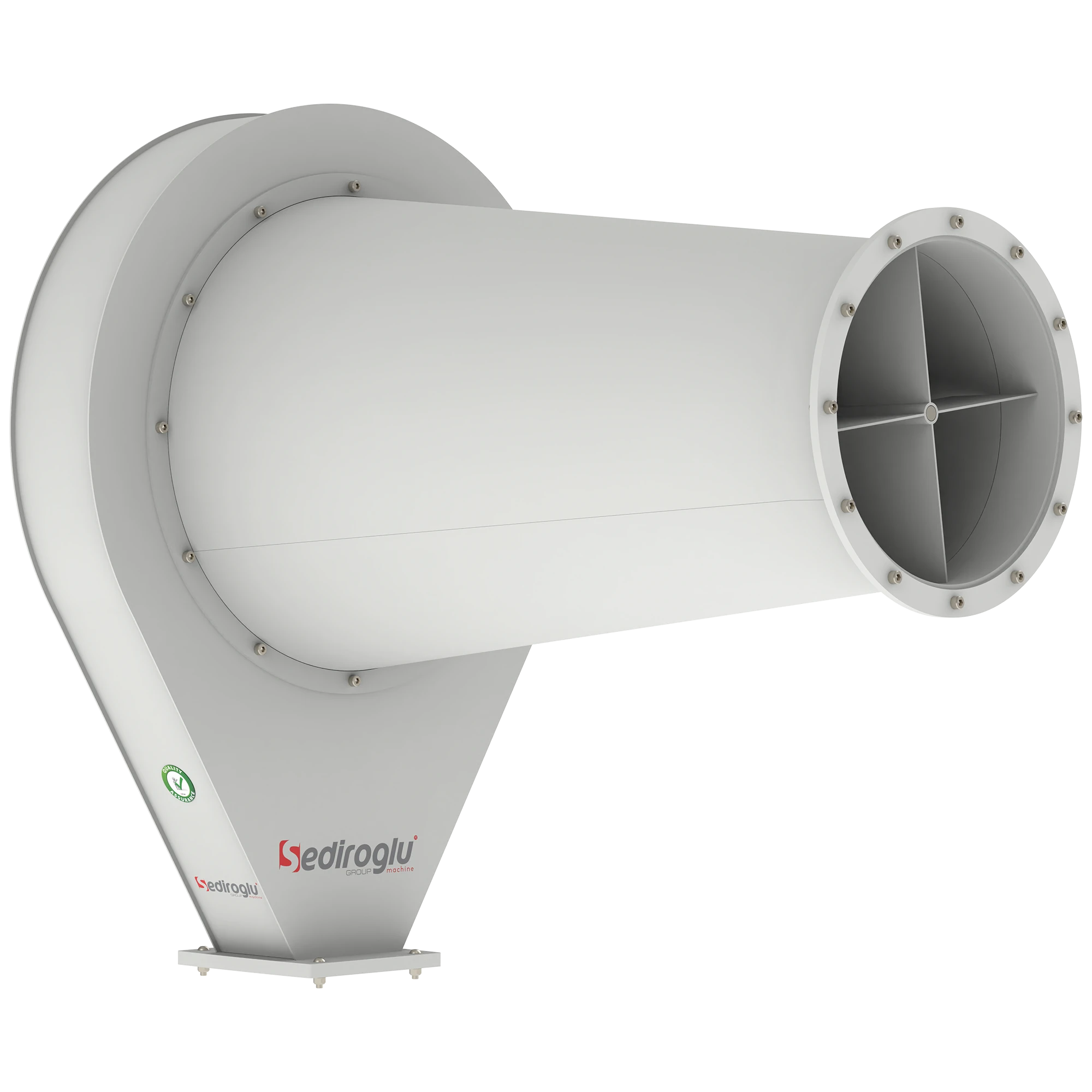

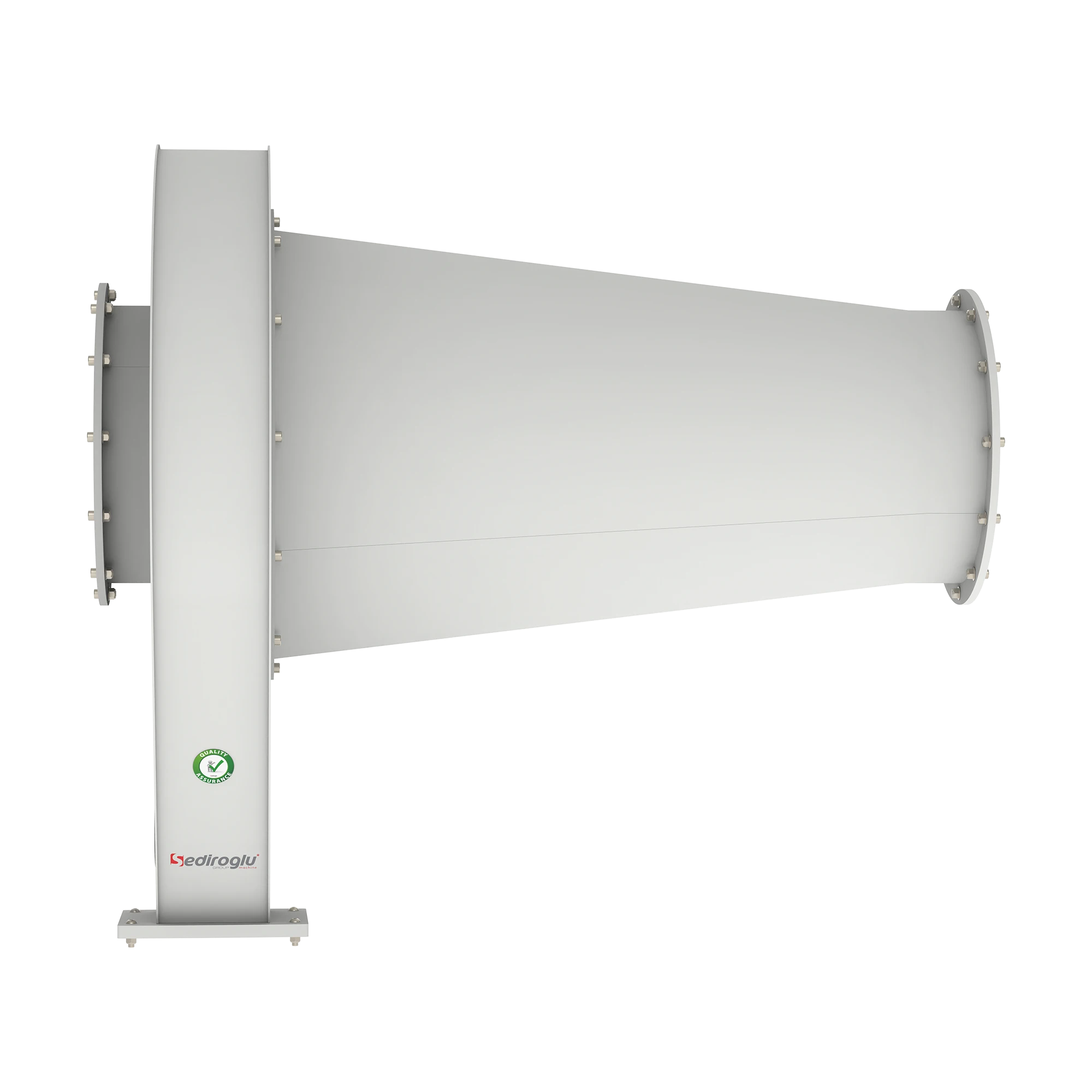

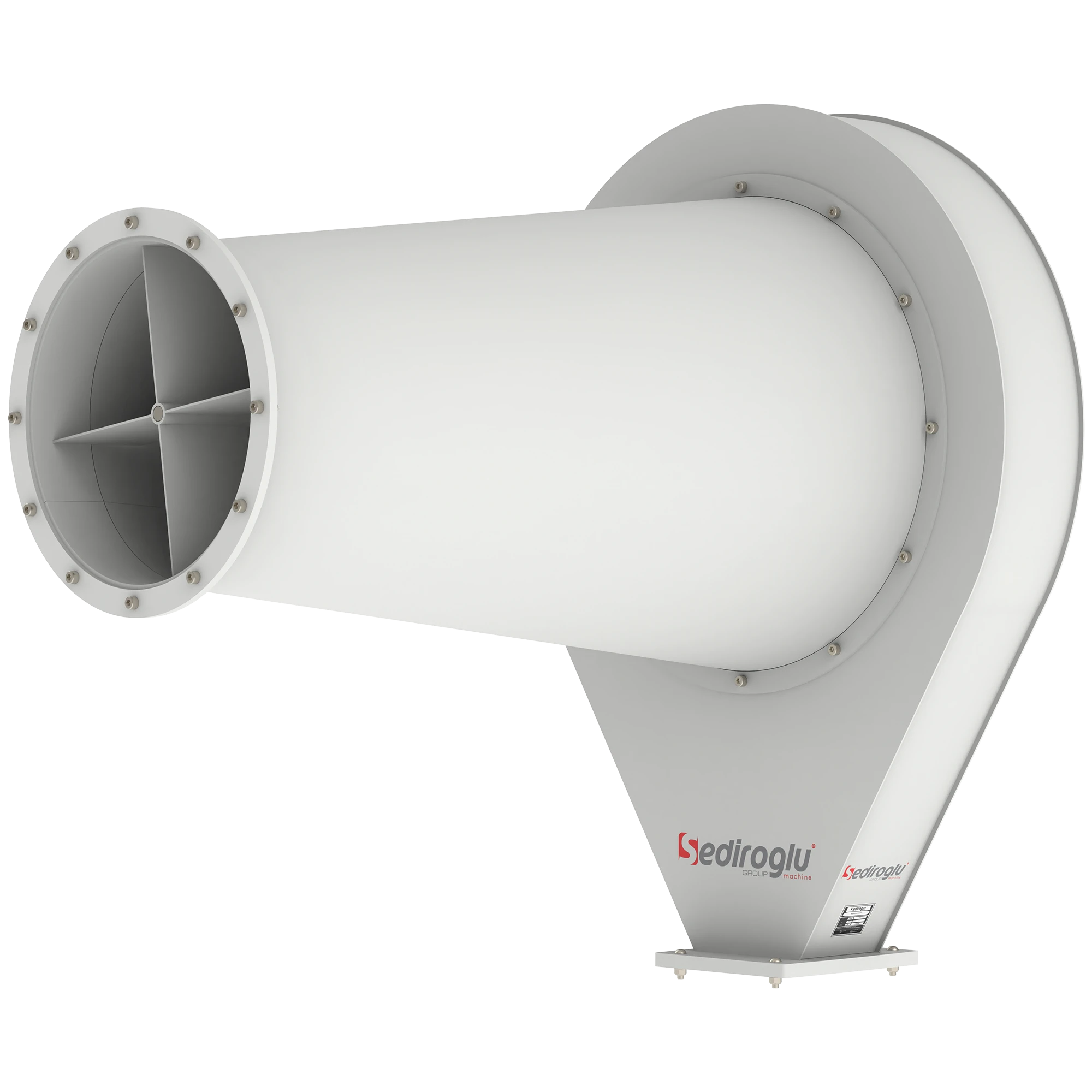

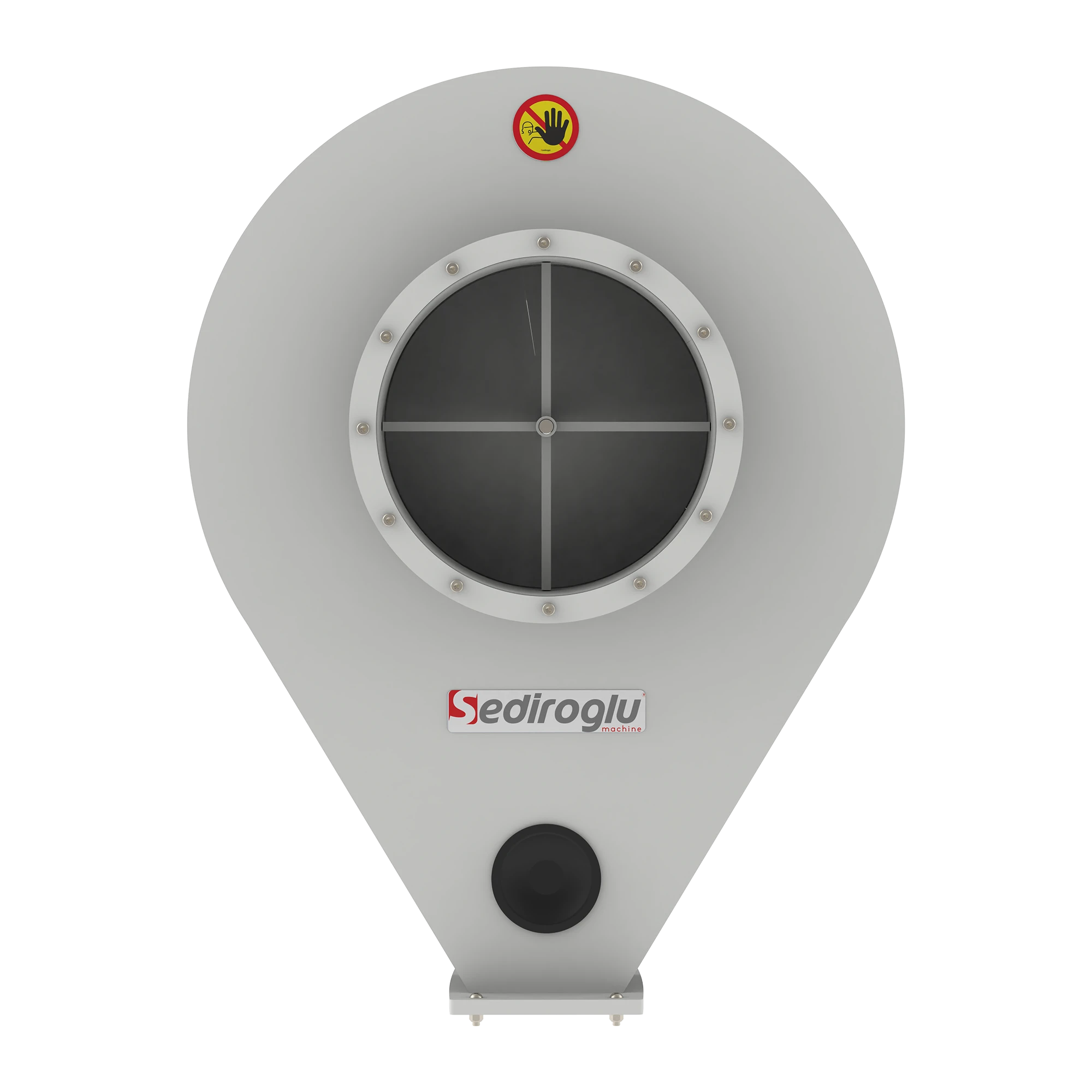

The Mono Cyclone 40 is a high-efficiency pre-separation unit designed to protect filtration systems by separating granular waste from dust-laden air before it reaches filter bags. Installed between processing machines and filters, it plays a critical role in flour mills, grain cleaning silos, semolina plants, corn flour mills, and recycling facilities. Inside the Mono Cyclone 40, heavy particles such as stone dust, bran fragments, straw particles, and coarse grain residues are separated from the airflow through centrifugal force. While clean air continues toward the filtration system, separated granular material is discharged through a rotary airlock valve into the waste bunker. This process significantly reduces filter bag wear, improves airflow stability, extends filter life, and increases overall plant efficiency. The Mono Cyclone 40 is engineered for continuous industrial operation with robust construction and reliable separation performance.
Machine code:
SE-MNC-40
Metal Feature
Sediroglu Group lets you select the metal feature that best suits your machine, ensuring optimal performance and meeting your operational needsSpare Parts
Select the spare parts required for your machine based on your operational needs, ensuring continued performance and minimizing downtimeThe Answers to Your Questions Are Here
We've answered the most frequently asked questions about the product. From technical details and ease of use to maintenance and spare parts information, you can find comprehensive answers here. If you don't find what you're looking for, don't hesitate to contact us—we'd be happy to help.
Monthly maintenance includes inspection of internal cyclone surfaces for dust or material buildup, checking flange connections for tightness, and ensuring smooth discharge through the rotary airlock valve. Sealing points should be inspected to prevent air leakage. If excessive accumulation is observed, internal cleaning of the cyclone body and cone section is recommended to maintain optimal separation efficiency.
Annual maintenance involves a full inspection of the cyclone body, cone section, inlet and outlet connections, and discharge area. Internal surfaces should be checked for abrasion caused by continuous granular impact. Seals and flanges must be replaced if worn. Alignment with aspiration lines and filtration systems should be verified to ensure balanced airflow and long-term operational reliability.
SEDIROGLU GROUP supplies original spare parts for the Mono Cyclone 40, including inlet and outlet flanges, cone sections, inspection covers, sealing elements, discharge connections, and compatible rotary airlock valve components. All spare parts are manufactured to original specifications, ensuring perfect fit, durability, and reliable performance under continuous industrial operating conditions.

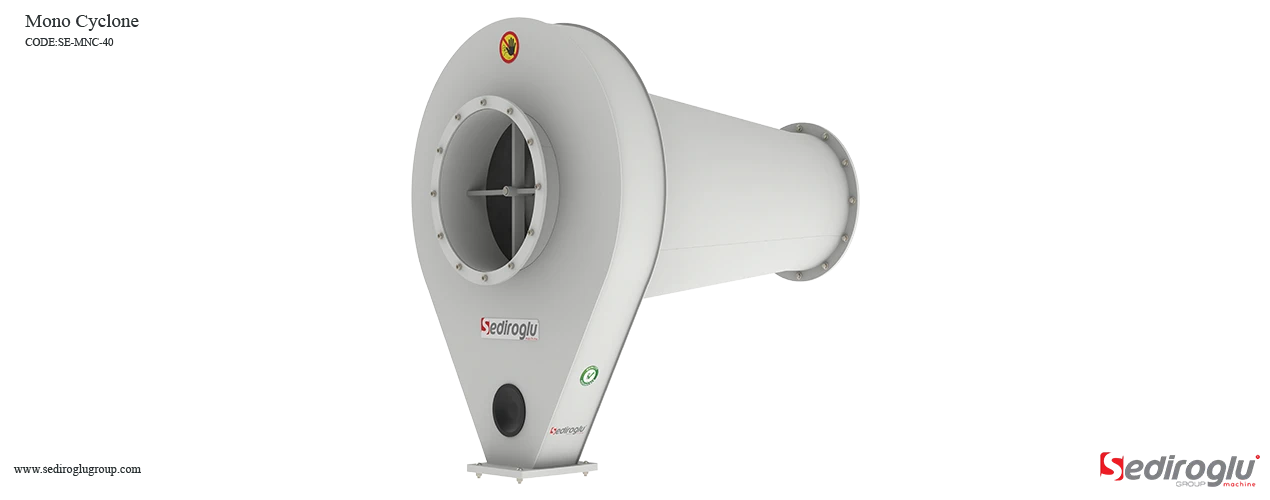

Watch the Video to Learn More About Our Machine’s Features
SE-MNC-40
We strongly recommend watching our detailed demo video, which helps you evaluate not only the technical specifications but also the machine’s real-life working principle, its influence on product flow, the technological advantages that enhance process efficiency, the practical ease it provides in terms of maintenance and operation, its durability level, and the overall value it will add to your production line before making your purchasing decision.
