Mono Cyclone 35

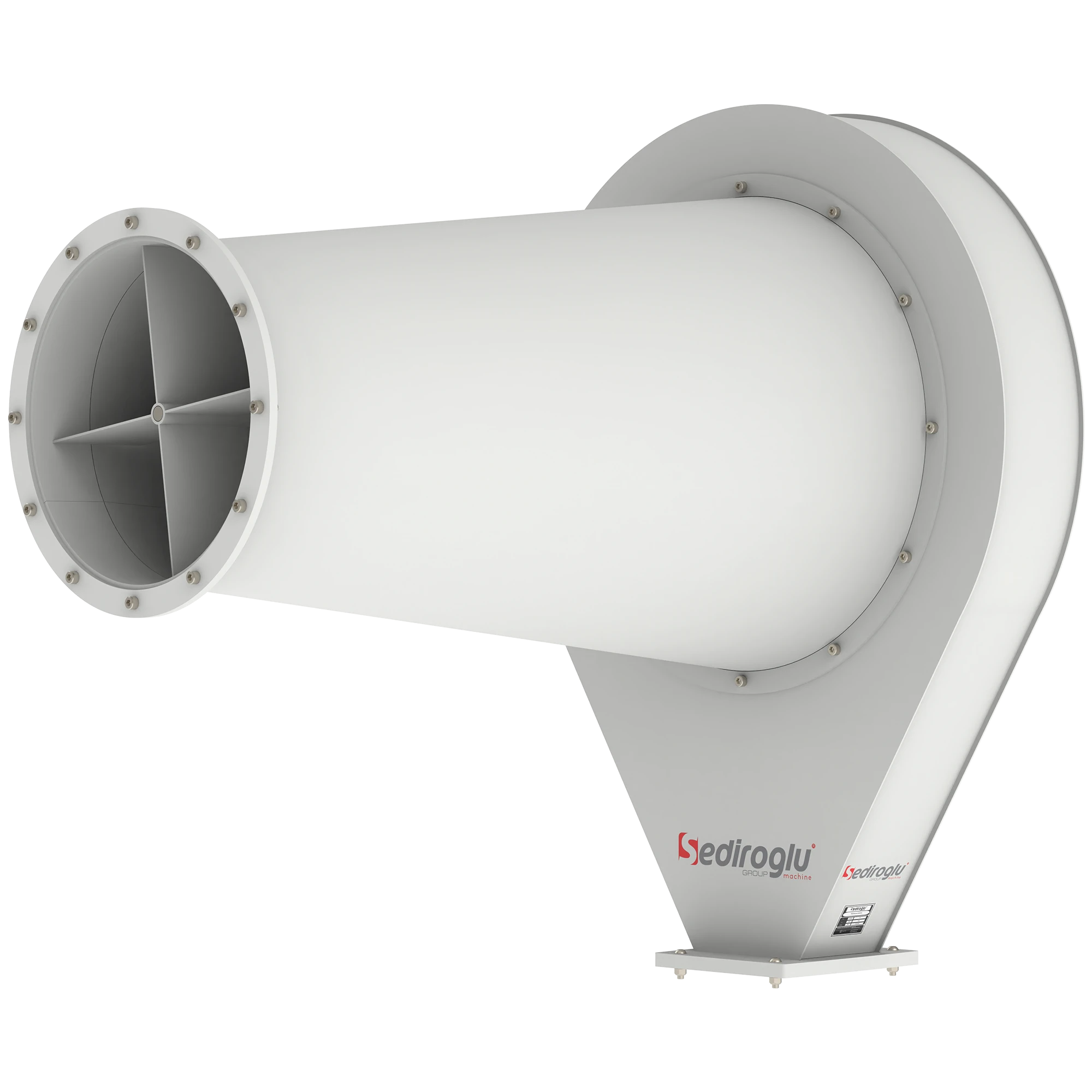

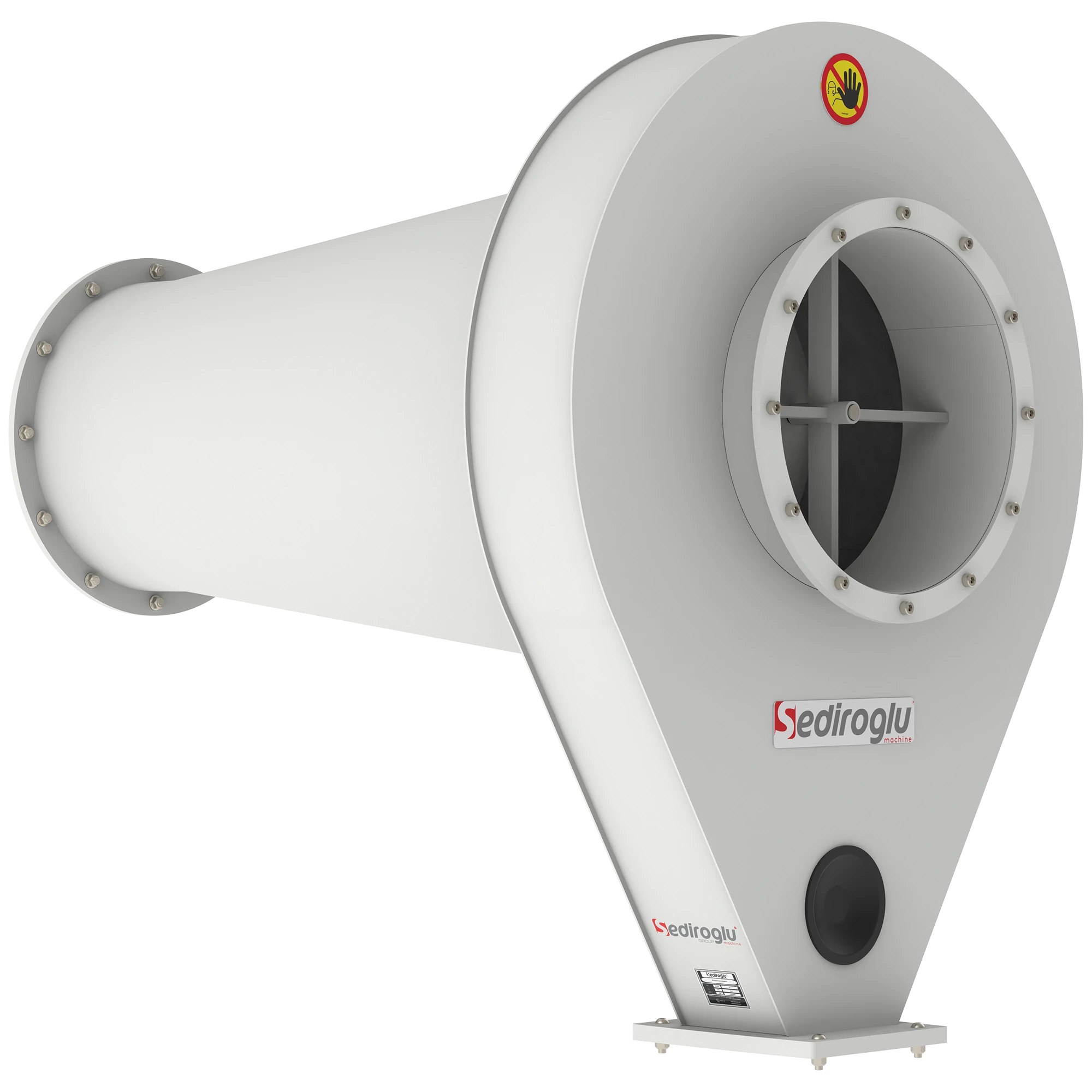

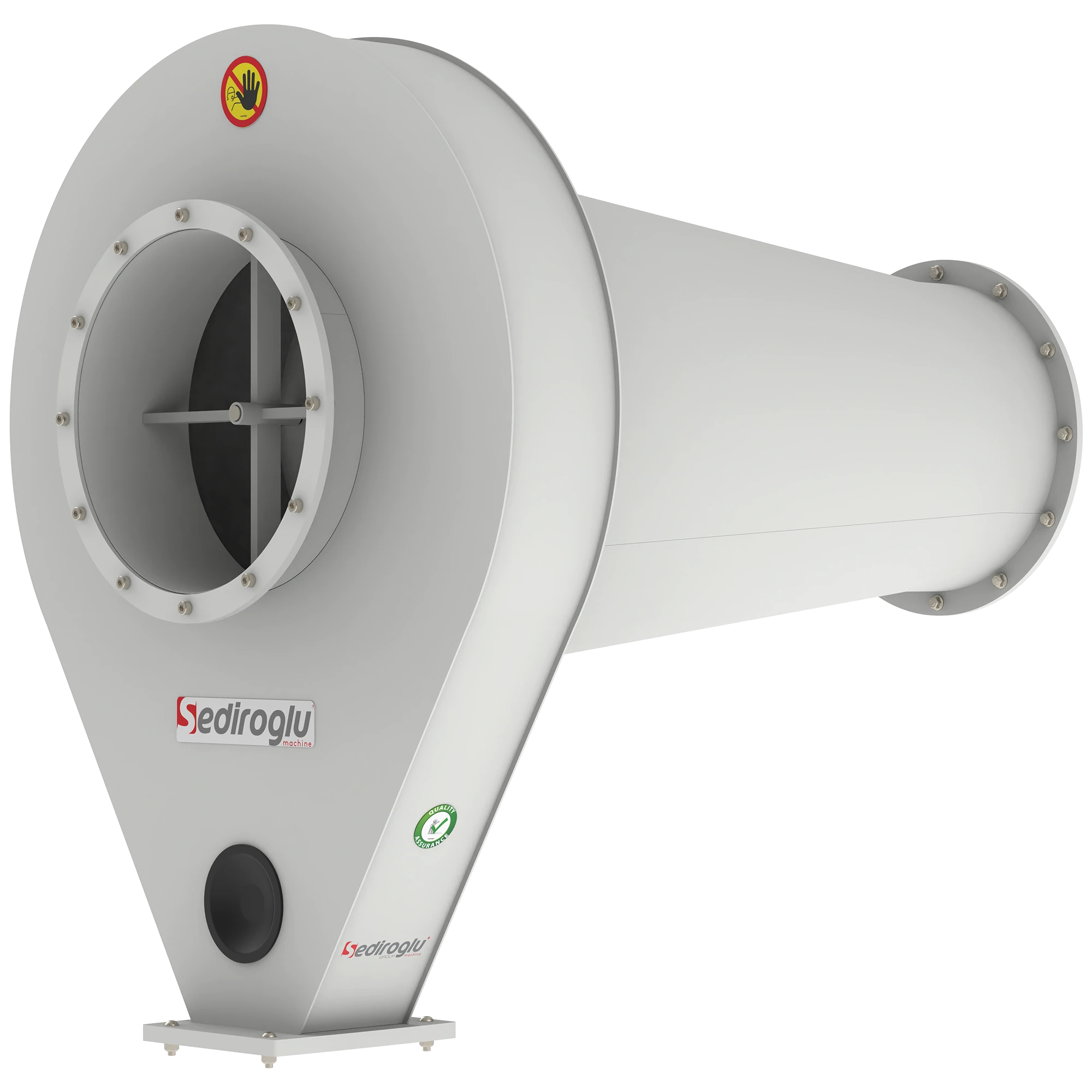

The Mono Cyclone 35 is a high-efficiency pre-separation cyclone designed to protect filtration systems by removing granular and heavy dust particles from aspiration air before it reaches filters. Installed between processing machines and filters, the Mono Cyclone 35 plays a critical role in maintaining stable airflow balance and preventing mechanical damage to filter bags. In flour mills, grain cleaning lines, semolina plants, corn flour mills, recycling facilities, and silo aspiration systems, uncleaned aspiration air often contains dust mixed with granular particles such as bran fragments, grain husks, straw residues, stone dust, and coarse material. These particles significantly reduce filter life when directly sent to filters. The Mono Cyclone 35 separates these heavy particles inside its body using centrifugal force, allowing only fine dust to continue to the filter while granular material is discharged safely through a rotary airlock valve into a waste bunker. This improves filtration efficiency, reduces maintenance costs, and ensures long-term operational reliability.
Machine code:
SE-MNC-35
Metal Feature
Sediroglu Group lets you select the metal feature that best suits your machine, ensuring optimal performance and meeting your operational needsSpare Parts
Select the spare parts required for your machine based on your operational needs, ensuring continued performance and minimizing downtimeThe Answers to Your Questions Are Here
We've answered the most frequently asked questions about the product. From technical details and ease of use to maintenance and spare parts information, you can find comprehensive answers here. If you don't find what you're looking for, don't hesitate to contact us—we'd be happy to help.
Monthly maintenance of the Mono Cyclone 35 includes inspecting internal surfaces for excessive dust or granular buildup that may affect separation efficiency. Flange connections and sealing points should be checked to ensure airtight operation and prevent false air intake. The rotary airlock valve discharge must be inspected to confirm smooth material flow without blockage. If buildup is observed, internal cleaning of the cyclone walls and cone section is recommended to maintain optimal centrifugal separation performance.
Annual maintenance requires a detailed inspection of the entire cyclone body, including the cylindrical section, cone, inlet, and outlet connections. Internal surfaces should be checked for abrasion caused by continuous particle impact. Sealing elements, gaskets, and flange connections must be replaced if worn. Alignment with upstream machines and downstream filters should be verified to maintain correct airflow dynamics and system balance.
SEDIROGLU GROUP supplies original spare parts for the Mono Cyclone 35, including inlet and outlet flanges, discharge cone sections, inspection covers, sealing gaskets, and compatible rotary airlock valve components. All spare parts are manufactured according to original specifications to ensure perfect fit, durability, and reliable performance under continuous industrial operating conditions.

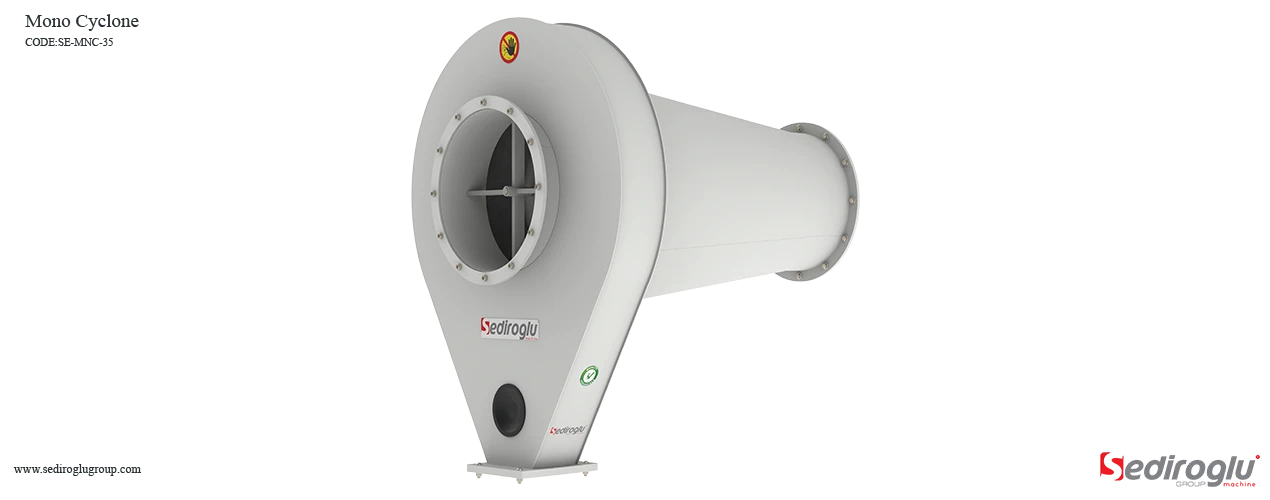

Watch the Video to Learn More About Our Machine’s Features
SE-MNC-35
We strongly recommend watching our detailed demo video, which helps you evaluate not only the technical specifications but also the machine’s real-life working principle, its influence on product flow, the technological advantages that enhance process efficiency, the practical ease it provides in terms of maintenance and operation, its durability level, and the overall value it will add to your production line before making your purchasing decision.
