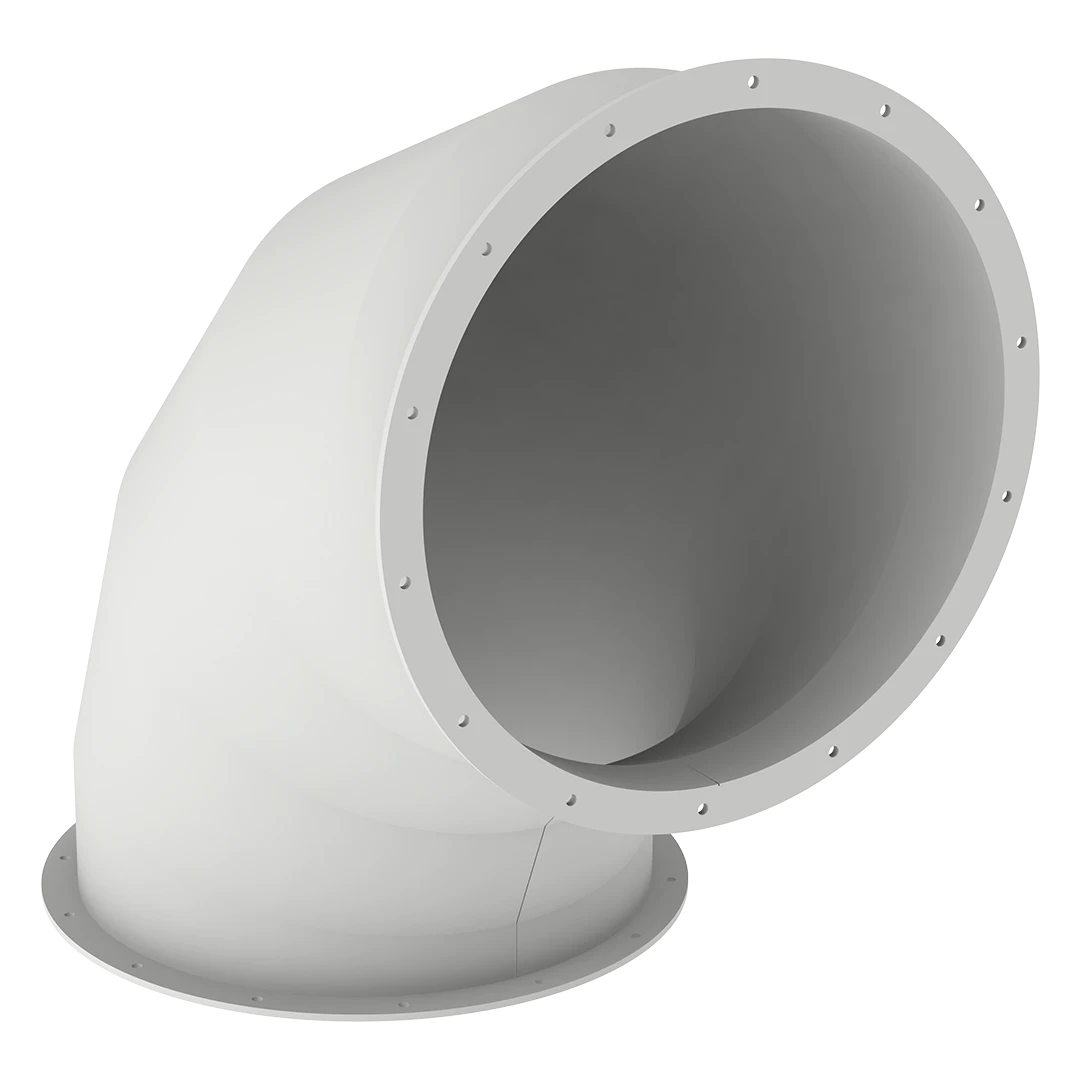

Mono Cyclone 90° Flanged Pipe Elbow
The Mono Cyclone 90° Flanged Pipe Elbow is a directional duct component designed for Mono Cyclone aspiration and dust separation systems. It enables a smooth 90-degree airflow transition without causing turbulence, pressure loss, or imbalance in the cyclone system.

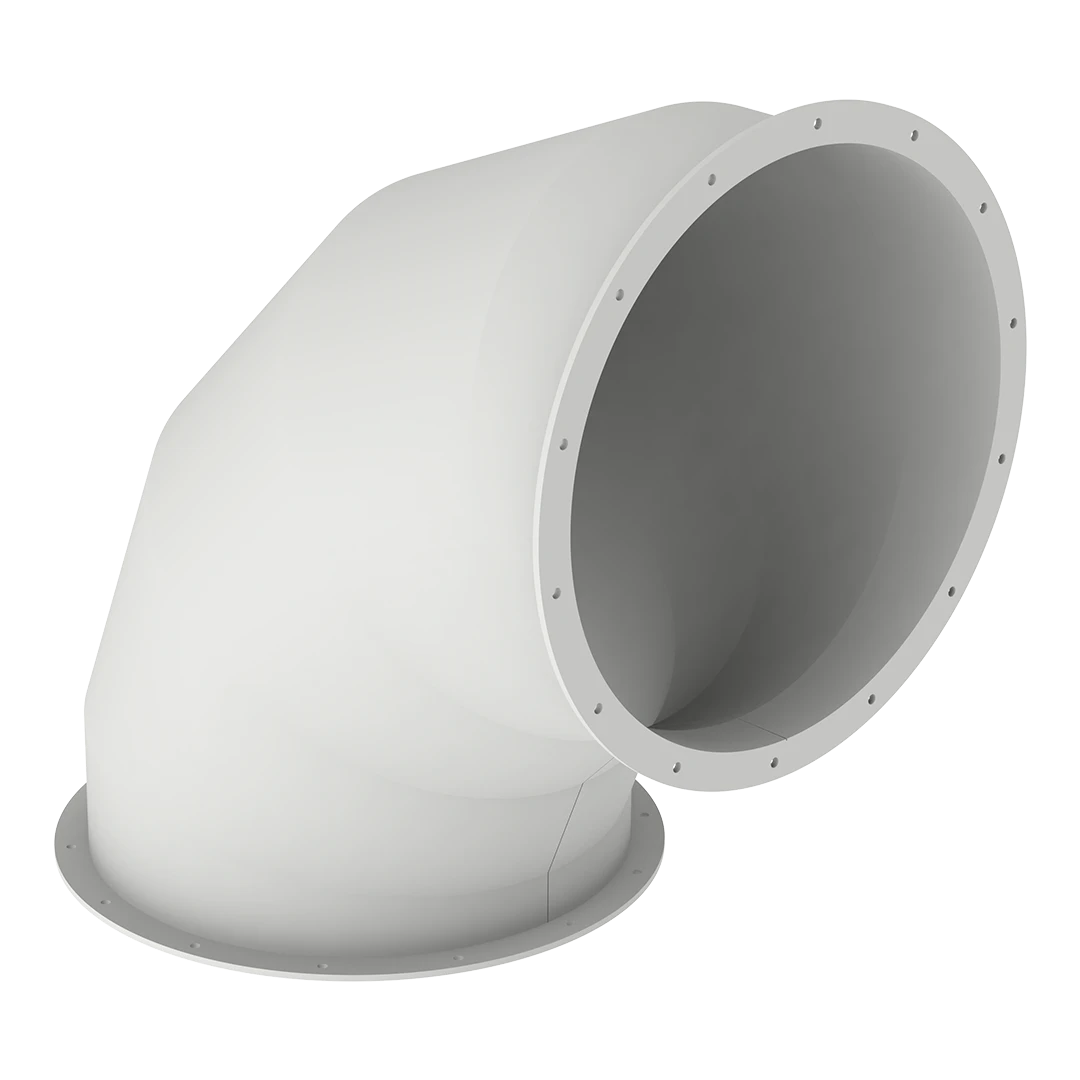

This elbow is installed together with straight flanged pipes to provide left or right directional changes between the Mono Cyclone outlet, aspiration lines, vertical discharge ducts, or exhaust connections extending above roof level. By maintaining a controlled airflow path, it supports stable centrifugal separation performance and efficient dust discharge.

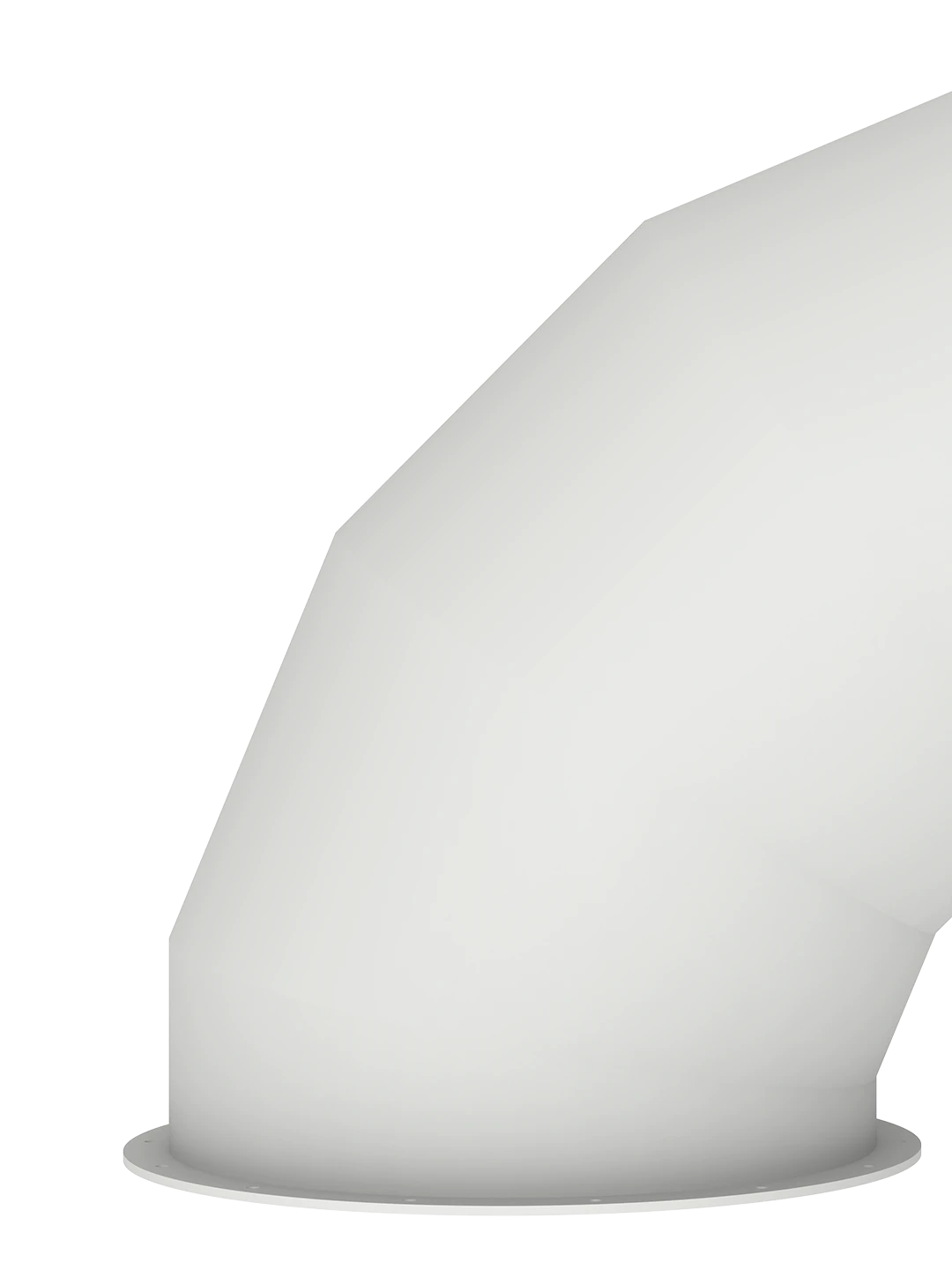

Manufactured from painted standard steel, chrome metal, or galvanized steel depending on application requirements, the elbow offers high resistance to abrasion, dust exposure, and continuous industrial operation. Pipe diameter, wall thickness, and flange dimensions are precisely produced according to Mono Cyclone outlet specifications, ensuring perfect alignment, airtight connection, and easy installation.
The Mono Cyclone 90° Flanged Pipe Elbow plays a critical role in maintaining system balance, protecting downstream filters, and ensuring reliable air discharge in flour mills, grain processing plants, recycling facilities, and industrial dust control systems.
Mono Cyclone 90° Flanged Pipe Elbow
APPLICATION FIELDS
► Mono Cyclone aspiration systems ► Flour mills and wheat flour production plants ► Semolina and corn flour factories ► Grain cleaning and conditioning facilities ► Feed and animal nutrition plants ► Pasta, biscuit, and bakery production lines ► Rice, pulse, and cereal processing plants ► Industrial dust cyclone systems ► Aspiration and air discharge lines ► Pneumatic conveying installations ► Recycling and waste processing facilities ► Cement and mineral processing plants
