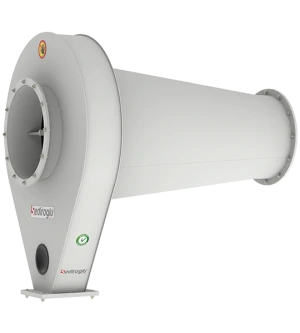

Mono Cyclone 25
SE-MNC-25
Mono Cyclone 30

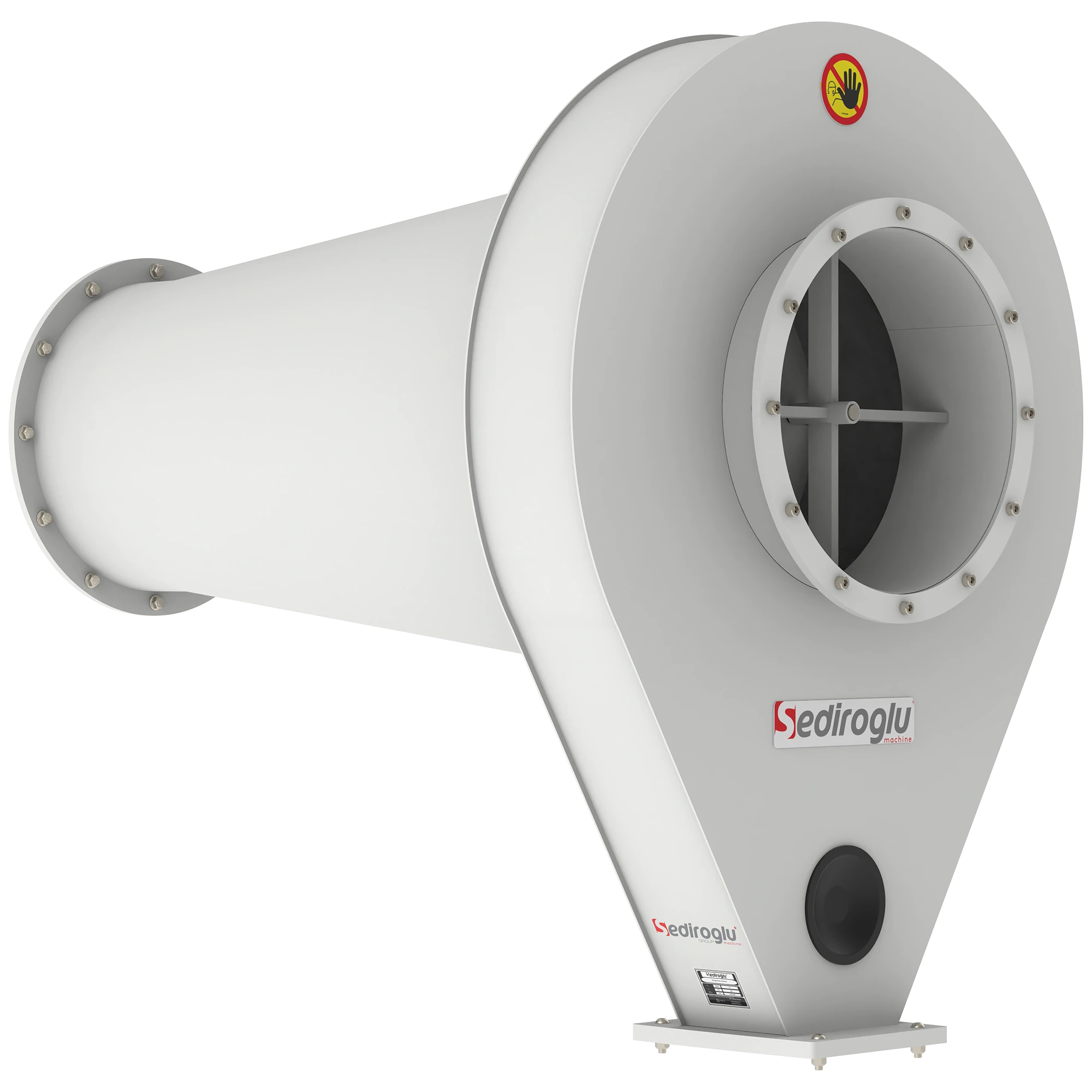

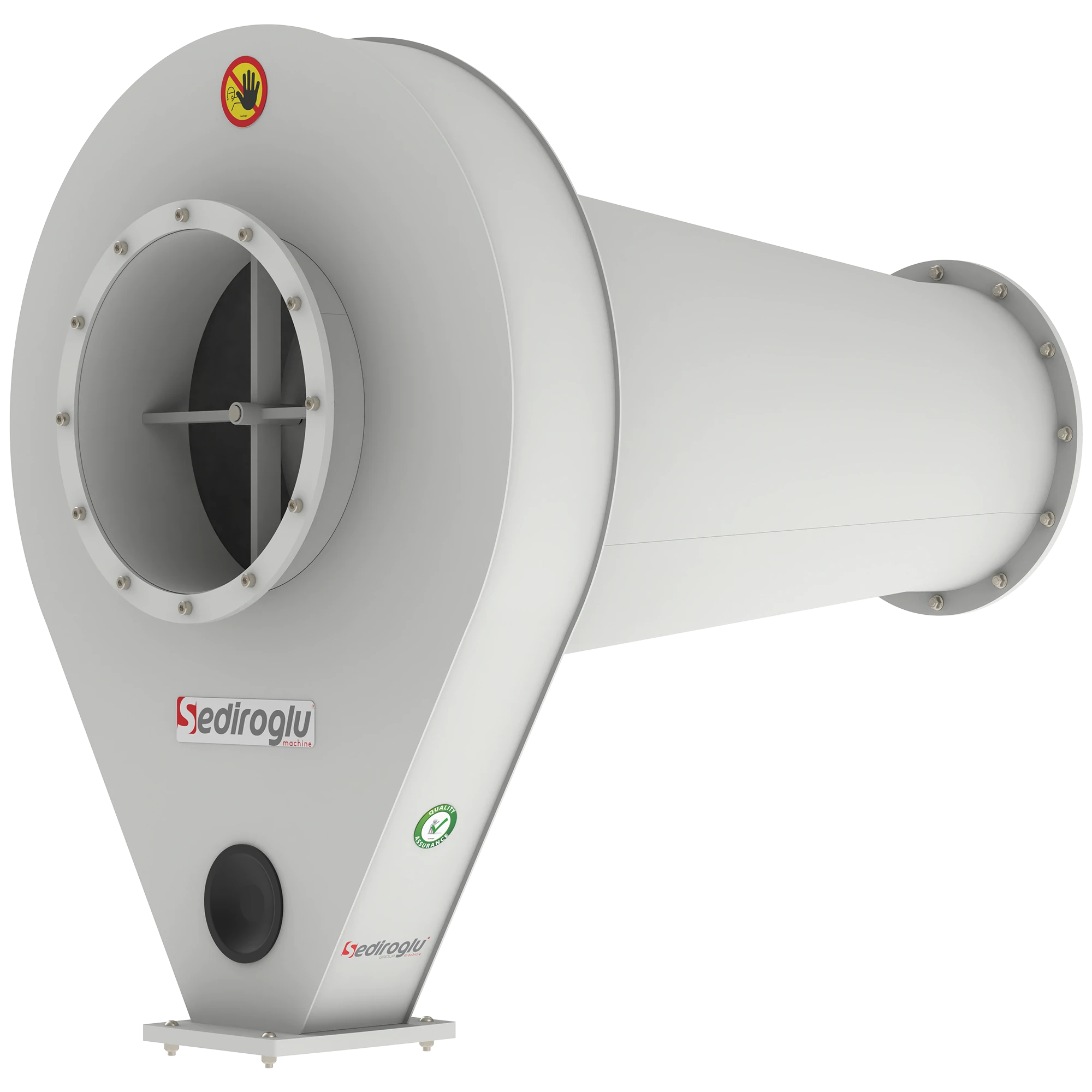

The Mono Cyclone 30 is a high-efficiency pre-separation unit designed to protect filtration systems by separating granular and heavy dust particles from aspiration air before it reaches filters. Installed between the processing machine and the filter unit, the Mono Cyclone 30 uses centrifugal force to separate coarse dust, straw fragments, stone particles, and grain residues from the airflow. While clean air continues toward the filter, heavier granular materials strike the internal cyclone walls, lose velocity, and are discharged downward through a rotary airlock valve into a waste hopper. This process significantly reduces filter bag load, prevents tearing, extends filter service life, and improves overall aspiration efficiency. The Mono Cyclone 30 is widely used in flour mills, grain cleaning sections, semolina plants, corn flour mills, whole wheat flour lines, feed factories, recycling facilities, and industrial aspiration systems requiring reliable dust separation.
Machine code:
SE-MNC-30
Metal Feature
Sediroglu Group lets you select the metal feature that best suits your machine, ensuring optimal performance and meeting your operational needsSpare Parts
Select the spare parts required for your machine based on your operational needs, ensuring continued performance and minimizing downtimeThe Answers to Your Questions Are Here
We've answered the most frequently asked questions about the product. From technical details and ease of use to maintenance and spare parts information, you can find comprehensive answers here. If you don't find what you're looking for, don't hesitate to contact us—we'd be happy to help.
Monthly maintenance includes inspection of internal cyclone surfaces for dust buildup, bran adhesion, or granular material accumulation. Flange connections between the cyclone, machine, and aspiration ducts should be checked to prevent air leakage. The rotary airlock valve discharge must be inspected to ensure smooth and continuous material evacuation. If excessive buildup is detected, internal cleaning should be performed to maintain optimal centrifugal separation and consistent airflow performance.
Annual maintenance involves a detailed inspection of the cyclone body, cone section, inlet and outlet connections, and discharge zone. Internal surfaces should be checked for abrasion caused by stone particles, straw fragments, or coarse dust. Sealing elements and flange gaskets must be replaced if worn. Alignment with aspiration pipelines and filter systems should be verified to ensure balanced airflow, high separation efficiency, and long-term operational reliability.
SEDIROGLU GROUP supplies original spare parts for the Mono Cyclone 30 to ensure reliable and continuous operation. Available spare parts include inlet and outlet flanges, cone sections, discharge connections, inspection covers, sealing gaskets, and compatible rotary airlock valve components. All spare parts are manufactured according to original technical specifications, ensuring perfect fit, high abrasion resistance, and extended service life in flour mills, grain cleaning lines, semolina plants, corn flour mills, and recycling facilities.
Watch the Video to Learn More About Our Machine’s Features
SE-MNC-30
We strongly recommend watching our detailed demo video, which helps you evaluate not only the technical specifications but also the machine’s real-life working principle, its influence on product flow, the technological advantages that enhance process efficiency, the practical ease it provides in terms of maintenance and operation, its durability level, and the overall value it will add to your production line before making your purchasing decision.
