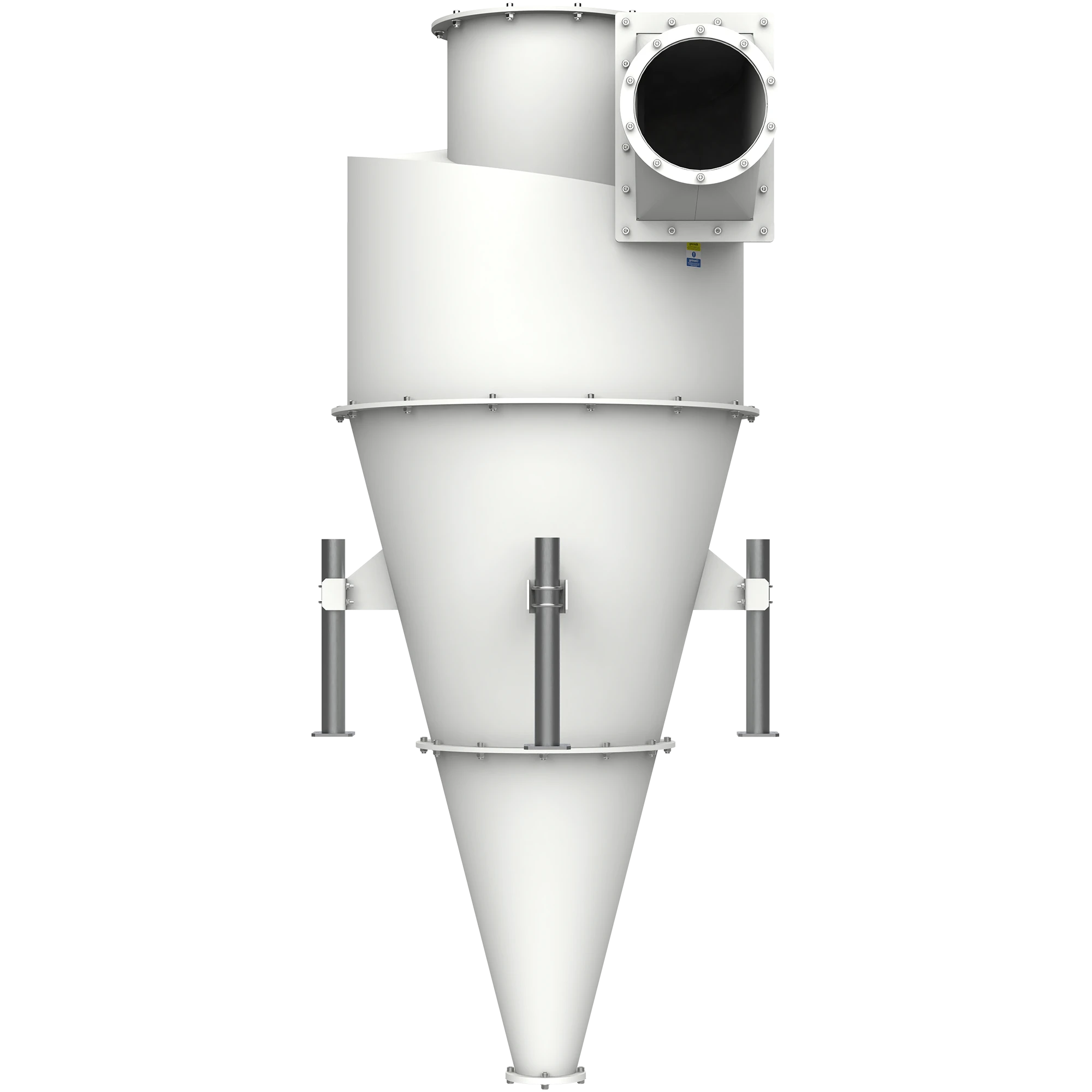

Cyclone Dust Collectors Ø 820

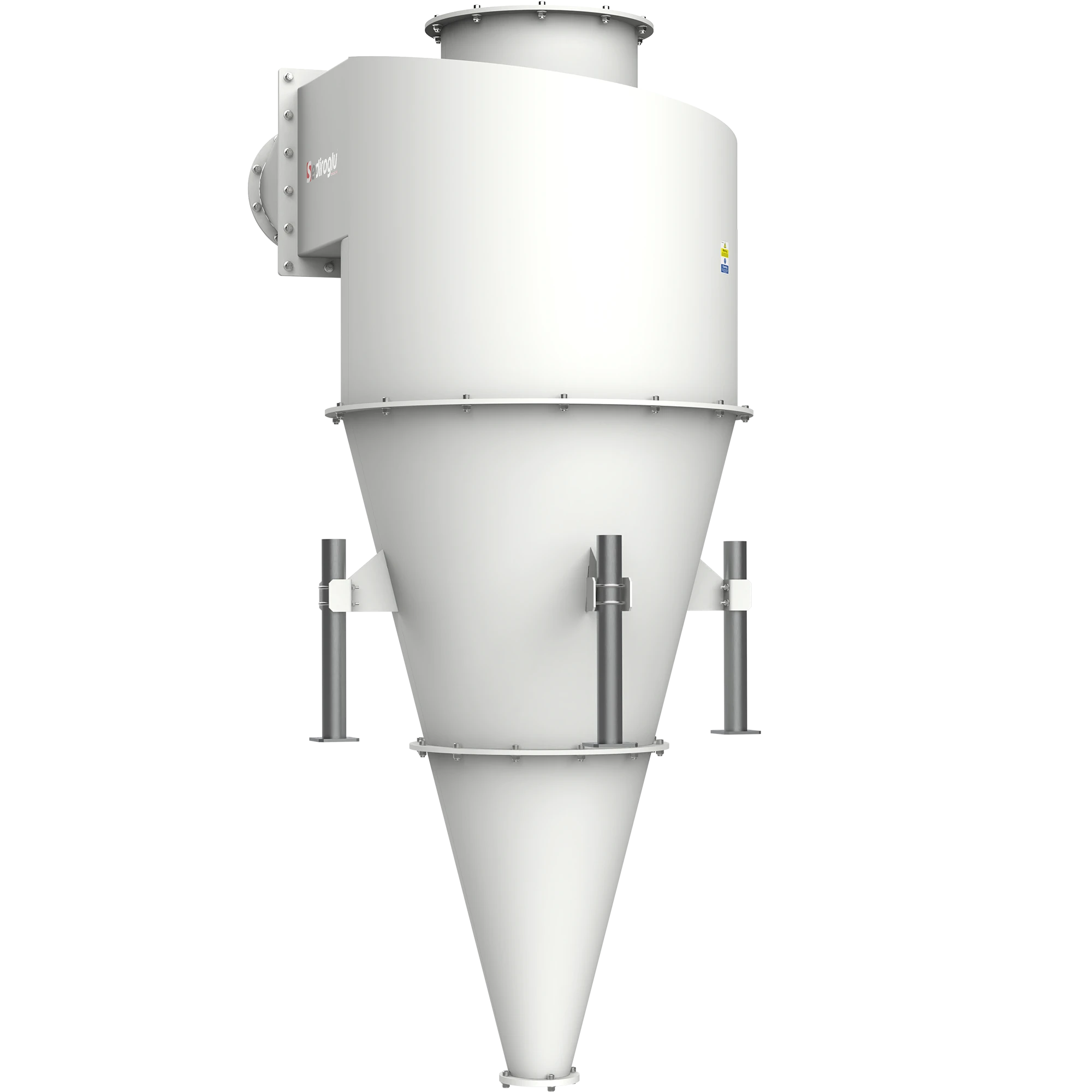

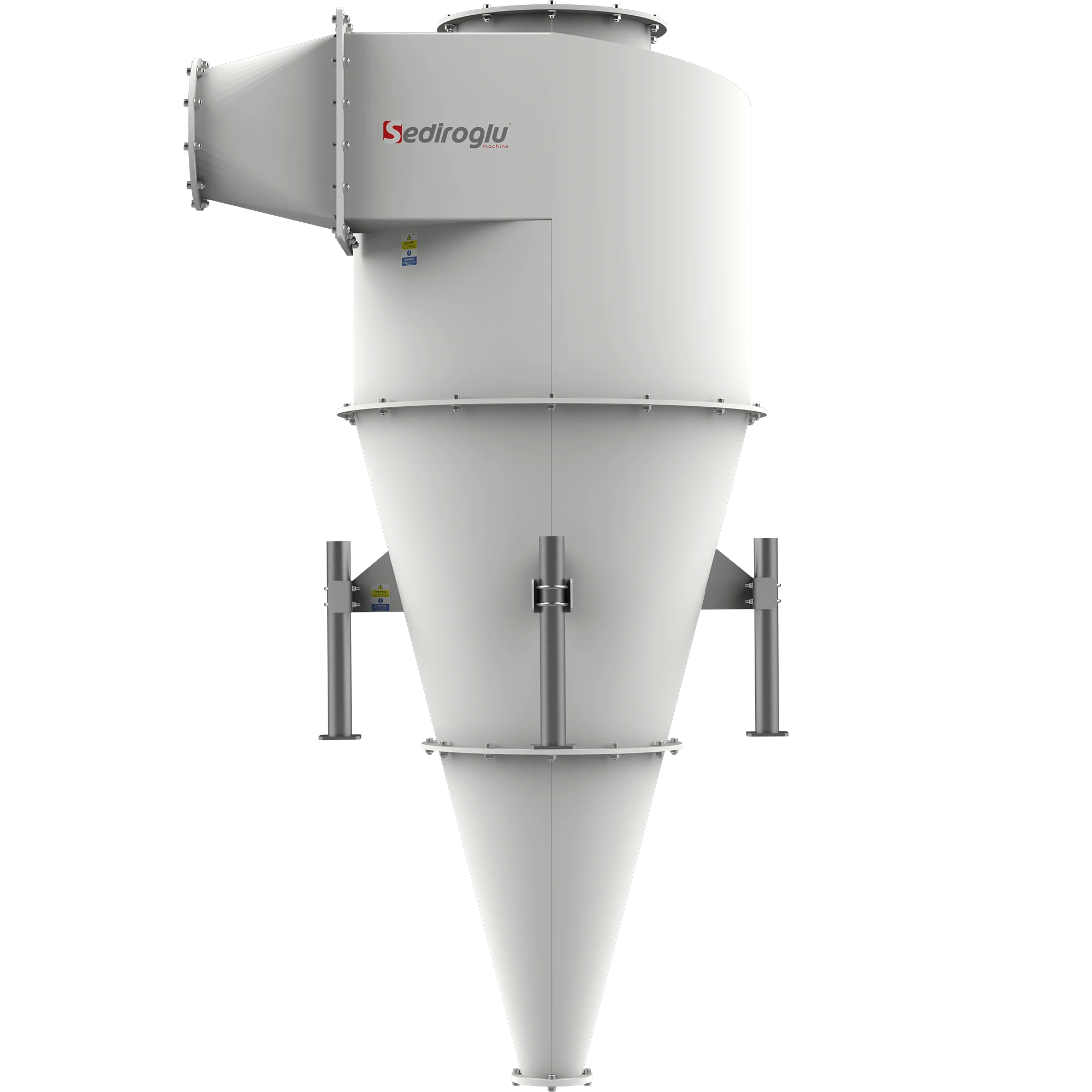

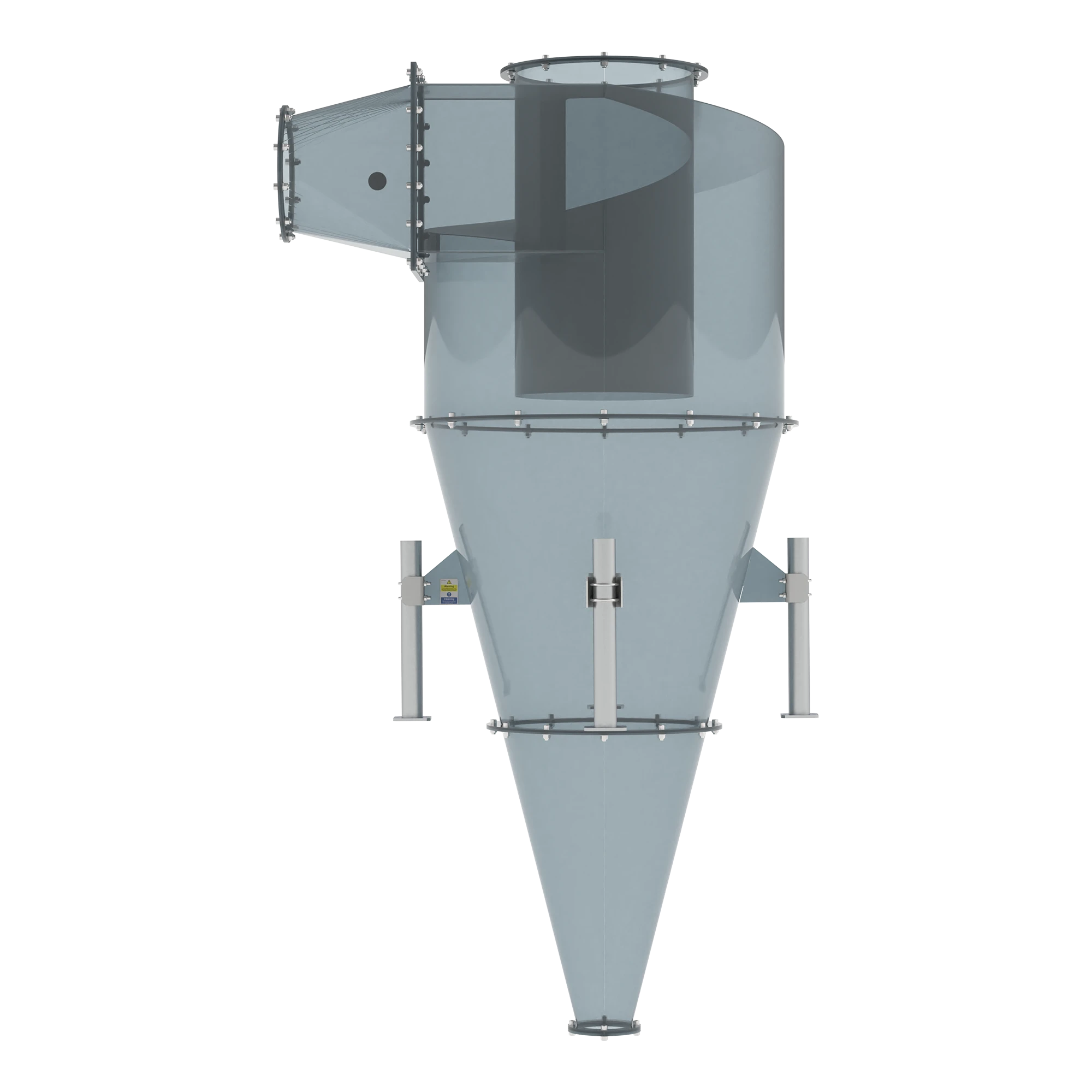

The Cyclone Dust Collector Ø820 is an advanced air separation system designed for efficient dust removal in industrial environments. With its optimized cone geometry and precise air vortex design, it ensures maximum separation efficiency while minimizing maintenance needs. This model offers ideal performance for medium-capacity systems and is commonly used in flour mills, feed factories, and grain cleaning units. Built with durable steel and advanced surface protection, the Ø820 guarantees long service life, low energy consumption, and consistent air pressure stability across all applications.
Product Catalog
Cyclone Dust Collectors Ø 820
Cyclone Dust Collectors Product Catalog
Machine code:
SE-CY-820
Metal Feature
Sediroglu Group lets you select the metal feature that best suits your machine, ensuring optimal performance and meeting your operational needsSpare Parts
Select the spare parts required for your machine based on your operational needs, ensuring continued performance and minimizing downtimeThe Answers to Your Questions Are Here
We've answered the most frequently asked questions about the product. From technical details and ease of use to maintenance and spare parts information, you can find comprehensive answers here. If you don't find what you're looking for, don't hesitate to contact us—we'd be happy to help.

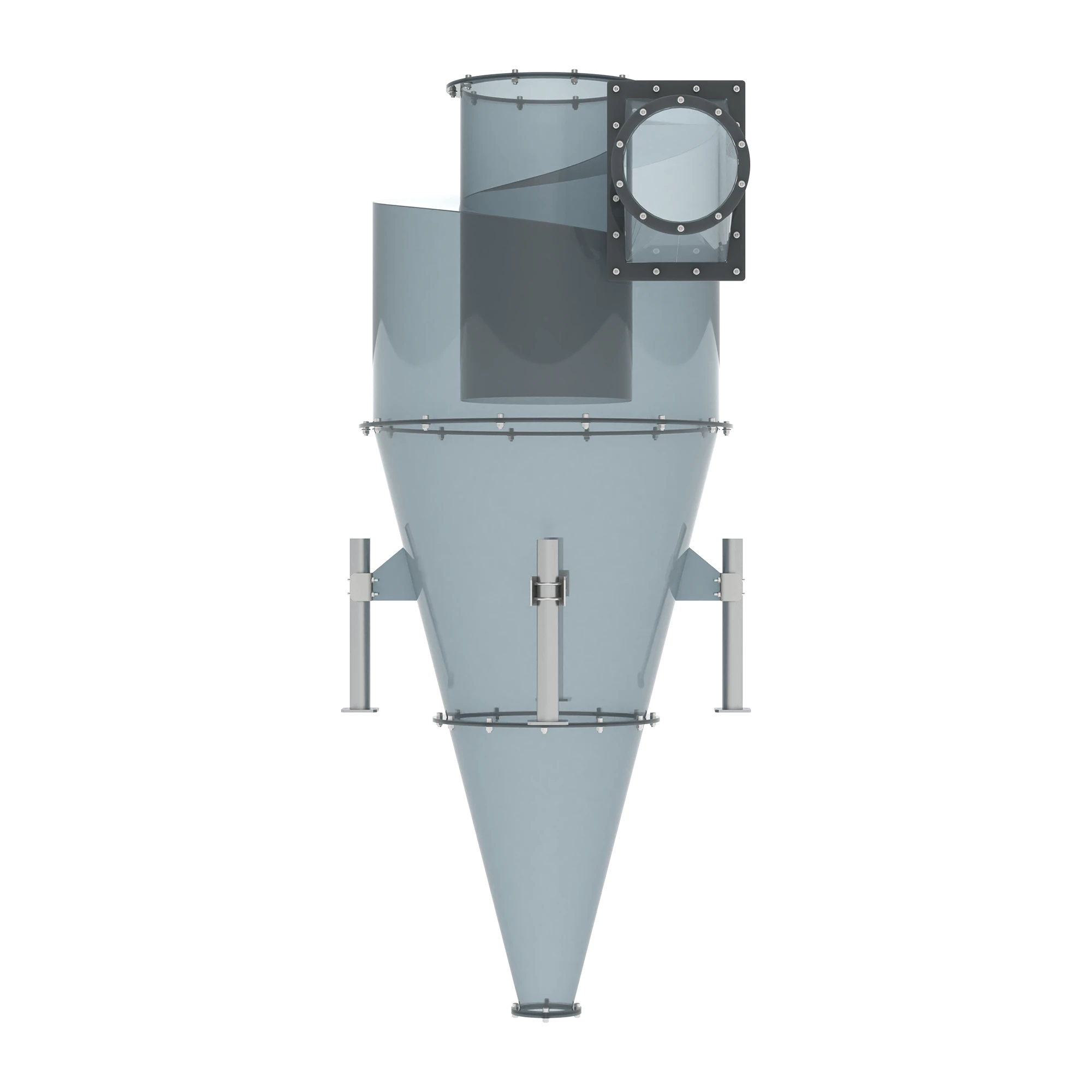

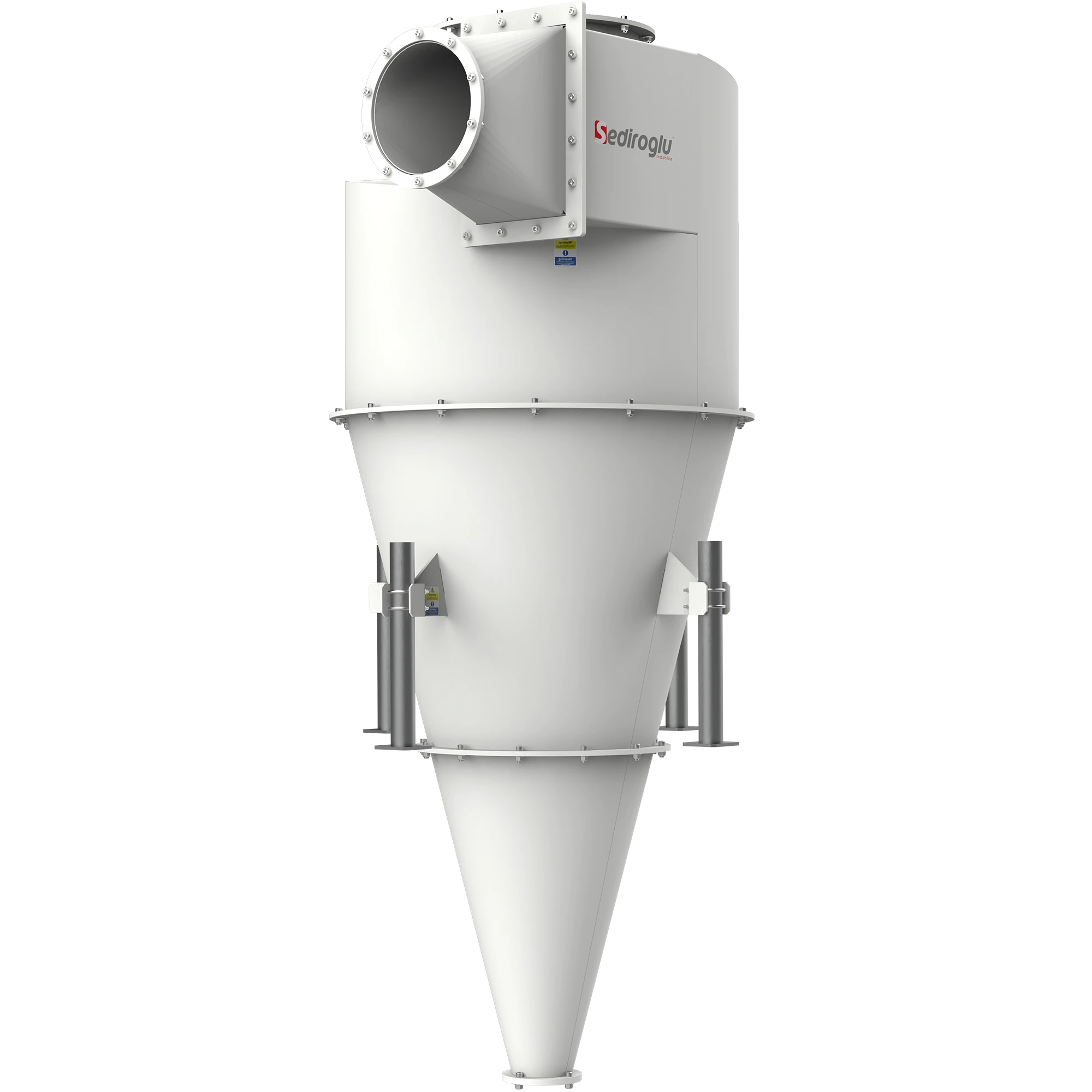

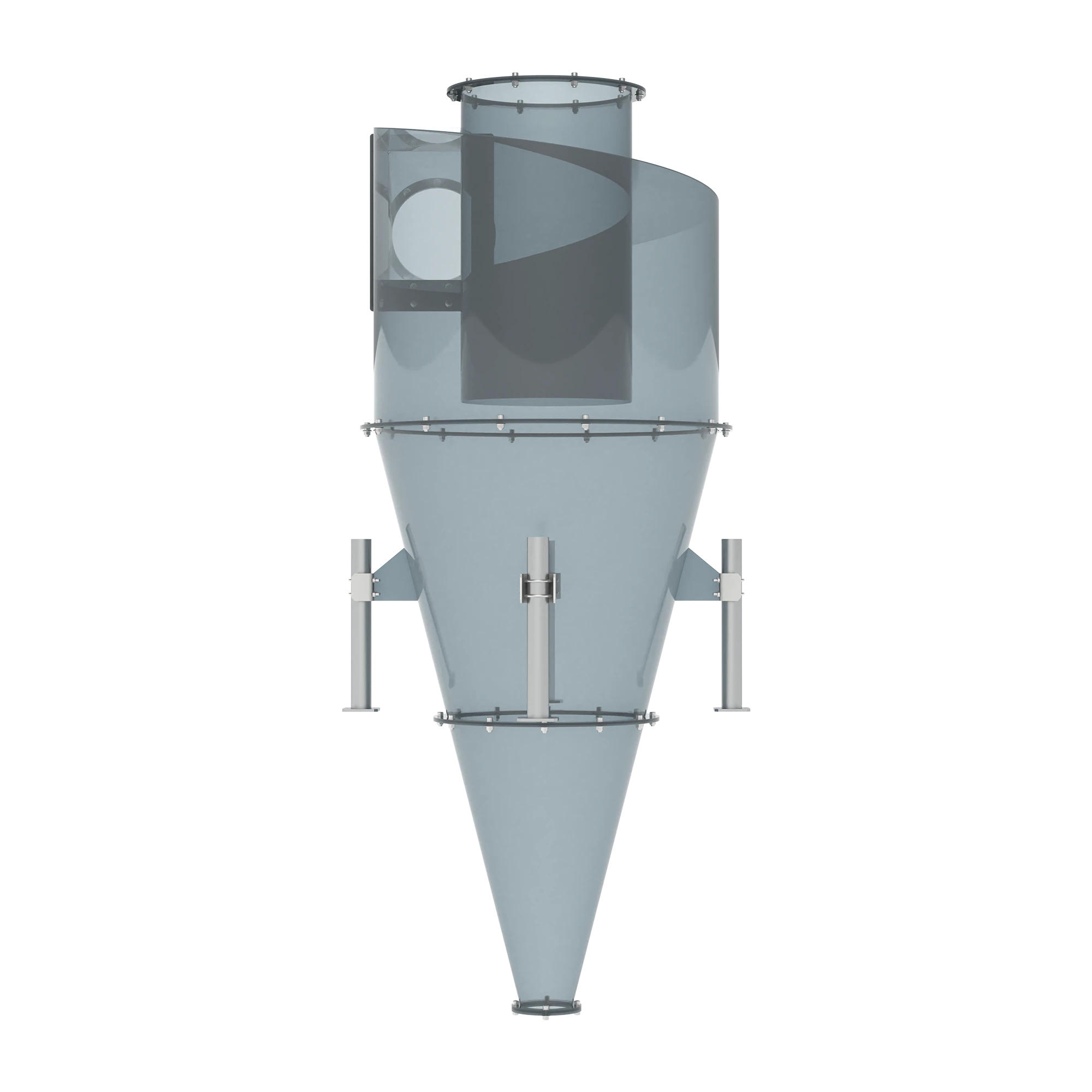

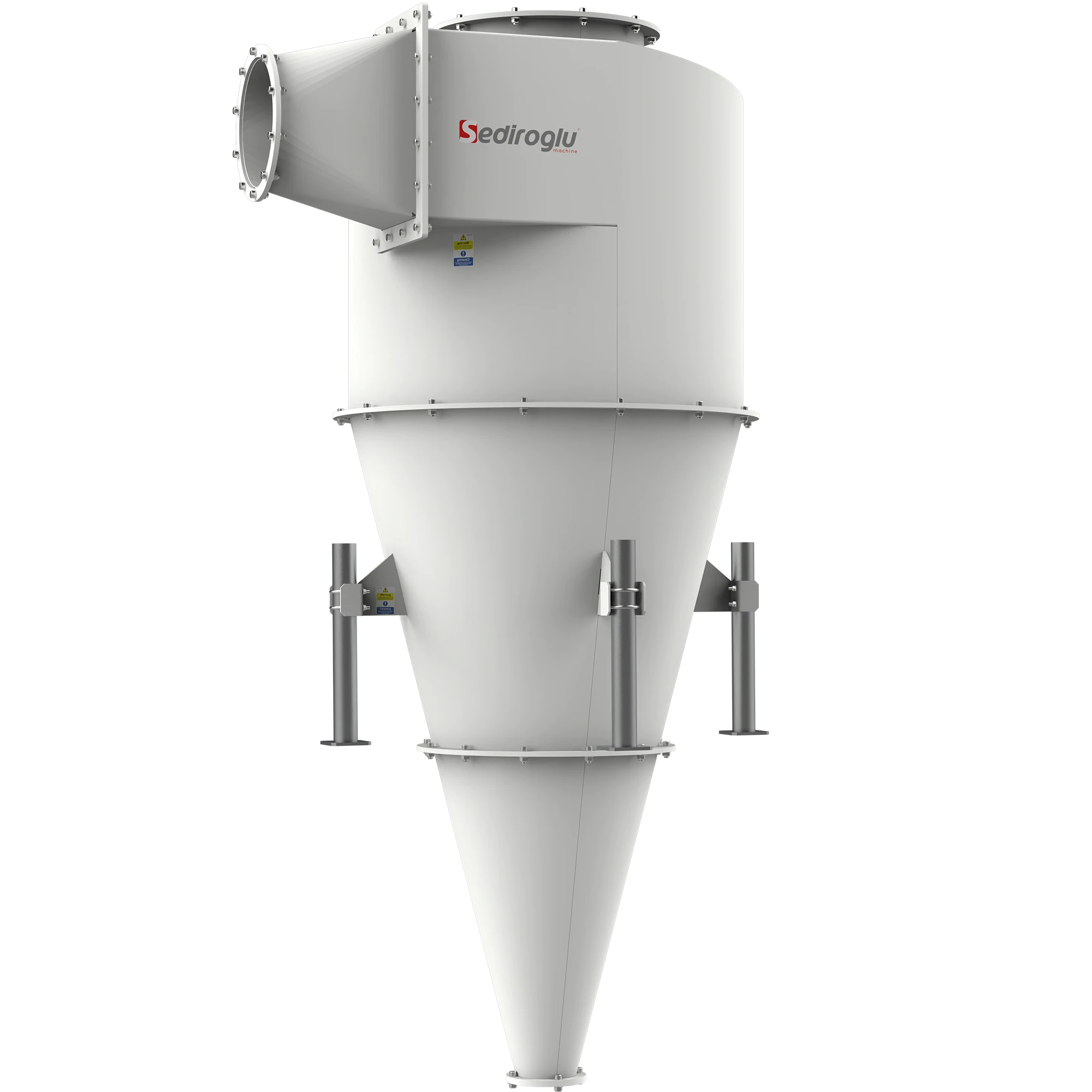

The Cyclone Dust Collector Ø820 is widely used in industrial environments where dust and fine particles must be separated from air streams. You can find it in flour mills, especially in the pre-cleaning, cleaning, and milling sections, where it ensures efficient removal of light impurities. It is also used in feed factories, grain silos, corn flour mills, and seed cleaning plants, preventing dust accumulation, improving hygiene, and maintaining product quality.

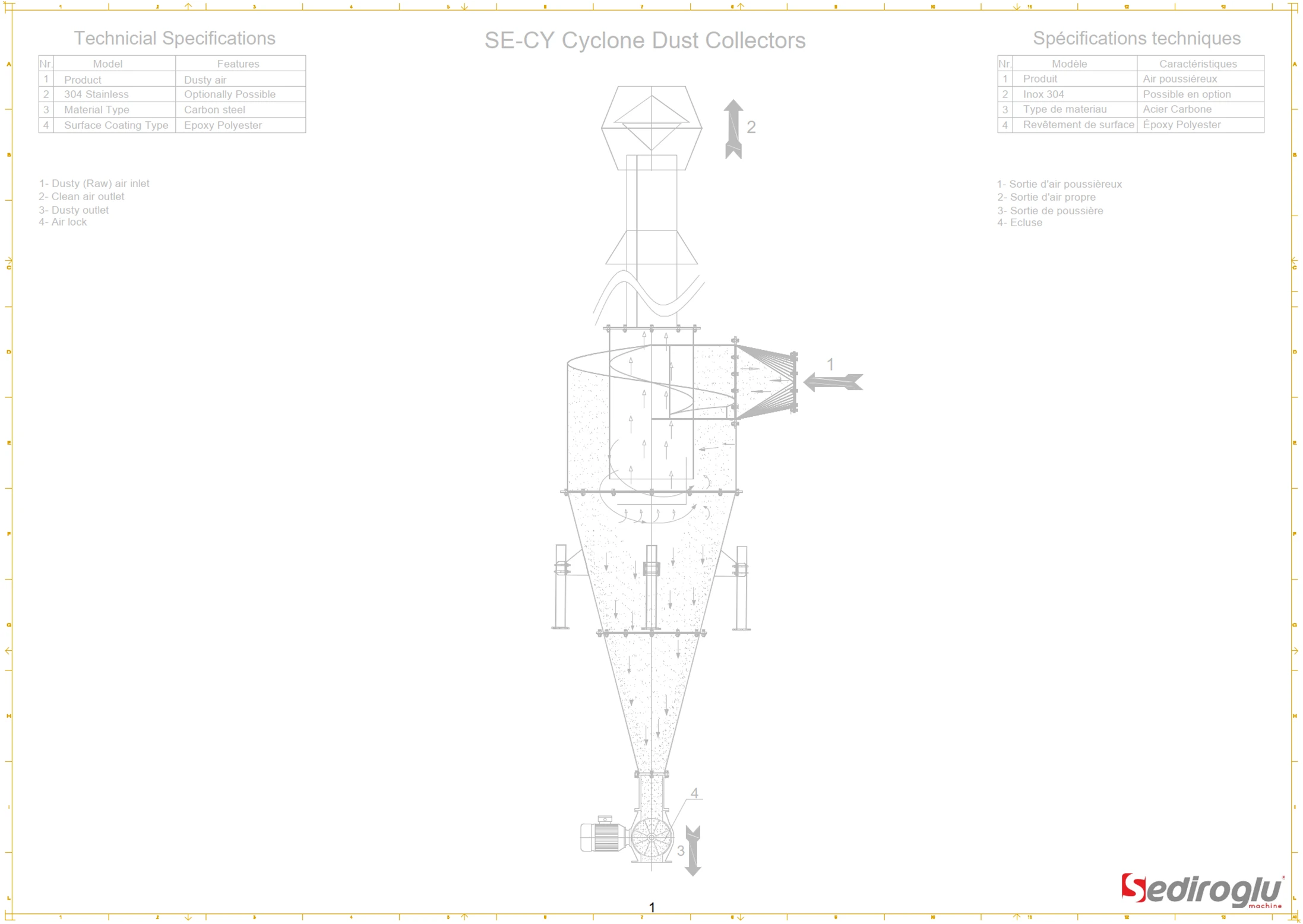

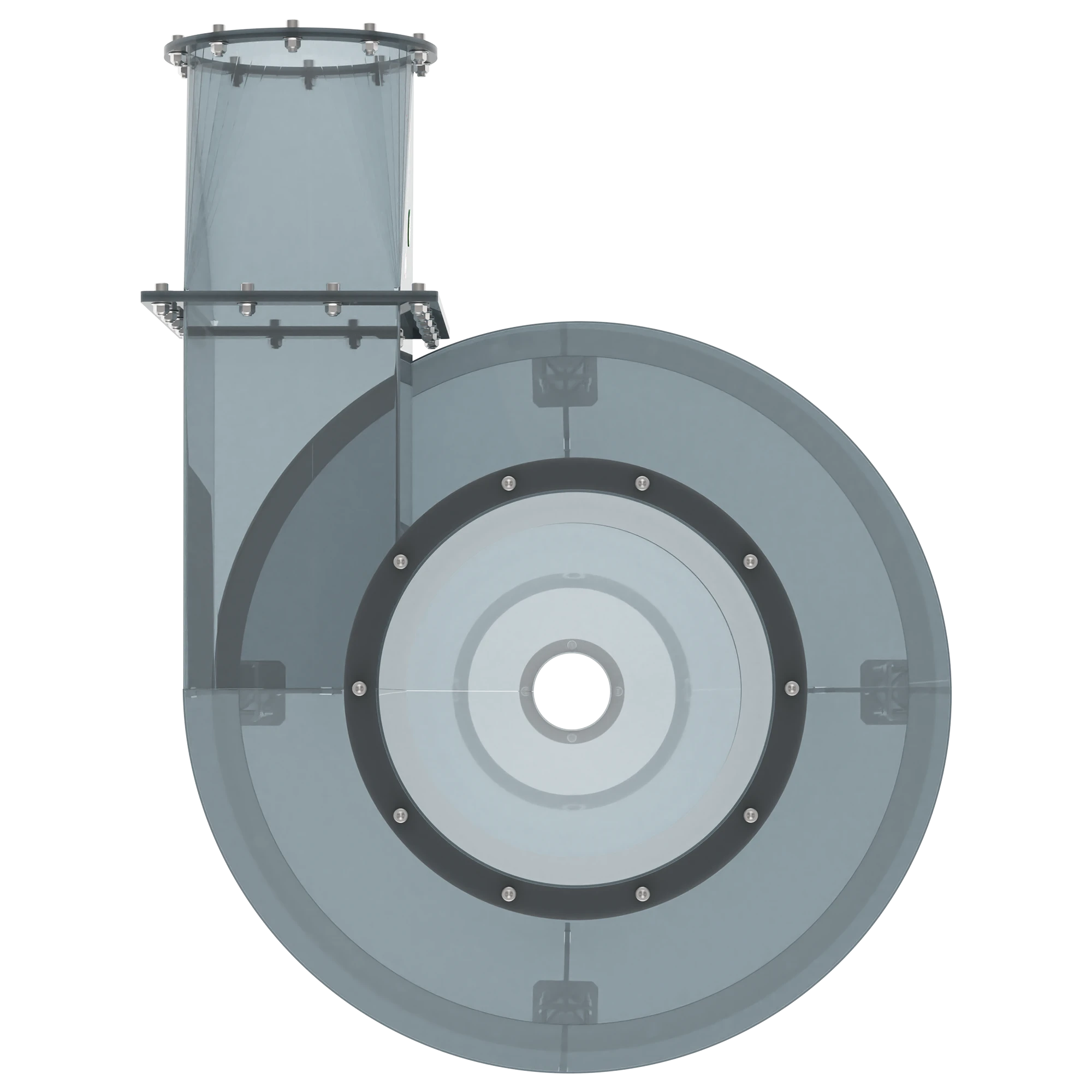

The Ø820 cyclone operates by creating a high-speed spiral airflow. Dust-laden air enters tangentially, generating centrifugal force that pushes heavier particles toward the wall. Clean air rises through the central vortex and exits through the top outlet. The separated dust falls into the lower hopper and is discharged through a rotary valve or screw conveyor. This mechanical separation process eliminates the need for filters, providing efficient and low-maintenance air cleaning performance ideal for continuous industrial use.
Selecting the proper cyclone diameter — such as the Ø820 model — directly impacts system performance. An oversized cyclone may reduce separation efficiency, while an undersized unit increases pressure drop and power consumption. The correct selection ensures the optimal balance between airflow, particle separation, and energy use. Since the cyclone influences the aspirator’s kW rating, an accurate choice significantly reduces energy costs and enhances the system’s stability.
Routine maintenance of the Ø820 Cyclone Dust Collector includes checking for air leaks, inspecting wear-resistant liners, and cleaning the dust outlet regularly. Periodic control of the vortex finder and cone section ensures consistent air velocity and dust removal performance. Maintenance frequency depends on dust load, but regular attention minimizes downtime and keeps the cyclone operating at peak efficiency.
Watch the Video to Learn More About Our Machine’s Features
SE-CY-820
We strongly recommend watching our detailed demo video, which helps you evaluate not only the technical specifications but also the machine’s real-life working principle, its influence on product flow, the technological advantages that enhance process efficiency, the practical ease it provides in terms of maintenance and operation, its durability level, and the overall value it will add to your production line before making your purchasing decision.
