Dust Cyclone 90° Flanged Pipe Elbow
The Dust Cyclone 90° Flanged Pipe Elbow is used to change airflow direction in cyclone and aspiration systems, ensuring smooth and efficient air discharge with minimal pressure loss.

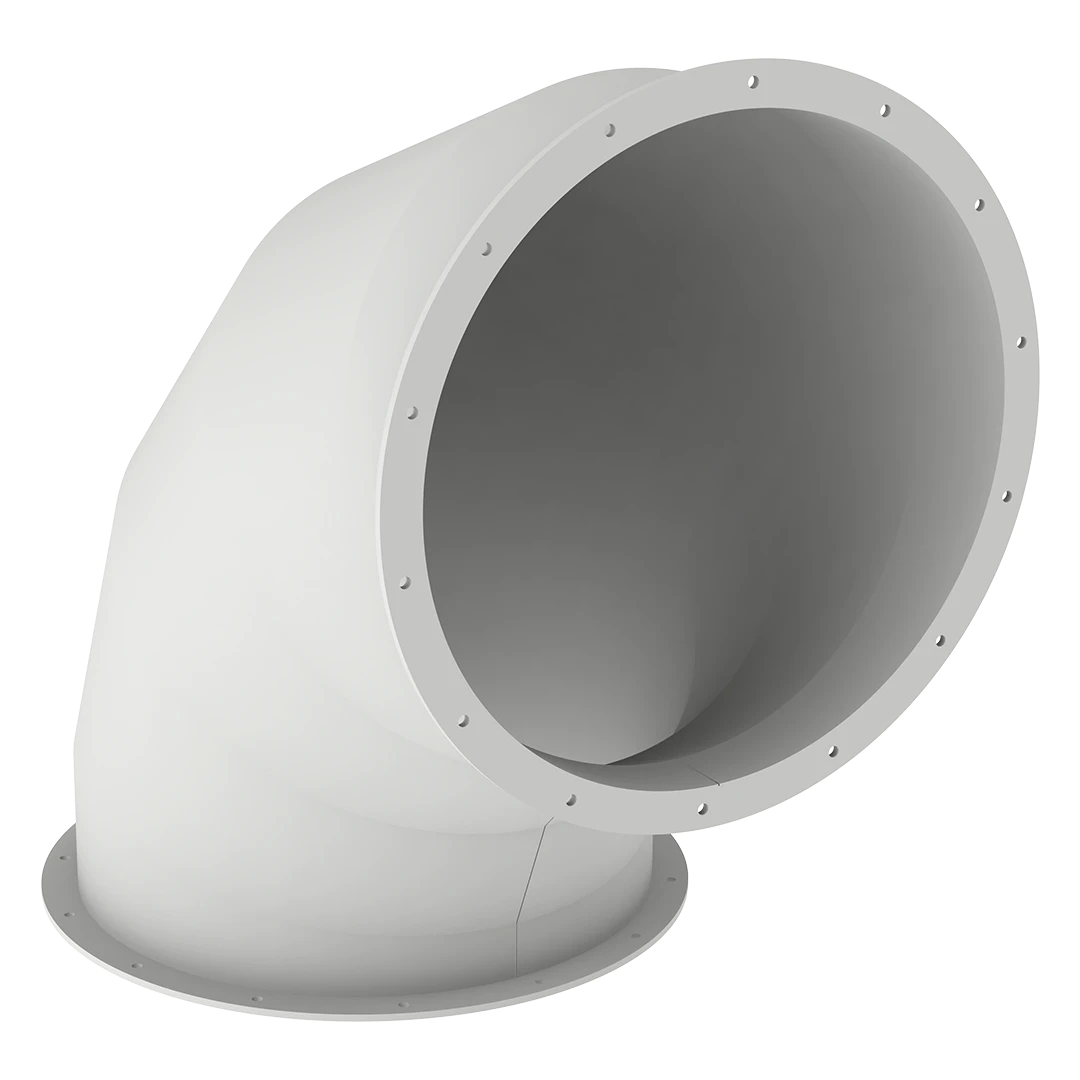

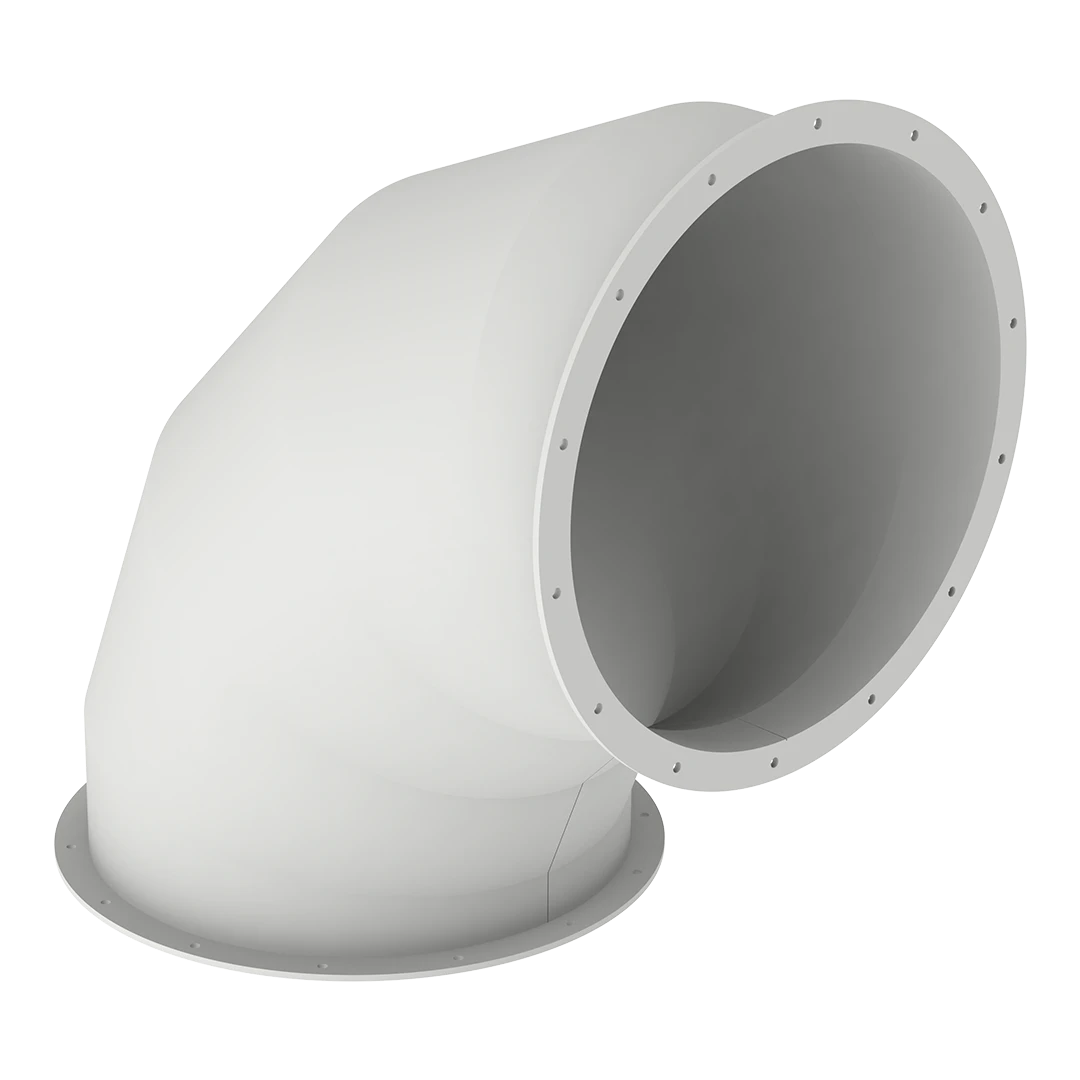

The Dust Cyclone 90° Flanged Pipe Elbow is a directional pipe component used in dust cyclone and aspiration systems to provide a smooth right-angle airflow turn. It is installed together with straight flanged pipes to allow left or right directional changes without disturbing airflow efficiency.
This elbow is positioned between the aspirator and cyclone outlet or on vertical discharge lines extending above the roof. It enables controlled air discharge while maintaining system balance. The product is manufactured from painted standard steel, chrome metal, or galvanized metal, depending on application requirements. Pipe diameter and flange dimensions are produced according to the cyclone outlet size.
Dust Cyclone 90° Flanged Pipe Elbow
APPLICATION FIELDS
90° flanged pipe elbow for directional airflow control in dust cyclone systems.► Flour mills and milling plants ► Grain and cereal processing facilities ► Feed and animal nutrition factories ► Pasta, biscuit, and bakery production lines ► Corn flour and semolina plants ► Rice and pulse processing plants ► Food production and packaging facilities ► Dust cyclone and aspiration systems ► Industrial ventilation and air discharge lines ► Material conveying and handling systems ► Cement factories ► Recycling and waste processing facilities
