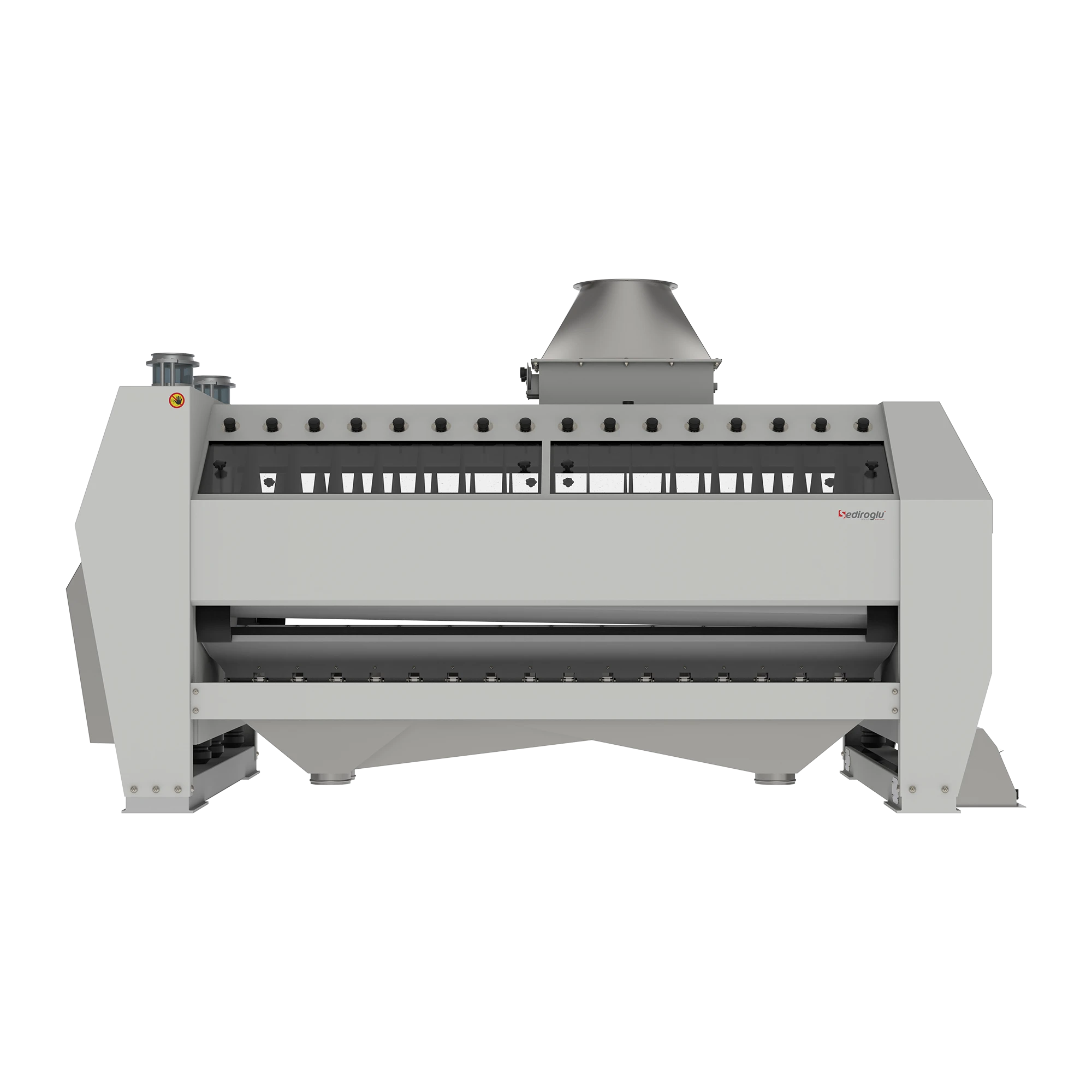

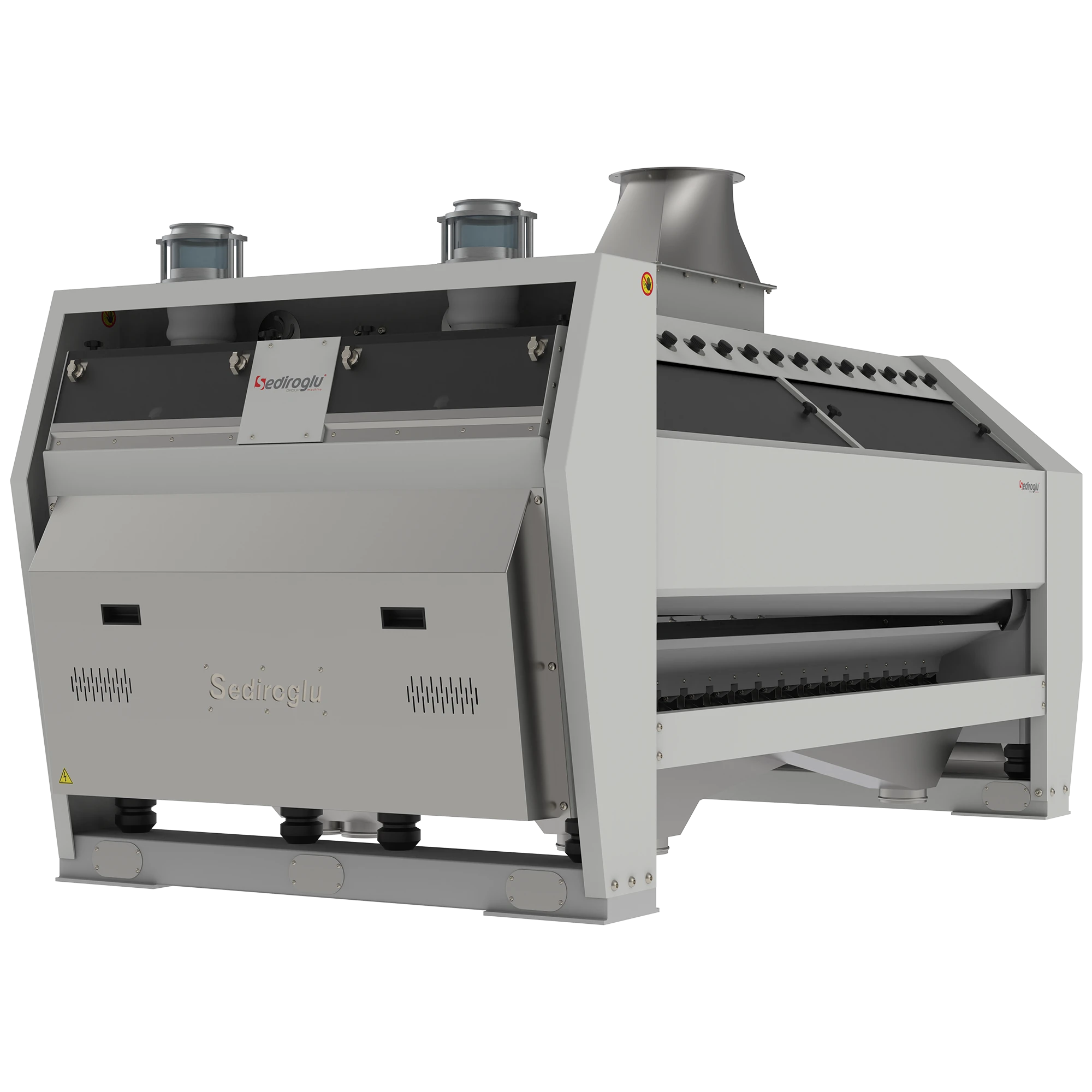

Semolina Purifier 60

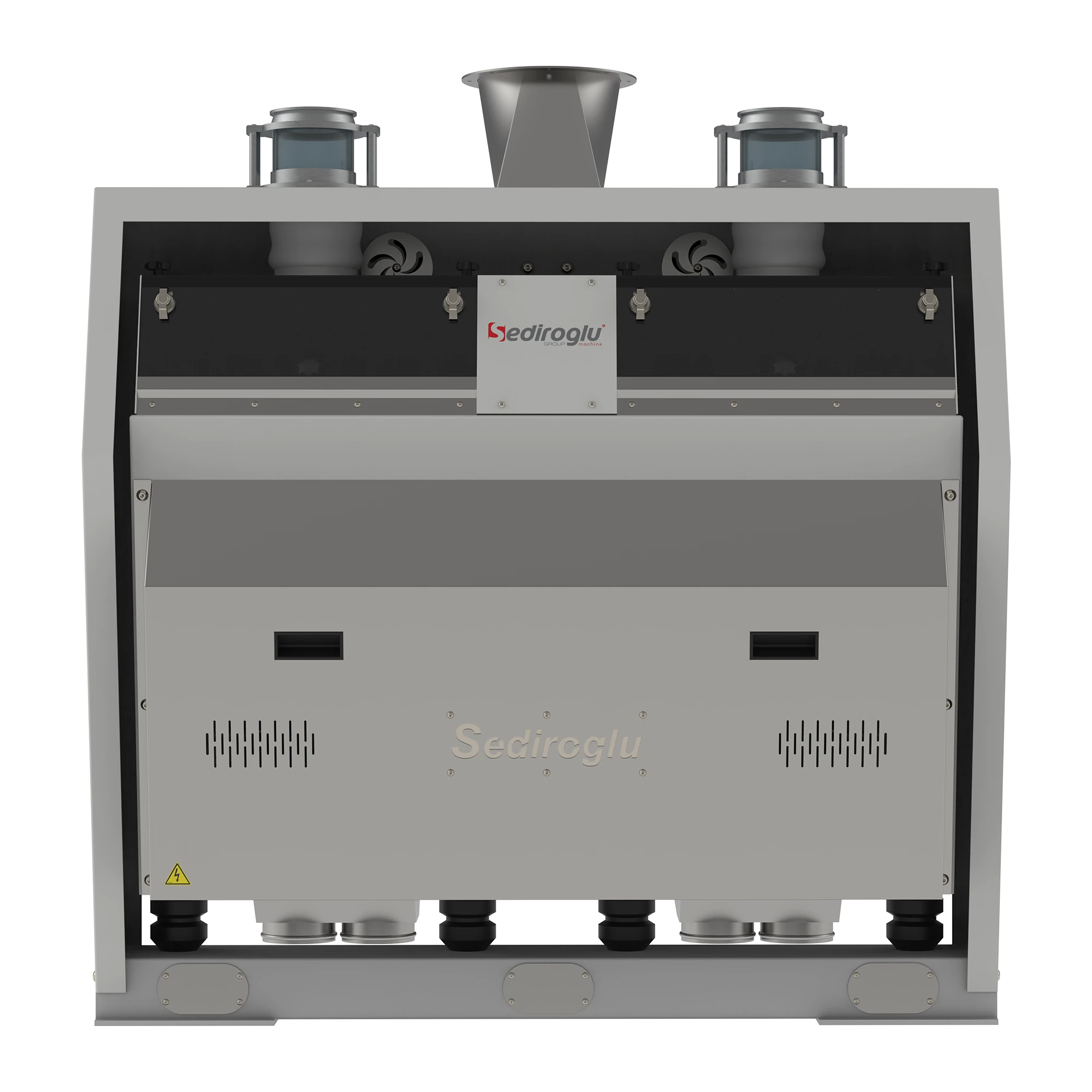

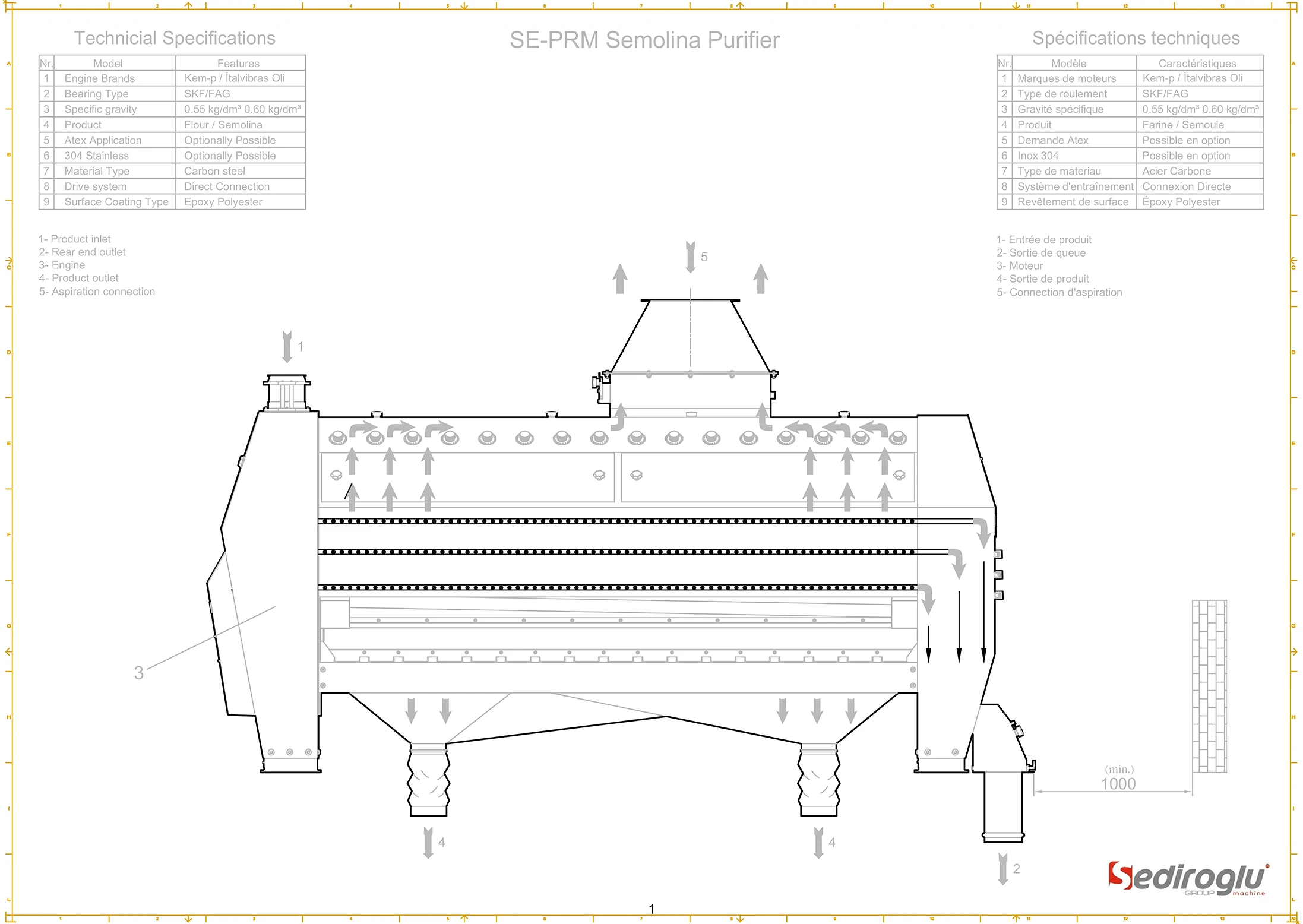

The Semolina Purifier 60 by Sediroglu Group is a high-efficiency aluminum sieve-based machine designed for precise semolina classification in flour mills, semolina production lines, pasta factories, and corn flour processing plants. Equipped with 24 robust aluminum sieve frames, the machine ensures uniform separation of coarse and fine semolina from bran, husk, dust, and light impurities. Incoming material is evenly distributed through two top entry points, directing the product across the sieve layers. Coarser fractions move to the upper sieve frames and exit through Exit 1, while finer particles progress to the middle sieve layer. Remaining coarse material is guided to Exit 2, and the finest semolina is collected from the lowest layer. Outlet flaps accurately guide each fraction to their designated collection ducts, ensuring efficient separation and minimal product loss.

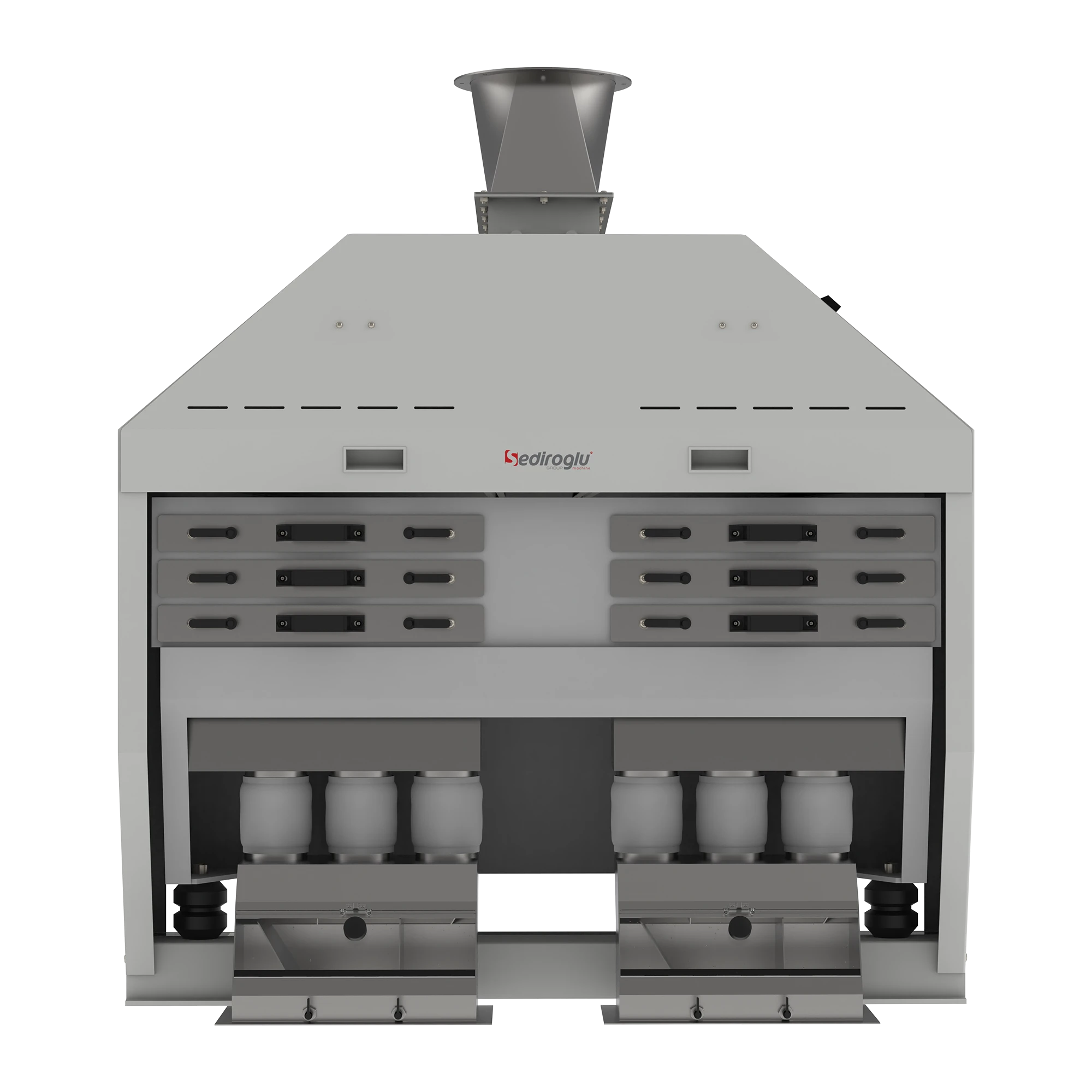

The integrated aspiration system enhances the classification process by maintaining controlled airflow above each sieve layer. The 16 adjustable air flaps, four per sieve frame, regulate air circulation to suspend fine bran particles, directing them to filtration units while preventing contamination of the classified semolina. This ensures high-quality output and maintains hygienic standards across industrial milling operations. The combination of layered sieve classification, adjustable airflow, and precision outlet flaps enables the Semolina Purifier 60 to deliver consistent, high-throughput performance with minimal maintenance requirements.

Application Areas

• Flour and semolina mills
• Pasta production facilities
• Corn flour and grain processing plants
• Pre-cleaning and final classification in milling operations
• High-capacity semolina and fine-grain processing lines

Advantages & Benefits

• Extended aluminum sieve surface for enhanced capacity and precise particle separation
• Adjustable airflow system ensures uniform vacuum and clean separation of impurities
• Lightweight and hygienic aluminum construction reduces contamination risks
• Removable Purifier Brushes enable quick and effective cleaning
• Quiet operation, minimal vibration, and energy-efficient performance
• Flexible sieve speed and outlet flap adjustments for different grain types and processing needs

Maintenance Schedule

• Weekly: Inspect aluminum sieve frames, clean Purifier Brushes, and check airflow channels and air flaps
• Monthly: Verify alignment of sieve frames, lubricate moving parts, and test airflow efficiency
• Yearly: Conduct full inspection of main frame, replace worn brushes and sieve frames, and recalibrate the airflow system

The Semolina Purifier SE-PRM 60 by Sediroglu Group is the perfect solution for modern milling operations requiring reliable, high-capacity, and hygienic semolina classification. Its advanced aluminum construction and airflow-controlled sieve system ensure consistent semolina quality, improved productivity, and minimal operational downtime.

Purifier Brush Performance – SE-PRM 60

The Semolina Purifier 60 by Sediroglu Group is equipped with 48 advanced brushes, two per sieve frame, providing forward and backward motion to thoroughly clean each sieve cloth. Proper brush operation is essential: trapped bristles in sieve pores can stop movement, obstructing precise classification of semolina and bran separation. The machine’s correct alignment and motor calibration significantly affect brush motion. Consistent cleaning of all 48 brushes ensures maximum sieve efficiency, accurate particle separation, and high-quality semolina output for industrial milling operations.
