SE-FB-25

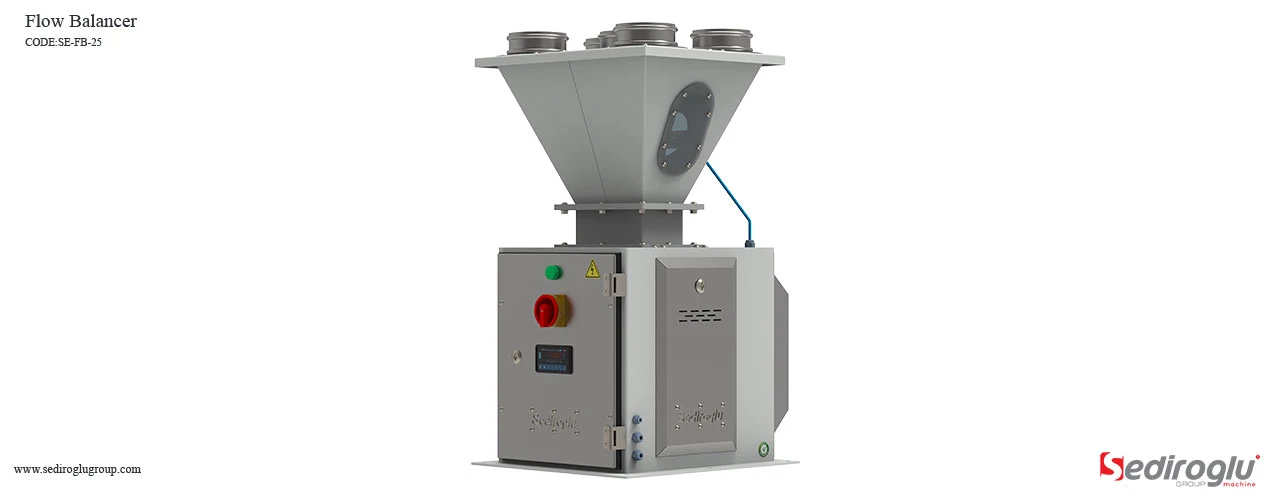

We strongly recommend watching our detailed demo video, which helps you evaluate not only the technical specifications but also the machine’s real-life working principle, its influence on product flow, the technological advantages that enhance process efficiency, the practical ease it provides in terms of maintenance and operation, its durability level, and the overall value it will add to your production line before making your purchasing decision.
Subscribe to see our latest machines and product videos first.
Stay Updated With Our Latest Product Videos — Follow Our YouTube Channel
Visit our YouTube channel to explore our products more closely, watch real operation videos, and stay instantly informed about the new machines we develop. On our channel, you can find detailed presentations of all our models, performance demonstrations, technical explanations, and application examples—helping you make more confident decisions throughout your investment process. By subscribing, you gain access to our continuously updated content and receive immediate updates on upcoming products, new technologies, and future developments.

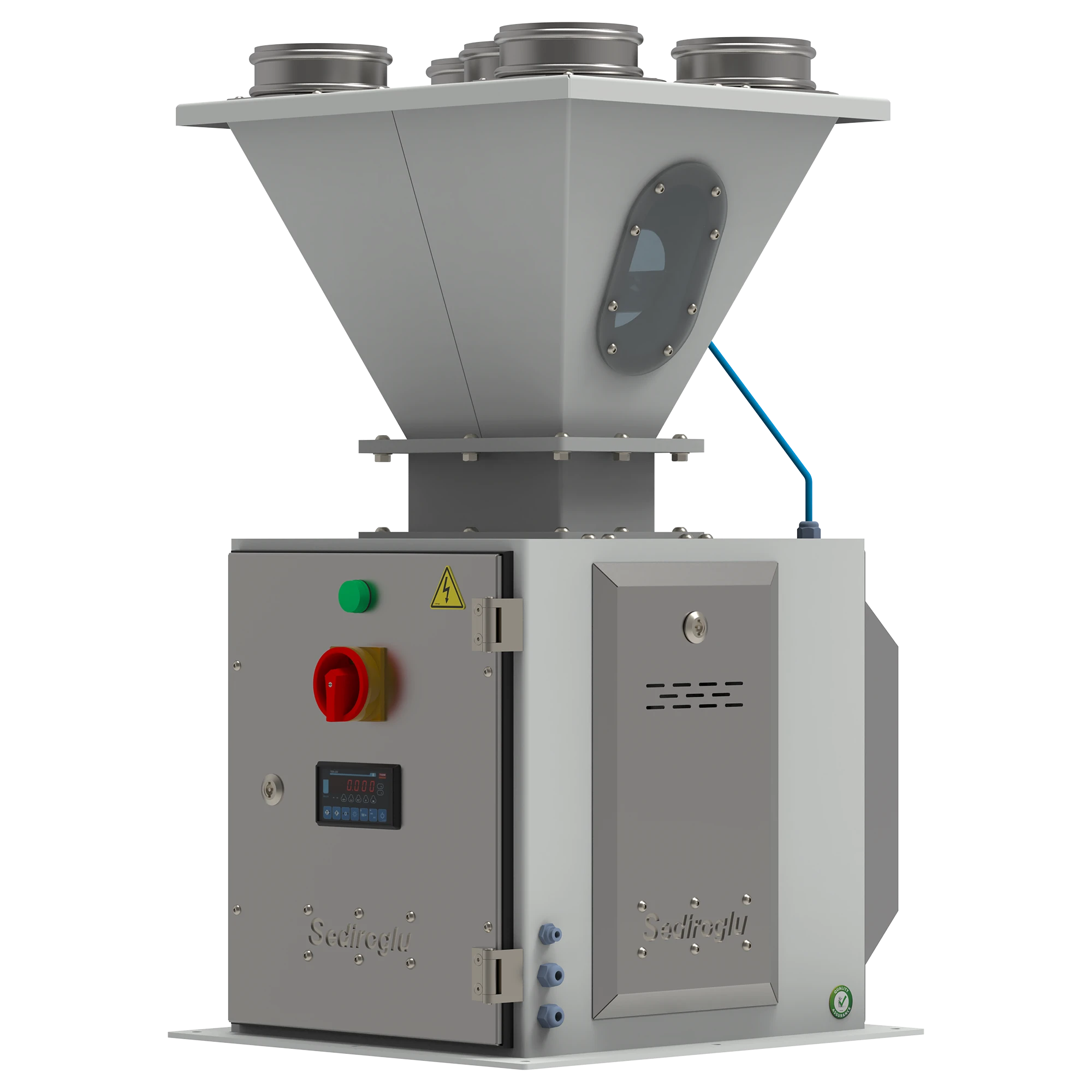

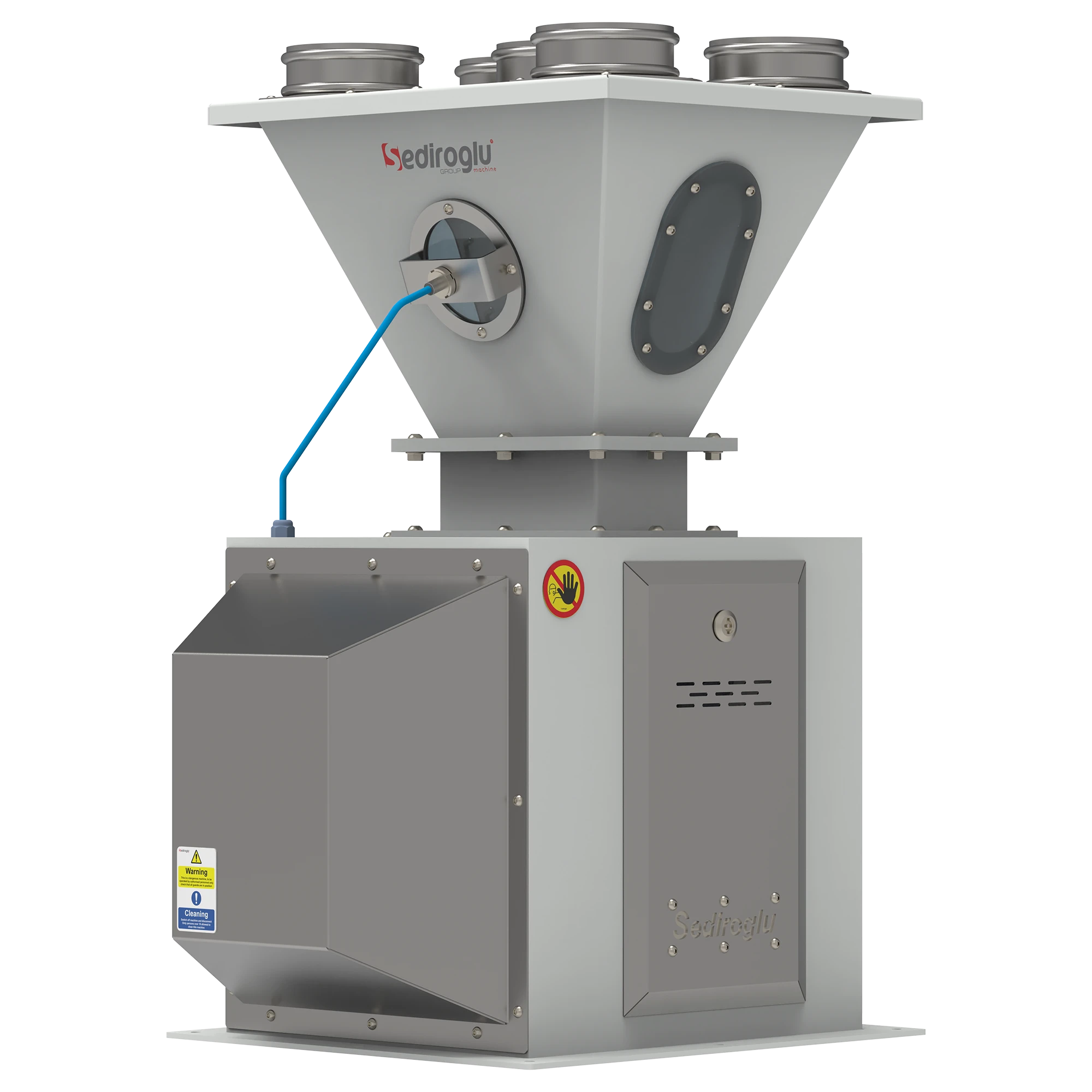

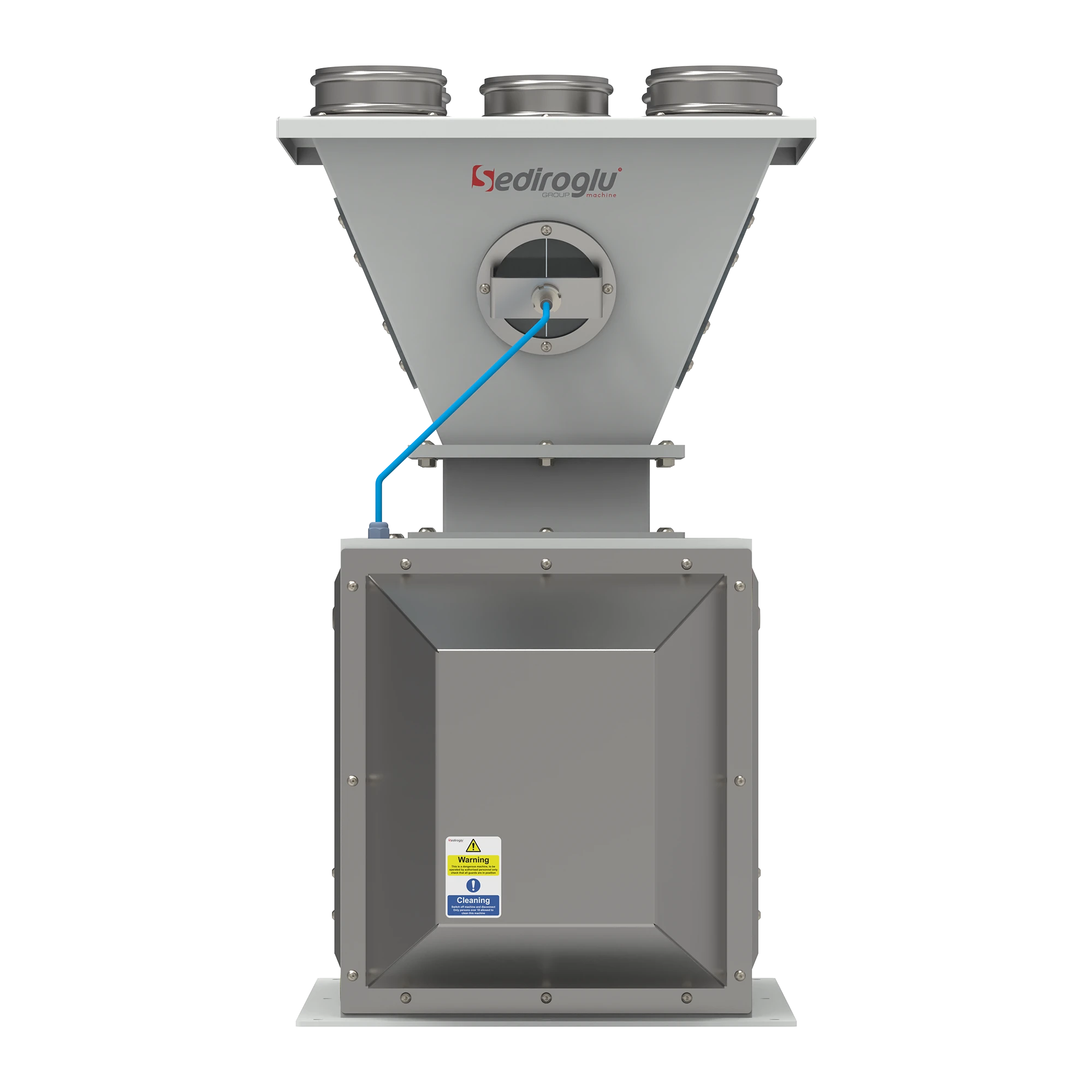

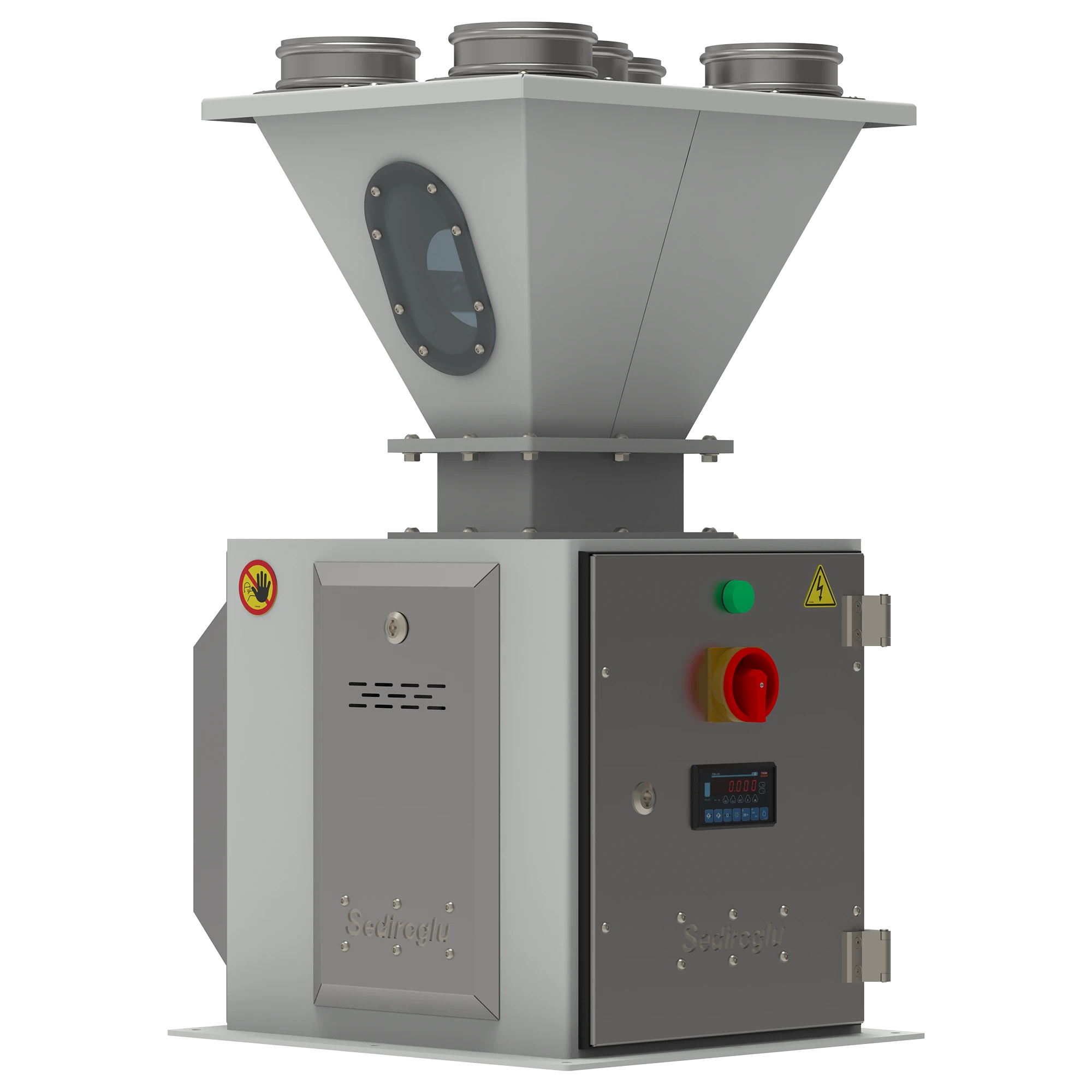

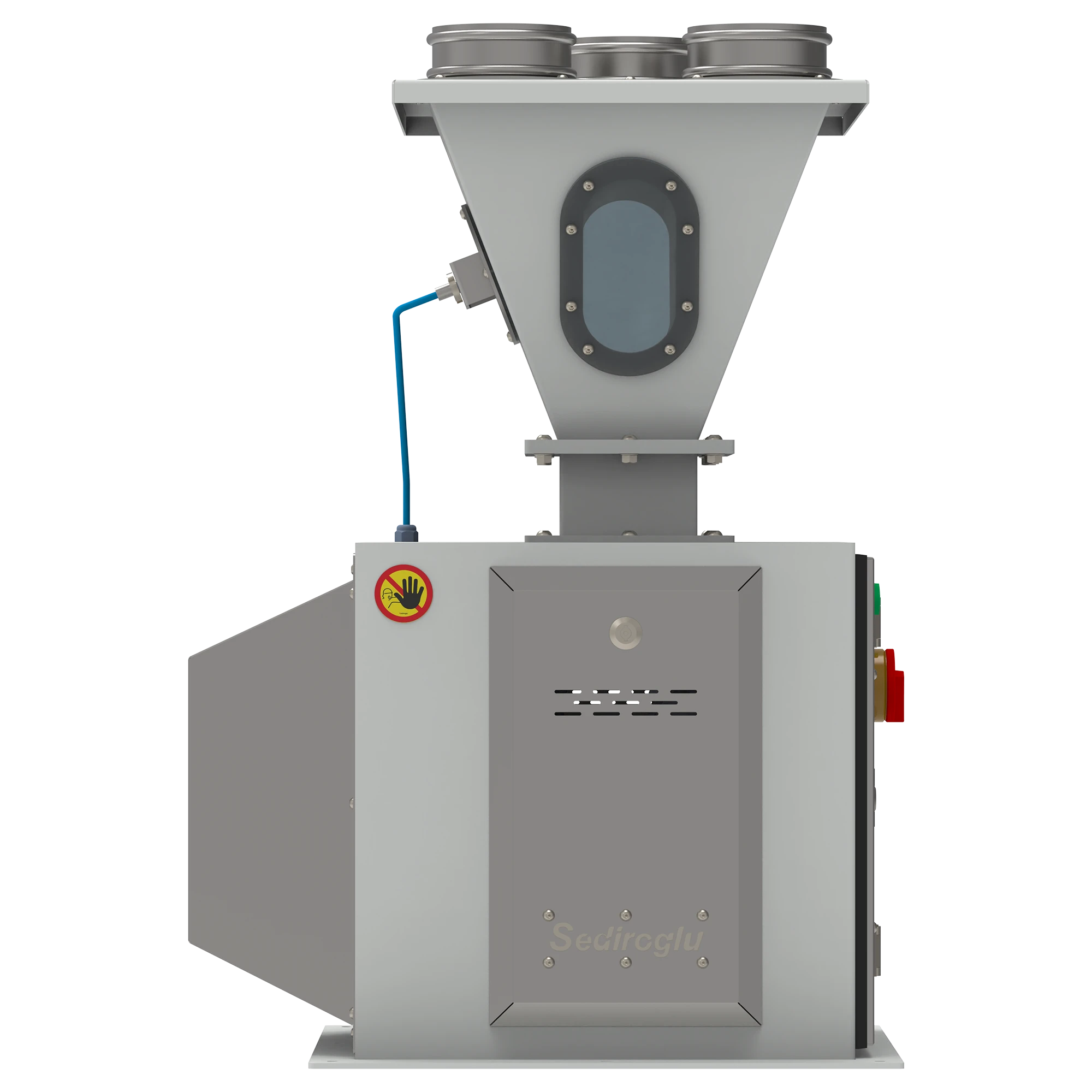

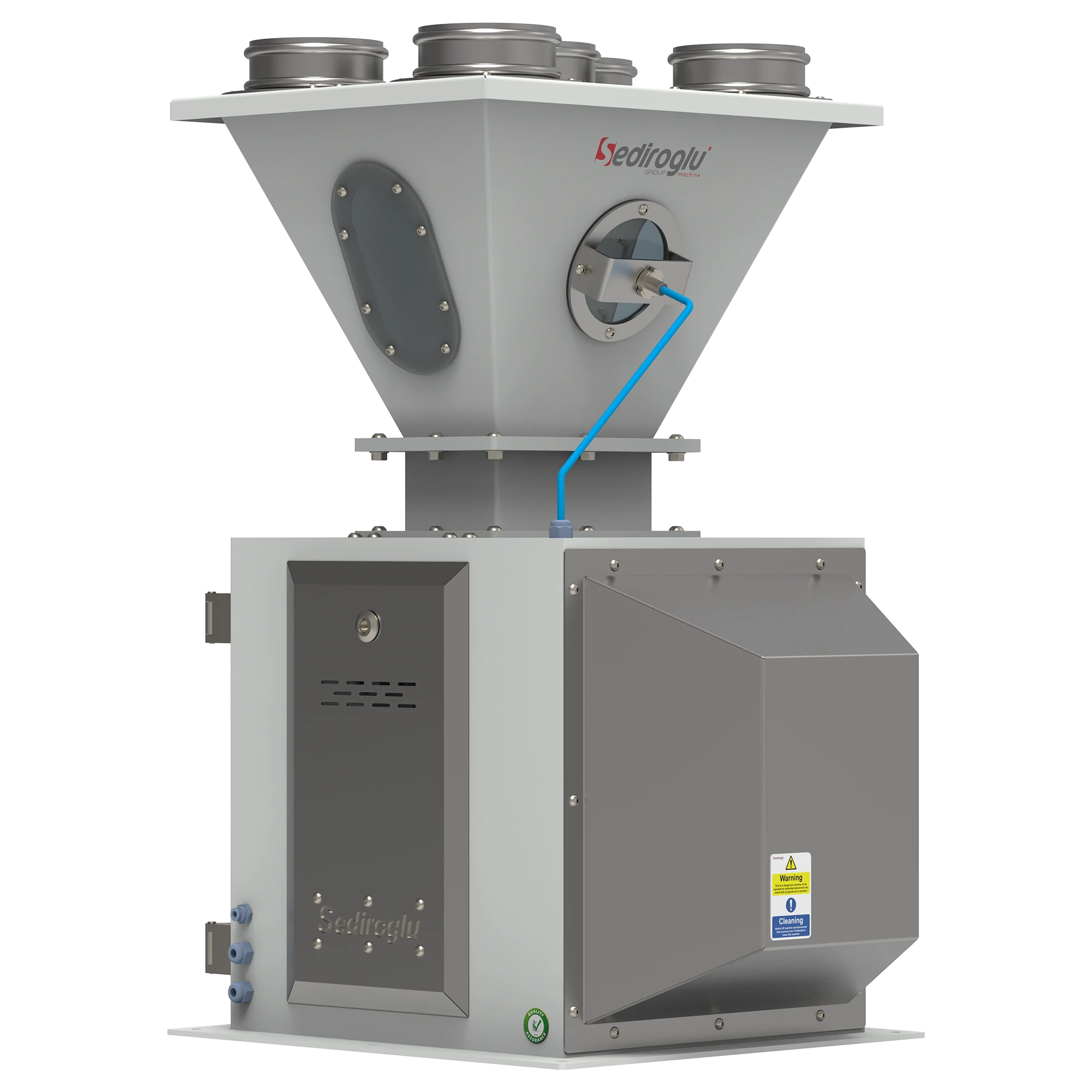

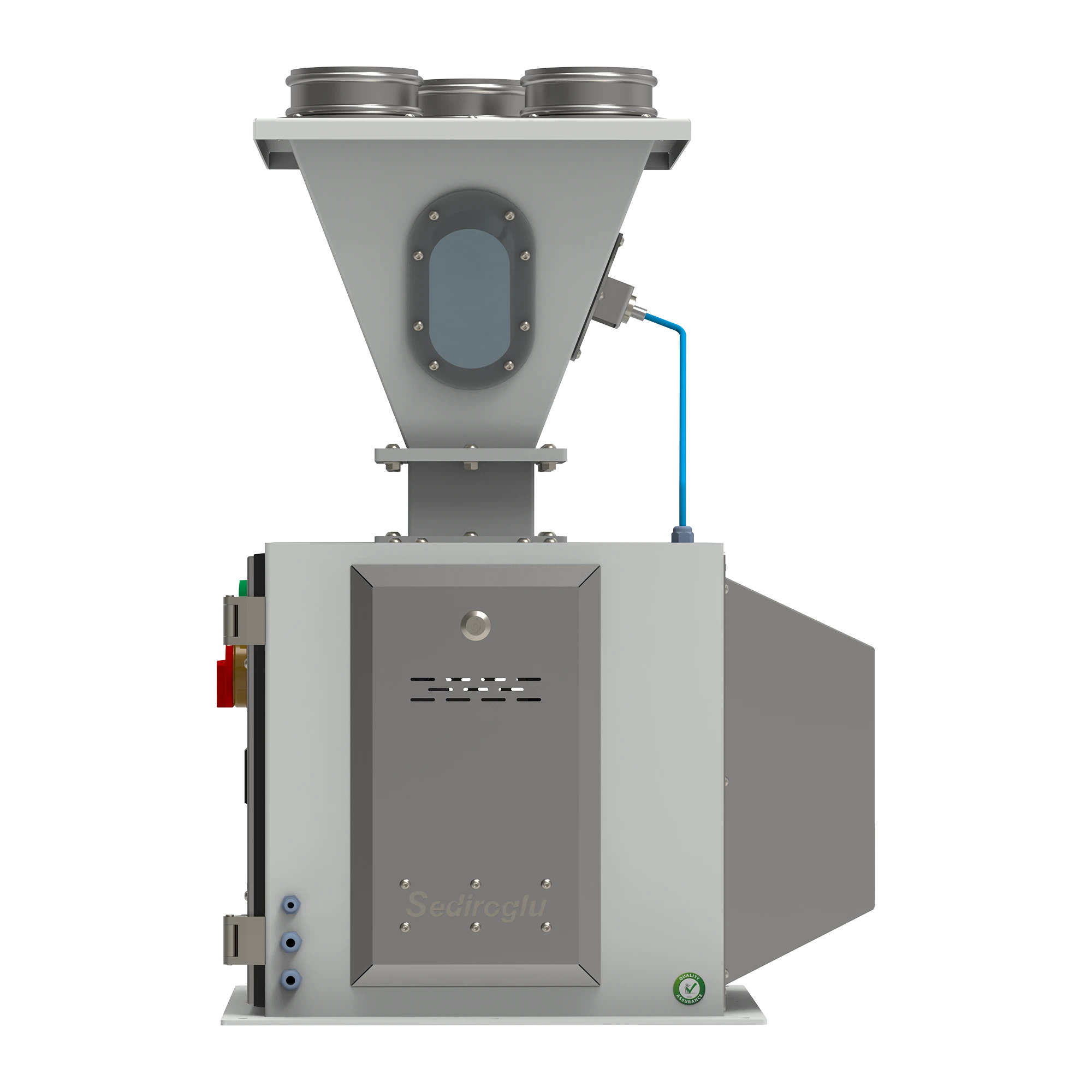

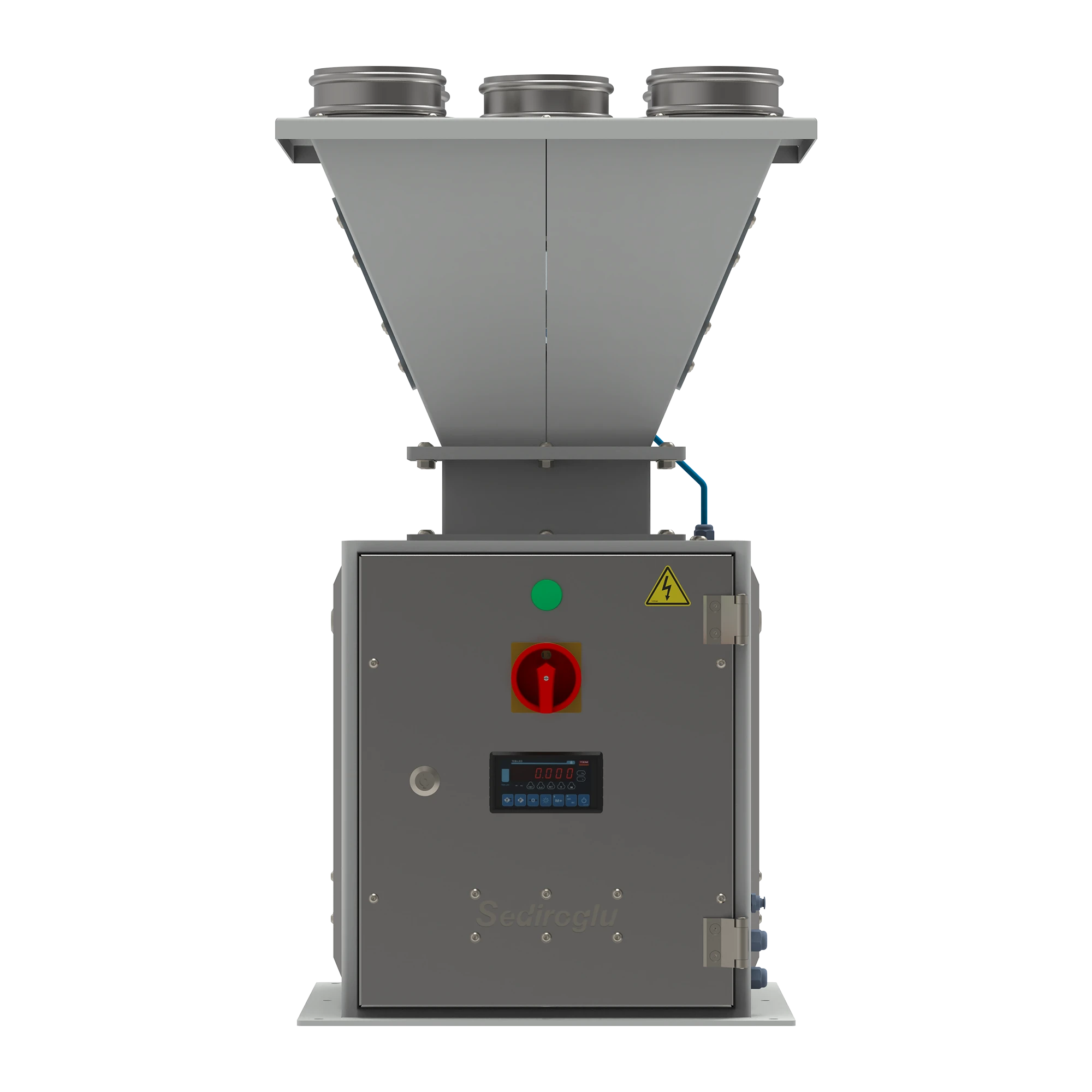

Flow Balancer 25 TPH – Automatic Ingredient Flow Control and Precision Blending System
Manufactured by Sediroglu Group
Working Principle
The Flow Balancer 25 TPH manufactured by Sediroglu Group is designed for accurate ingredient dosing, controlled product flow and continuous blending operations in flour mills, feed plants, grain silos, pasta factories and rice processing facilities.
The product enters the machine through the upper bunker section. The standard machine is designed with five different inlet points. According to customer requirements, inlet quantity can be increased or reduced depending on the production line and blending capacity.
Inside the bunker there is an integrated level sensor that continuously monitors product quantity and keeps the feeding level stable during operation.
After entering the bunker, the product moves toward the internal control flap section. The machine includes a digital indicator and operates with 220 Volt electrical power.
A LINAK industrial motor controls the internal flap movement and adjusts how much the flap opens or closes based on the required percentage.
The machine is installed directly on top of a screw conveyor.
If the end user has four different products in separate silos, one Flow Balancer can be installed under each silo. Every machine can be adjusted independently according to the desired product percentage.
All materials then flow into a single screw conveyor with a balanced and controlled mixing ratio.
The system can also be produced in stainless steel depending on customer requirements.
For automation integration, the machine supports Modbus RTU connection and can be connected to the customer’s electrical panel and controlled directly from the control room or industrial computer.
Applications
Flour mills and semolina plants
Feed mills and animal nutrition facilities
Grain silos and wheat storage systems
Rice processing plants
Pasta factories
Barley processing plants
Food production facilities
Ingredient blending systems
Screw conveyor feeding systems
Industrial grain mixing lines
Advantages
Precise ingredient ratio control
Adjustable inlet quantity depending on project requirements
Integrated bunker level sensor
LINAK motor controlled flap movement
Stable material flow control
Continuous automatic blending
220 Volt industrial operation
Stainless steel production option
Modbus RTU automation support
Easy PLC and SCADA integration
Reliable continuous production
Low maintenance operation
Flexible installation on screw conveyors

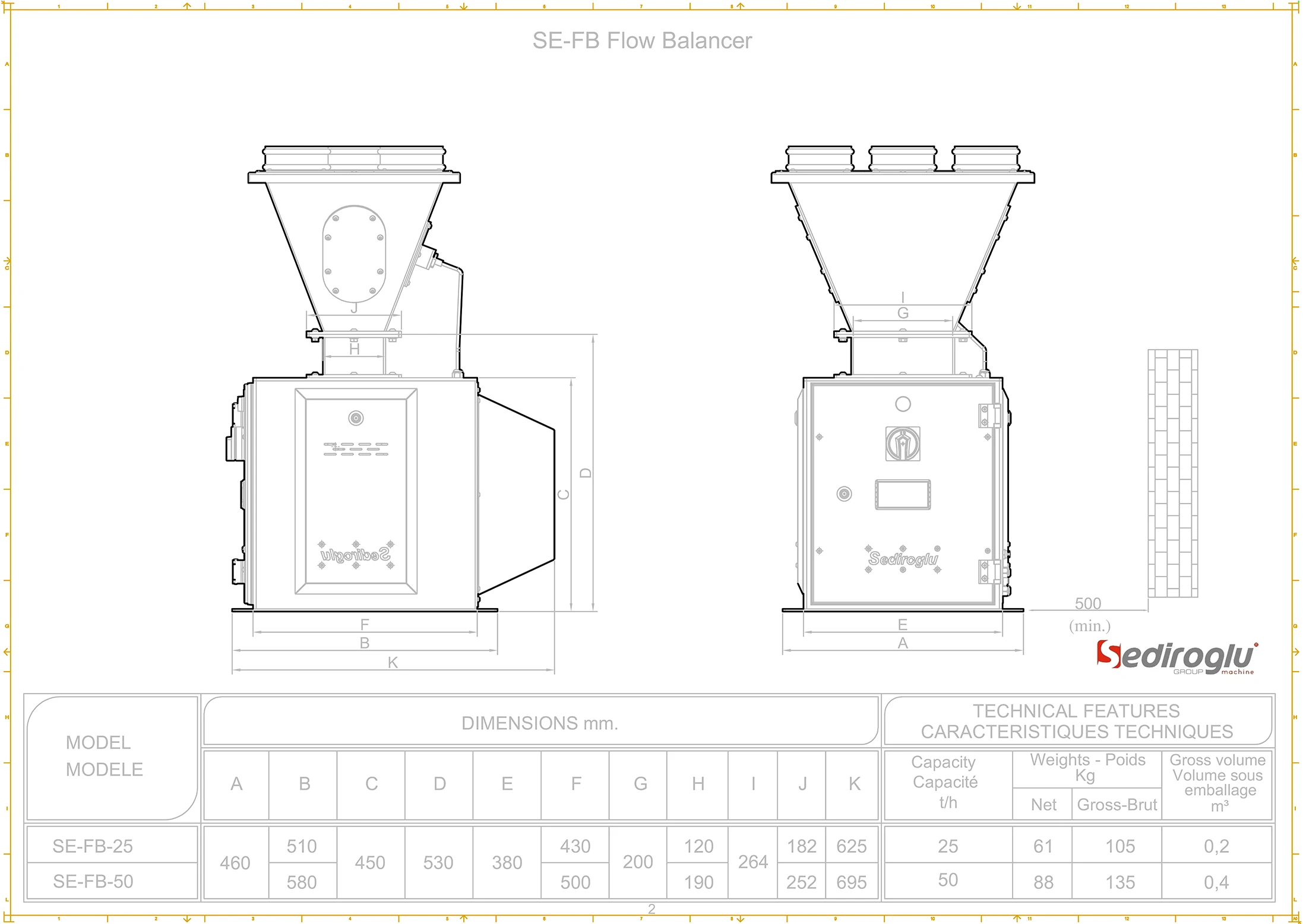

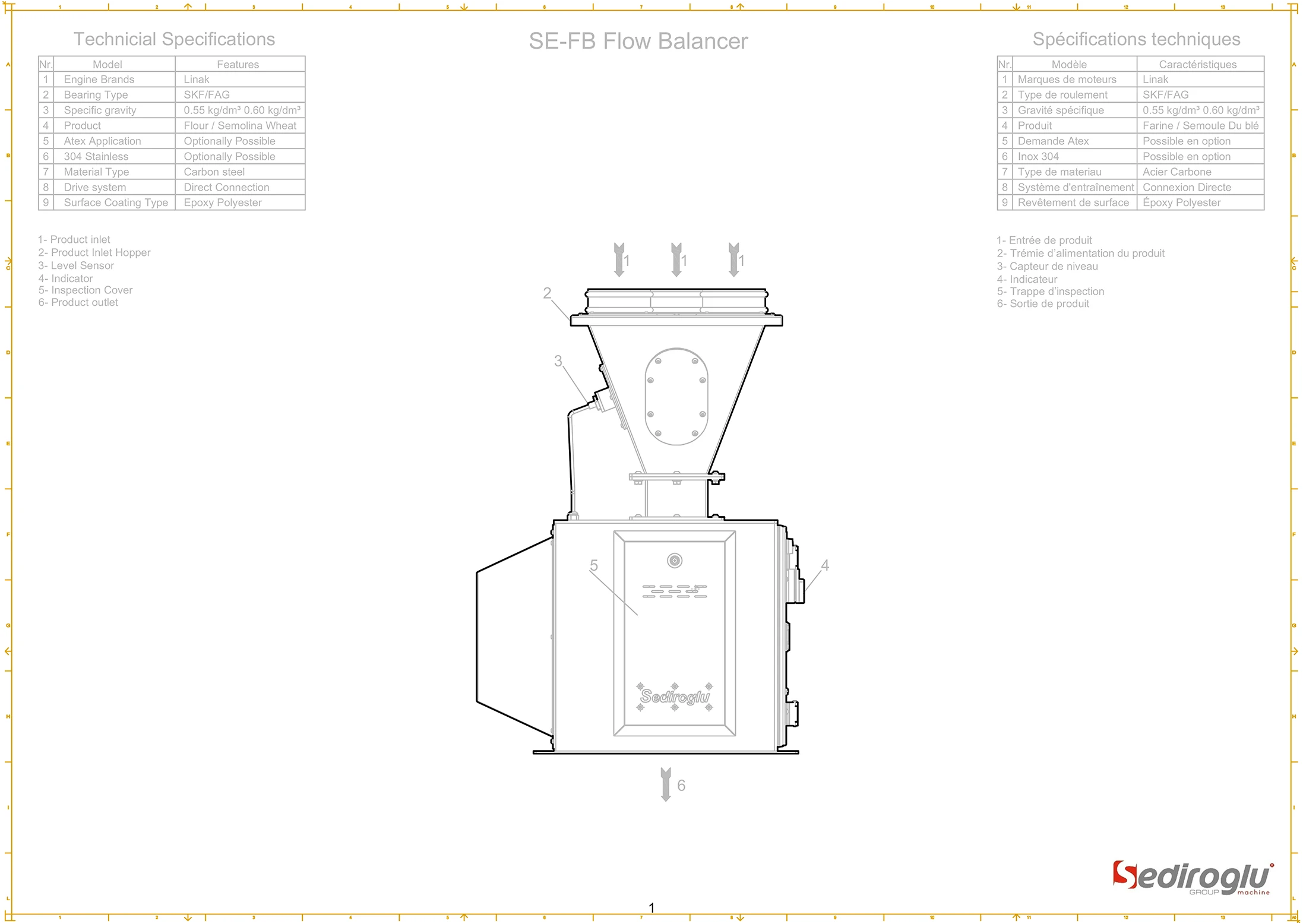

Technical Specifications
Machine Type: Flow Balancer
Product Code: SE-FB-25
Capacity: 25 TPH
Operating Voltage: 220 V
Motor System: LINAK actuator motor
Flow Control: Automatic flap percentage control
Indicator: Digital display system
Communication: Modbus RTU compatible
Bunker Entry: 5 inlet points (customizable)
Sensor System: Level sensor integrated
Mounting: Screw conveyor mounted
Body Material: Painted steel or stainless steel
Operation: Continuous industrial blending
Maintenance
Daily
- Check bunker feeding area
- Verify flap movement
Weekly
- Clean product contact areas
- Check sensor response
Monthly
- Inspect LINAK motor movement
- Check indicator and automation connection
Yearly
- Full mechanical and electrical inspection
Additional Benefits
Sediroglu Group Flow Balancer 25 TPH helps industrial plants maintain accurate product ratios, stable material movement and reliable blending quality.
The system improves production control, reduces manual adjustment and supports continuous industrial operation with efficient and consistent product feeding.
