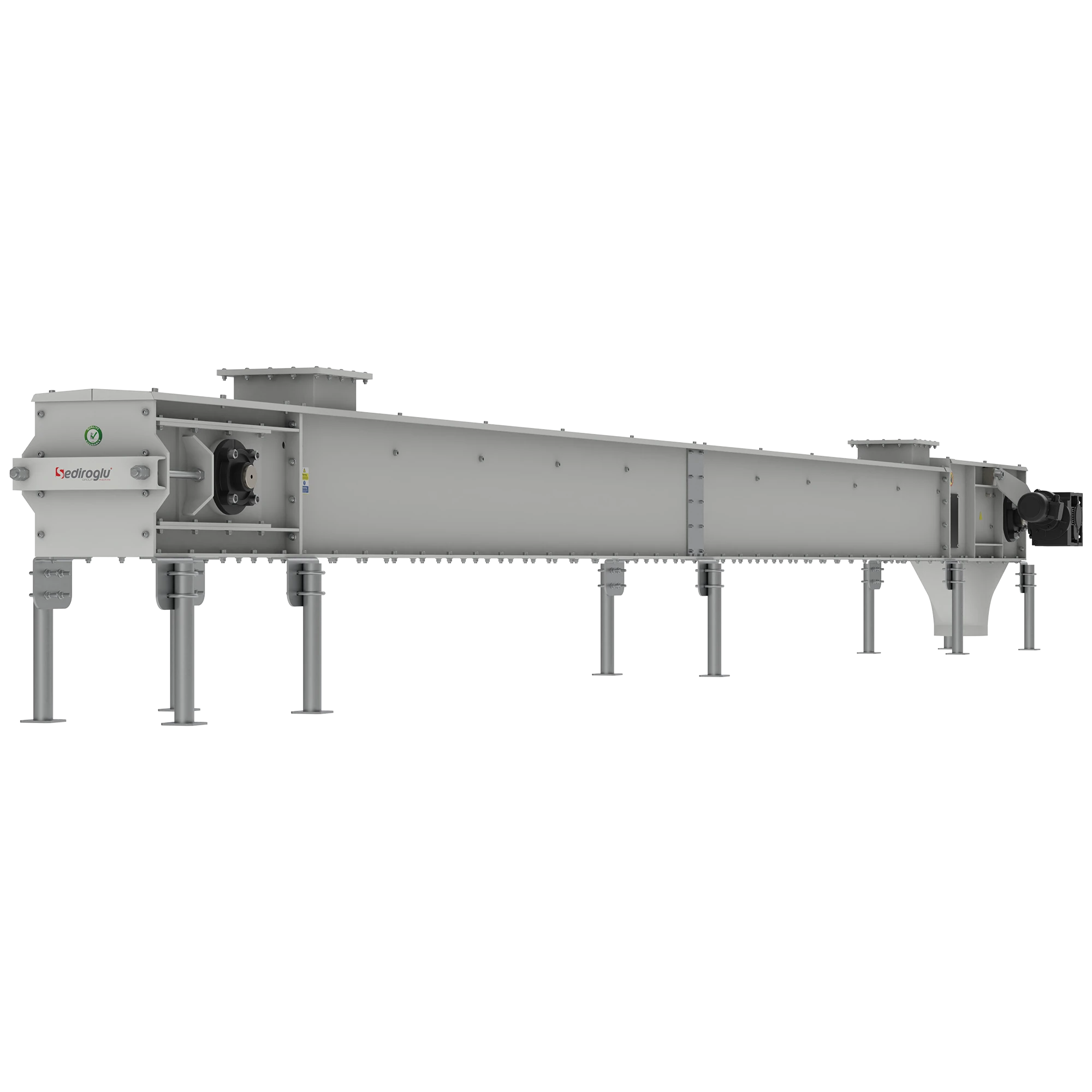

Chain Conveyor 20

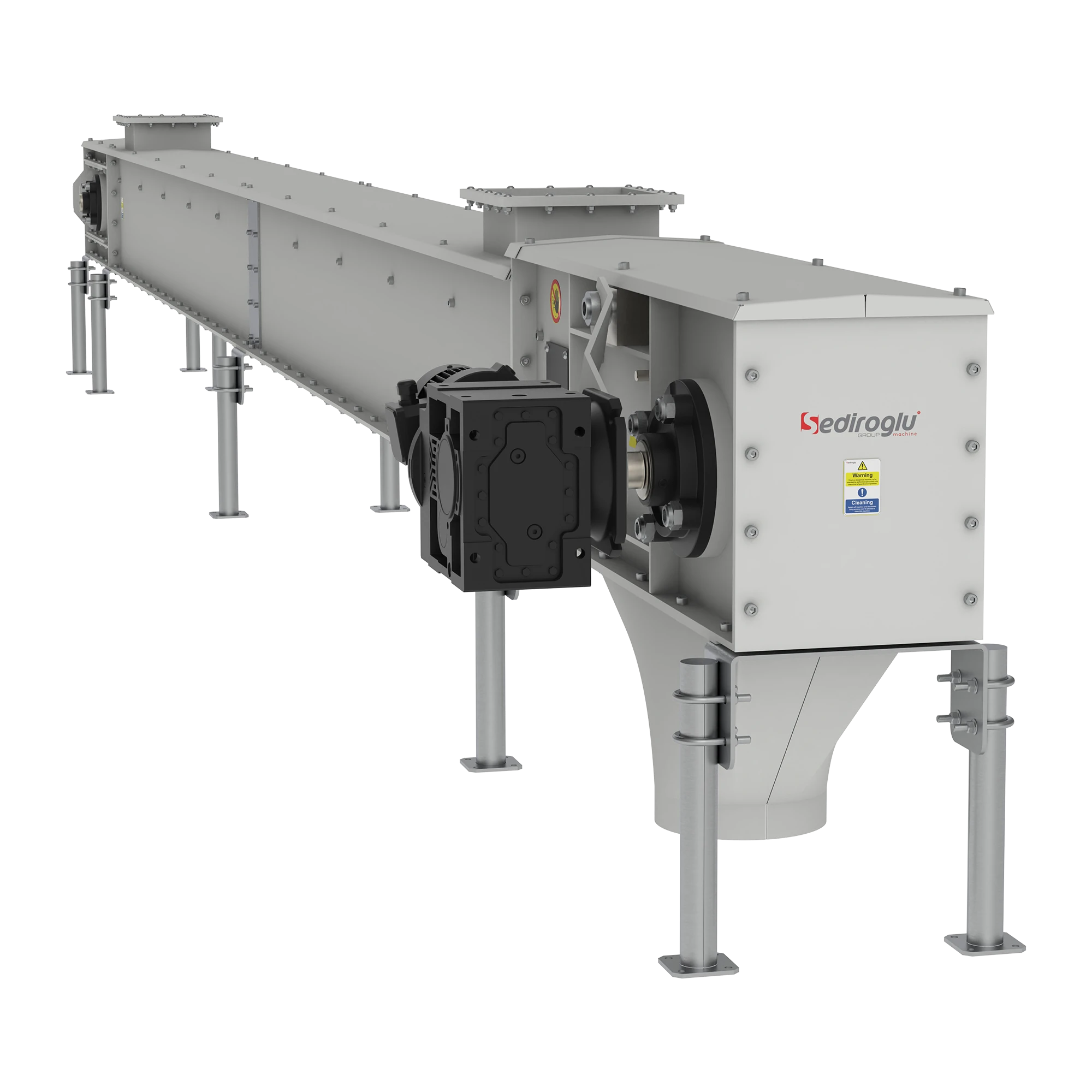

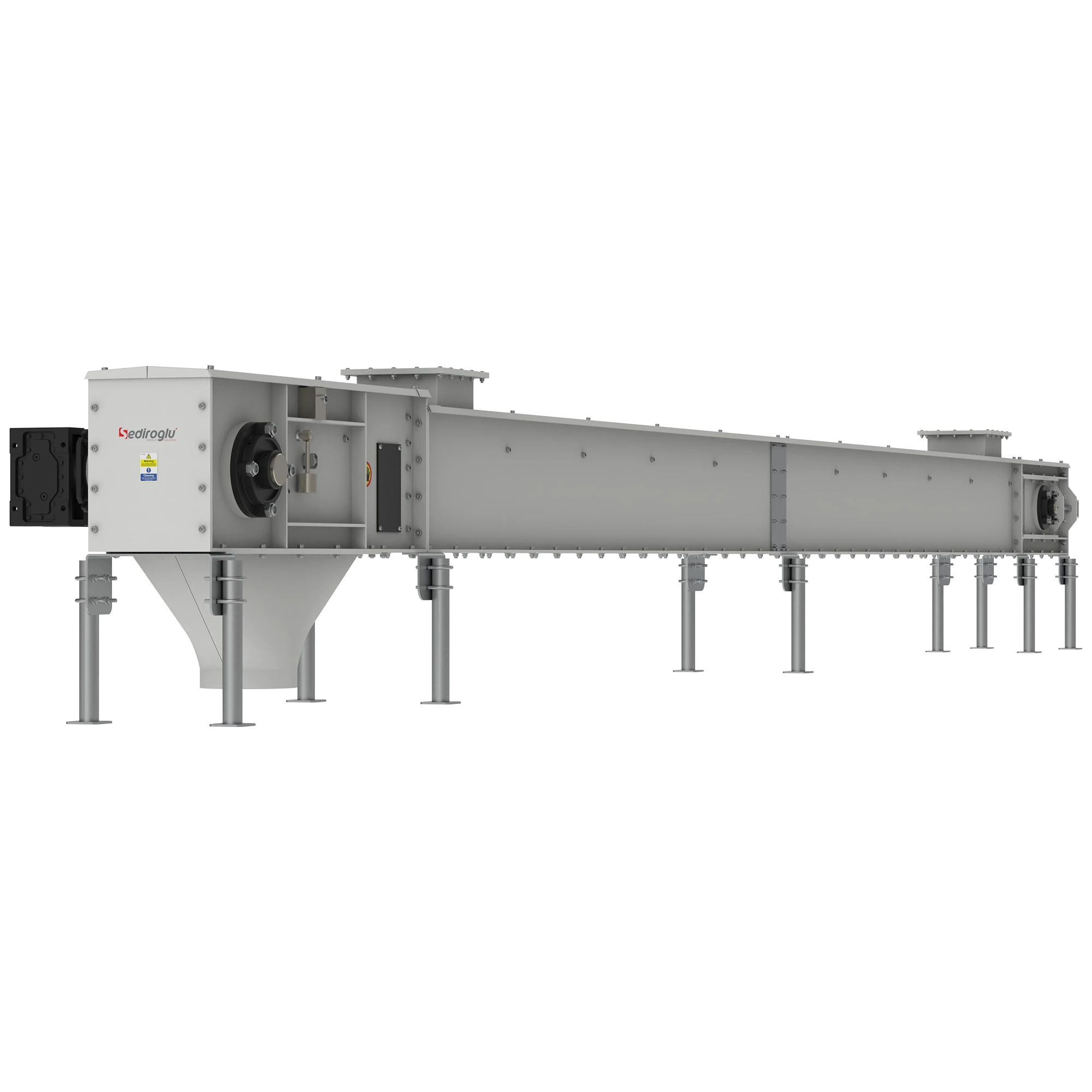

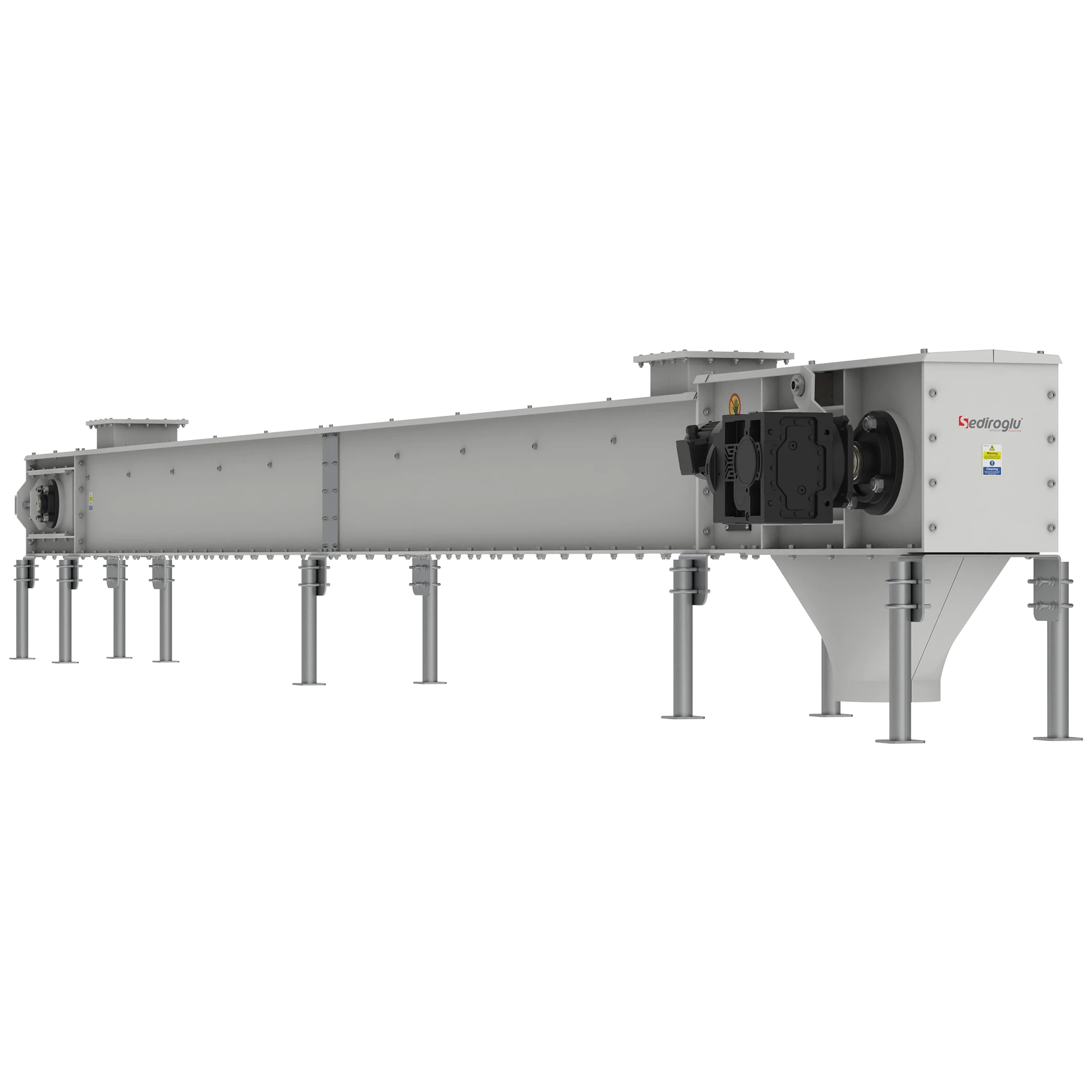

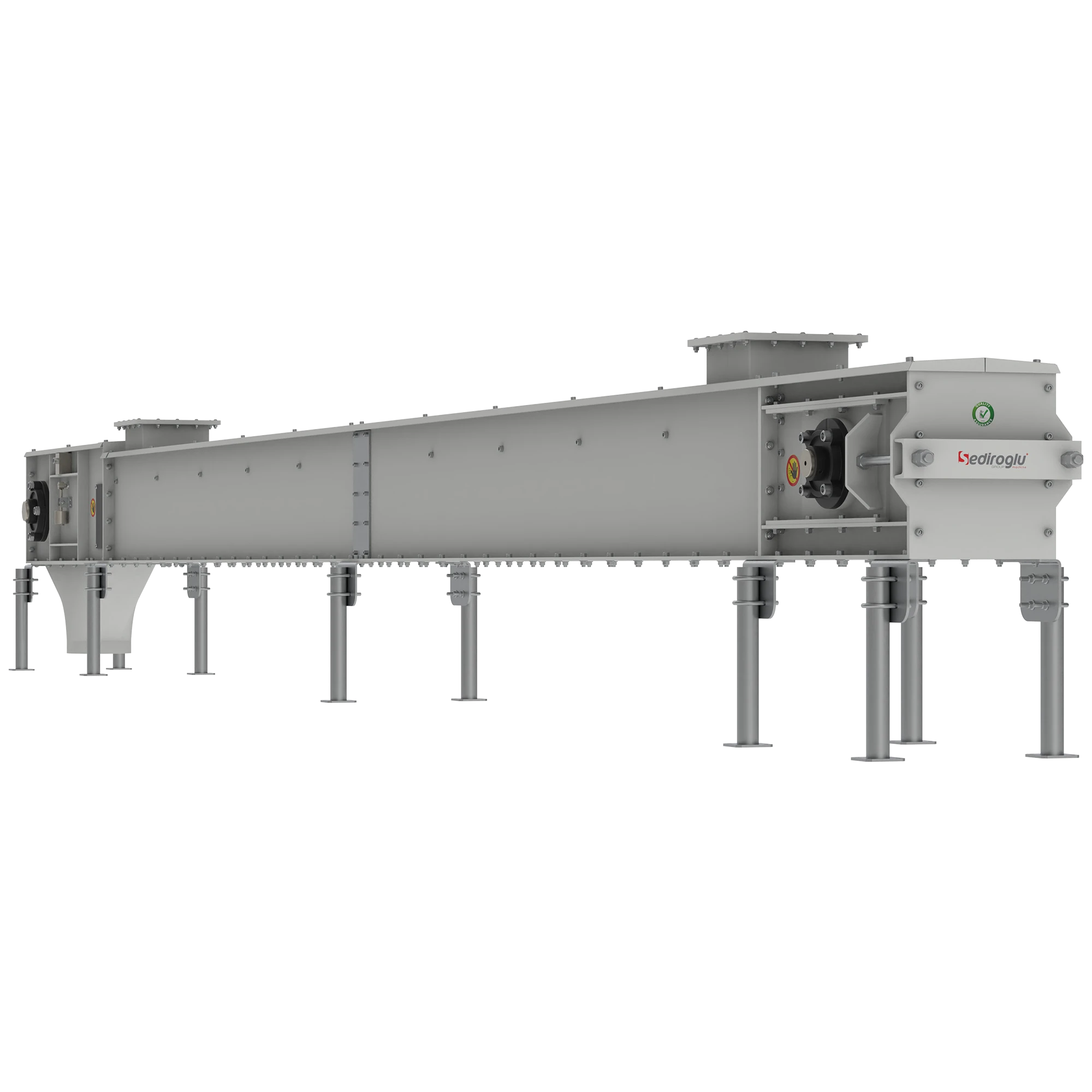

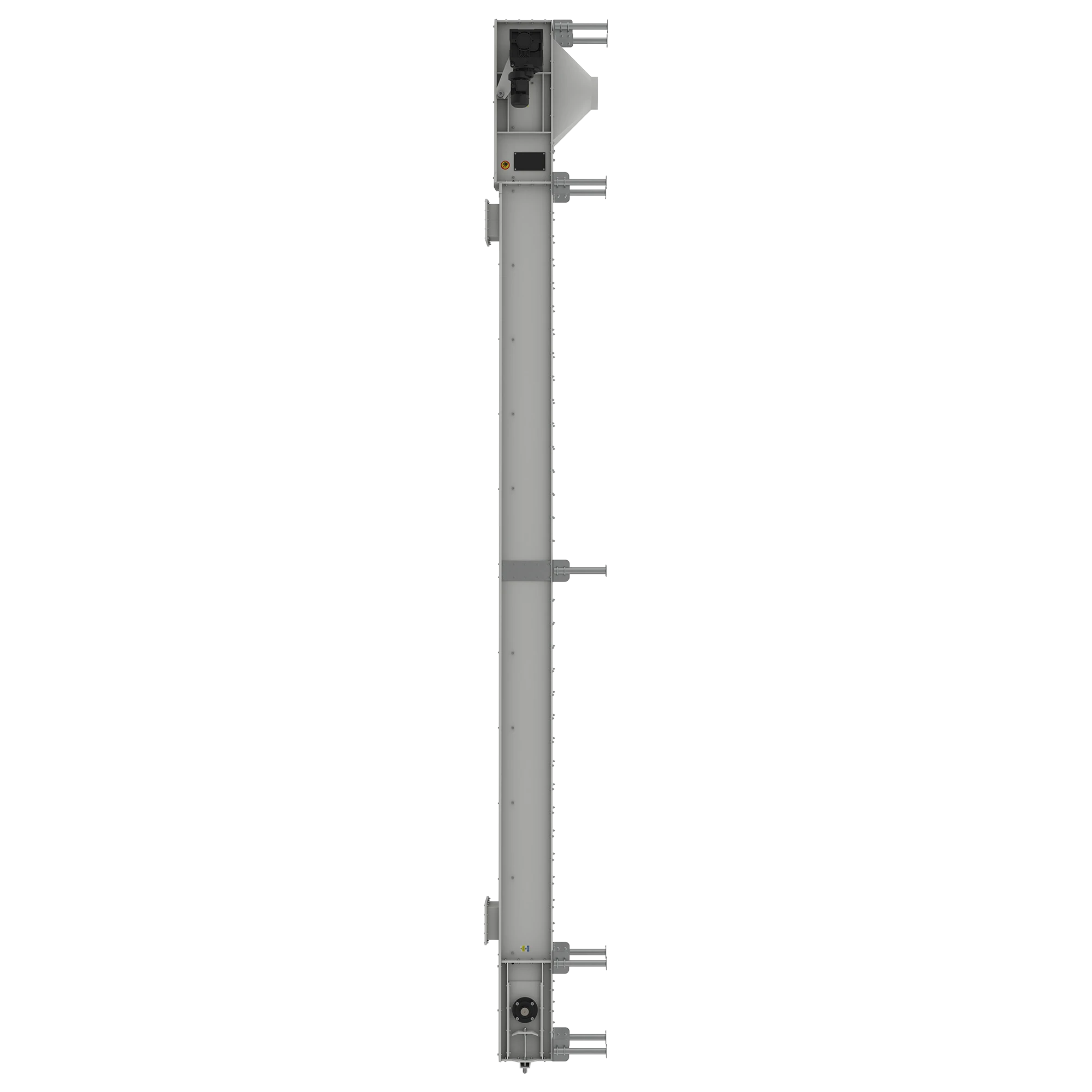

SEDIROGLU Group’s SE-CC-20/20 Chain Conveyor system transports materials safely and at a consistent speed via a chain moving along the lower section. The chain’s return path is guided along a central rail, circulating around a gear at the outlet and an idler pulley at the inlet, ensuring controlled material flow. This design provides highly efficient, uninterrupted conveying in flour, semolina, and grain silos. Additionally, it delivers safe and continuous material transfer in confectionery and chocolate production lines as well as in chemical production and filling plants, and wood chip and shavings handling systems, enhancing industrial process efficiency. SEDIROGLU Group’s engineering approach optimizes all conveying needs with multiple inlet and outlet options.
Machine code:
SE-CC-20/20
Metal Feature
Sediroglu Group lets you select the metal feature that best suits your machine, ensuring optimal performance and meeting your operational needsSpare Parts
Select the spare parts required for your machine based on your operational needs, ensuring continued performance and minimizing downtimeMachine Motor Specification
Select the motor brand you want for your machine to ensure optimal performance, reliability, and compatibility with your specific operational requirementsThe Answers to Your Questions Are Here
We've answered the most frequently asked questions about the product. From technical details and ease of use to maintenance and spare parts information, you can find comprehensive answers here. If you don't find what you're looking for, don't hesitate to contact us—we'd be happy to help.
SE-CC-20/20 is designed for safe and continuous material transport in flour, semolina, and grain silos, as well as bulgur and lentil plants. Its compact frame and optimized chain return mechanism prevent material accumulation, providing high performance and long service life.
With a single chain and robust steel casing, SE-CC-20/20 operates reliably in wheat, flour, and semolina plants. Welded flights and bolted scraper flaps optimize chain movement, while wear plates at the bottom prevent material build-up and ensure long-term durability.

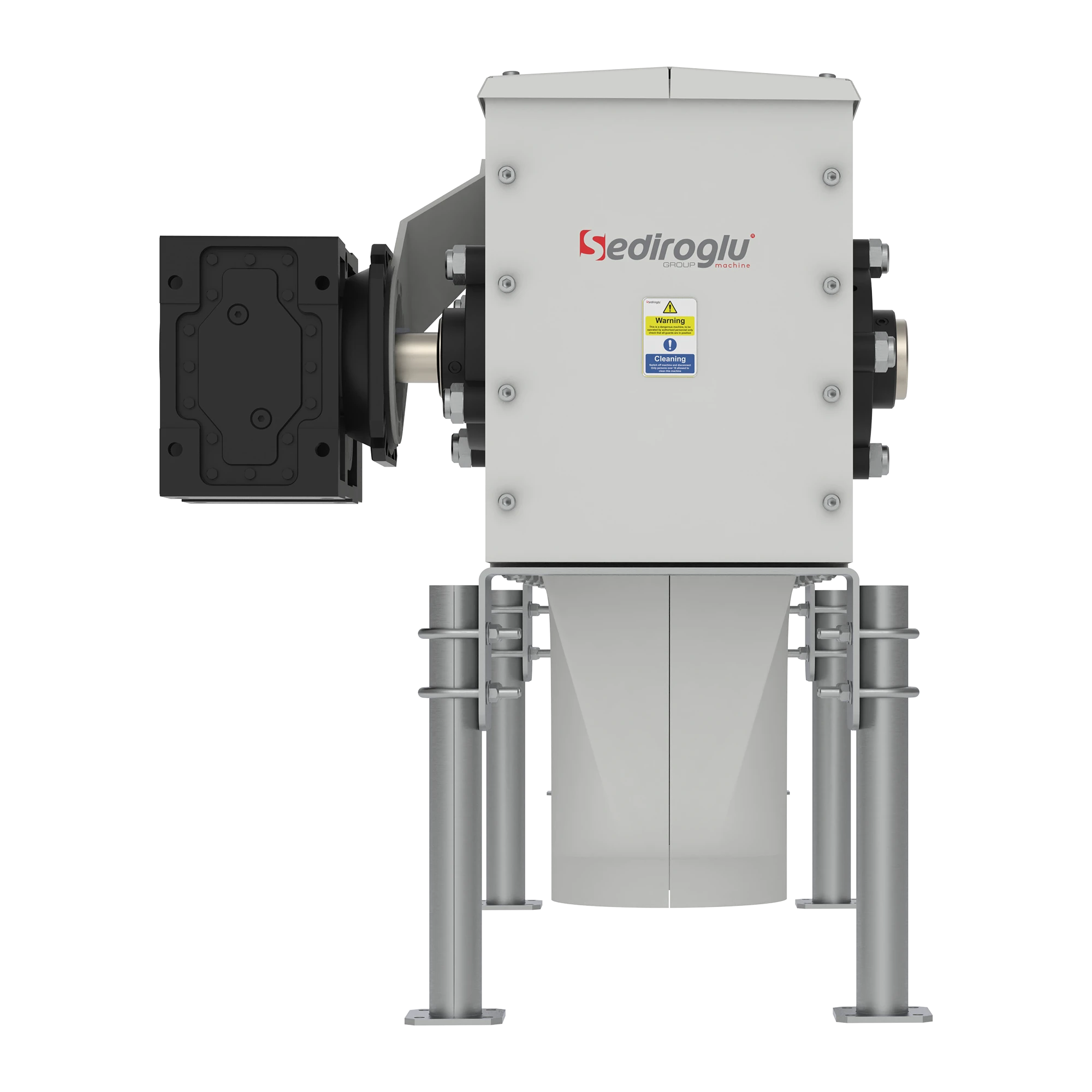

SE-CC-20/20 is equipped with parallel shaft or helical gear motor options, providing efficient operation in grain, bulgur, and lentil plants. The motor can be mounted on either side, and the central drive balances the chain movement, enhancing energy efficiency and reliability.
Optional sensors allow SE-CC-20/20 to monitor overflow, rotation, and bearing temperature in flour, semolina, and grain silos. The electronic speed guard ensures safe and precise chain operation, and sensors can easily be installed in standard mounting brackets.
SE-CC-20/20 can be equipped with slide gates, top covers, return buckets, and inspection windows for seed, rice, and chemical product plants. Chain guards and wear plates enhance operational safety and facilitate maintenance.
SE-CC-20/20 is widely used in flour and semolina mills, grain silos, bulgur and lentil processing, rice, and chemical product plants. Its compact design and flexible chain system allow fast integration into different production lines, ensuring reliable and efficient material handling.

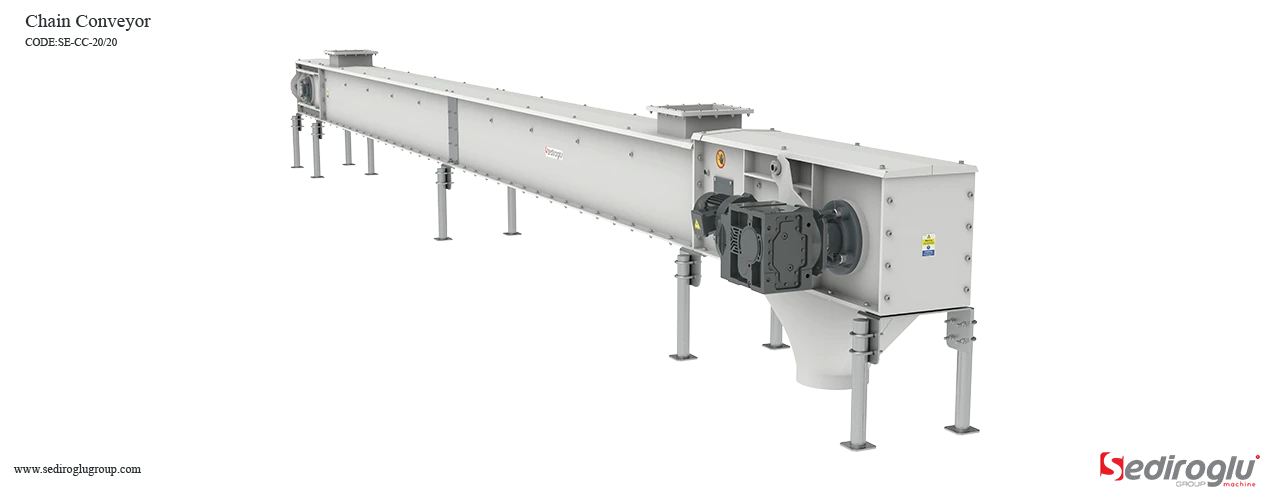

Watch the Video to Learn More About Our Machine’s Features
SE-CC-20/20
We strongly recommend watching our detailed demo video, which helps you evaluate not only the technical specifications but also the machine’s real-life working principle, its influence on product flow, the technological advantages that enhance process efficiency, the practical ease it provides in terms of maintenance and operation, its durability level, and the overall value it will add to your production line before making your purchasing decision.
