🔻 Single Weighing System Advantage
Stable and controlled packaging performance

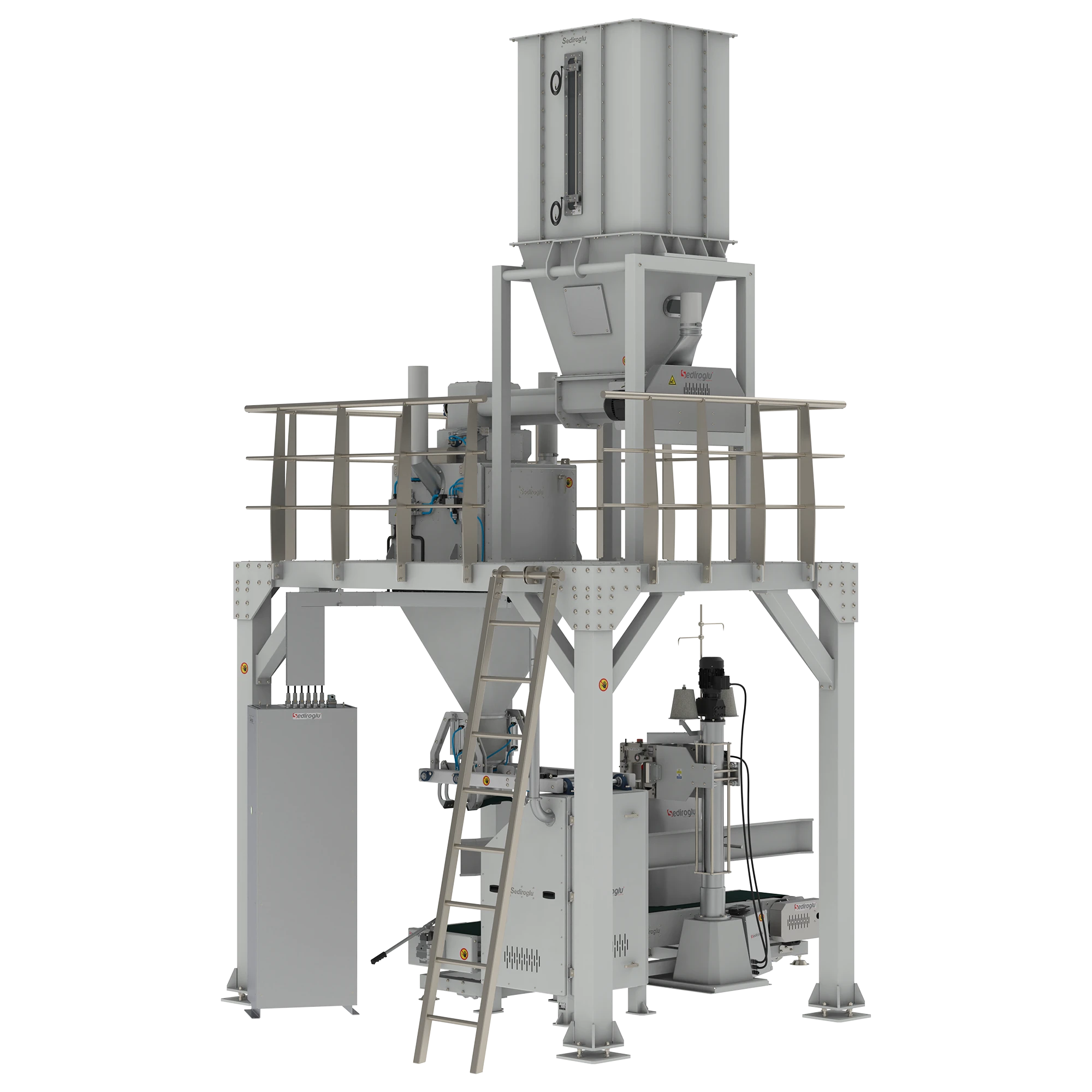

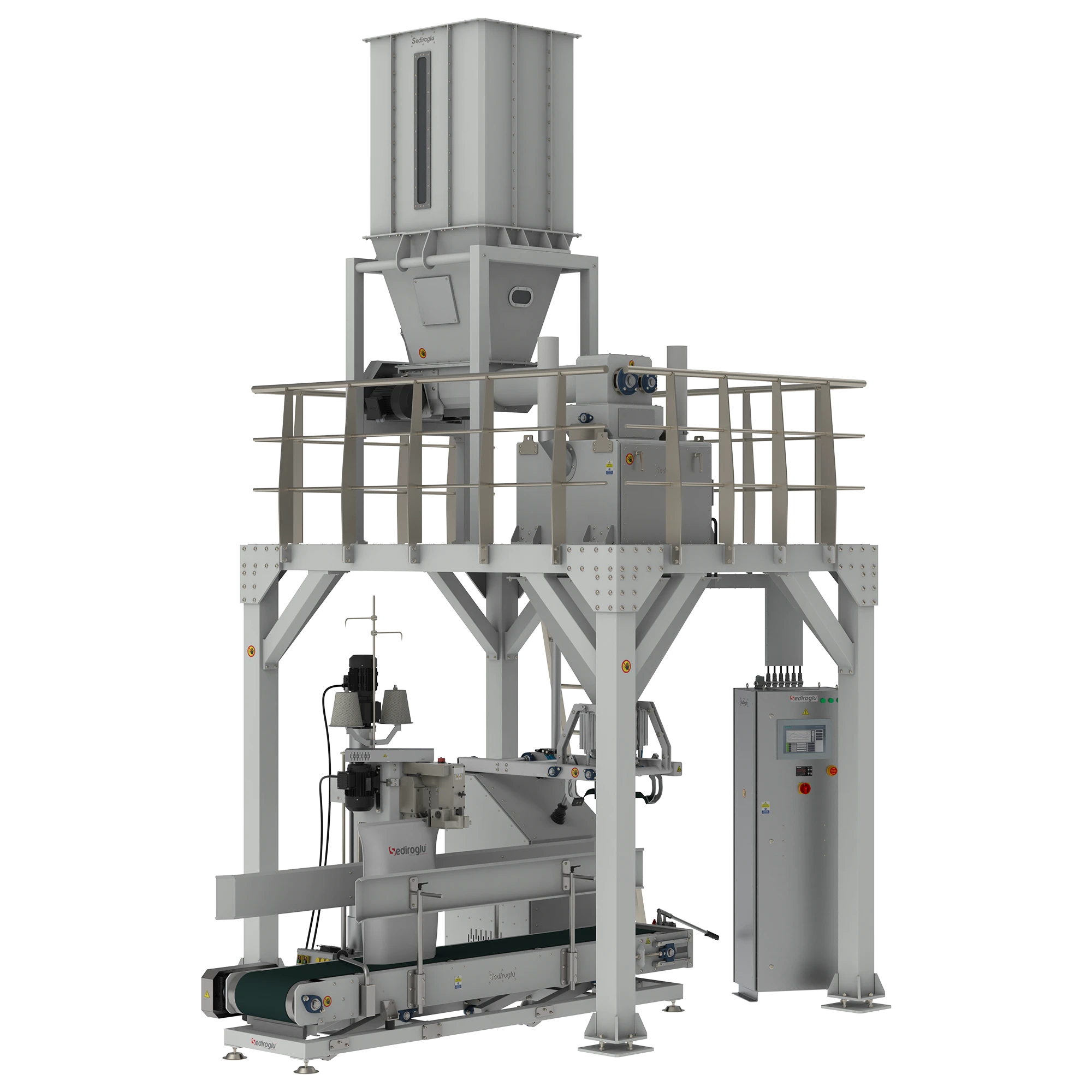

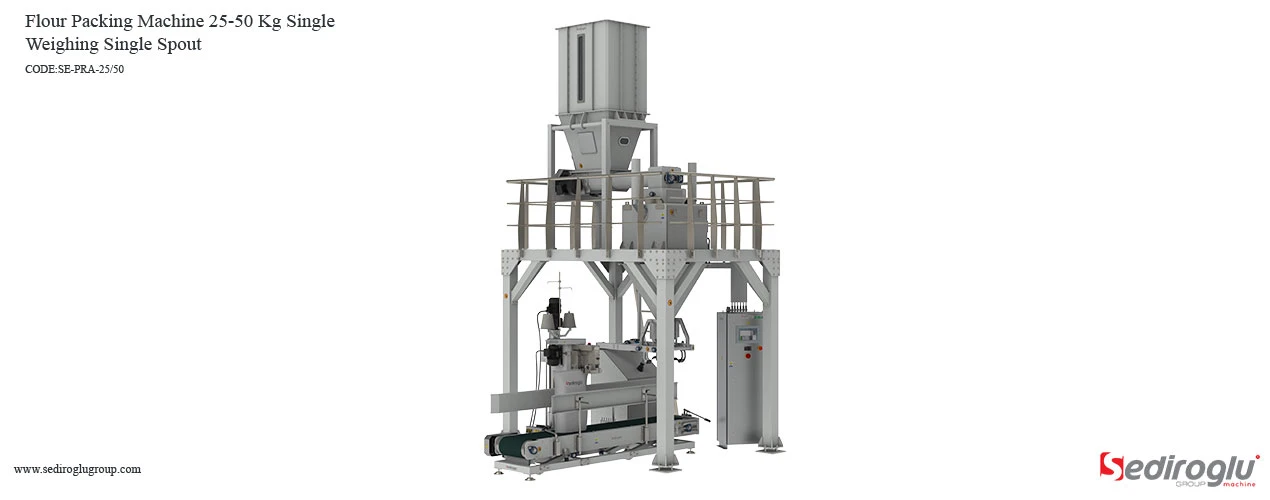

The SE-PRA-25/50 model is designed with a single weighing and single discharge system, ensuring stable and controlled packaging of powder products. This configuration is ideal for operations where consistency and reliability are more important than extreme speed.
The system minimizes mechanical complexity while maintaining high weighing accuracy, making it a cost-effective solution for industrial facilities handling flour and similar materials.
🔻 Powder Product Compatibility
Optimized for fine and dusty materials

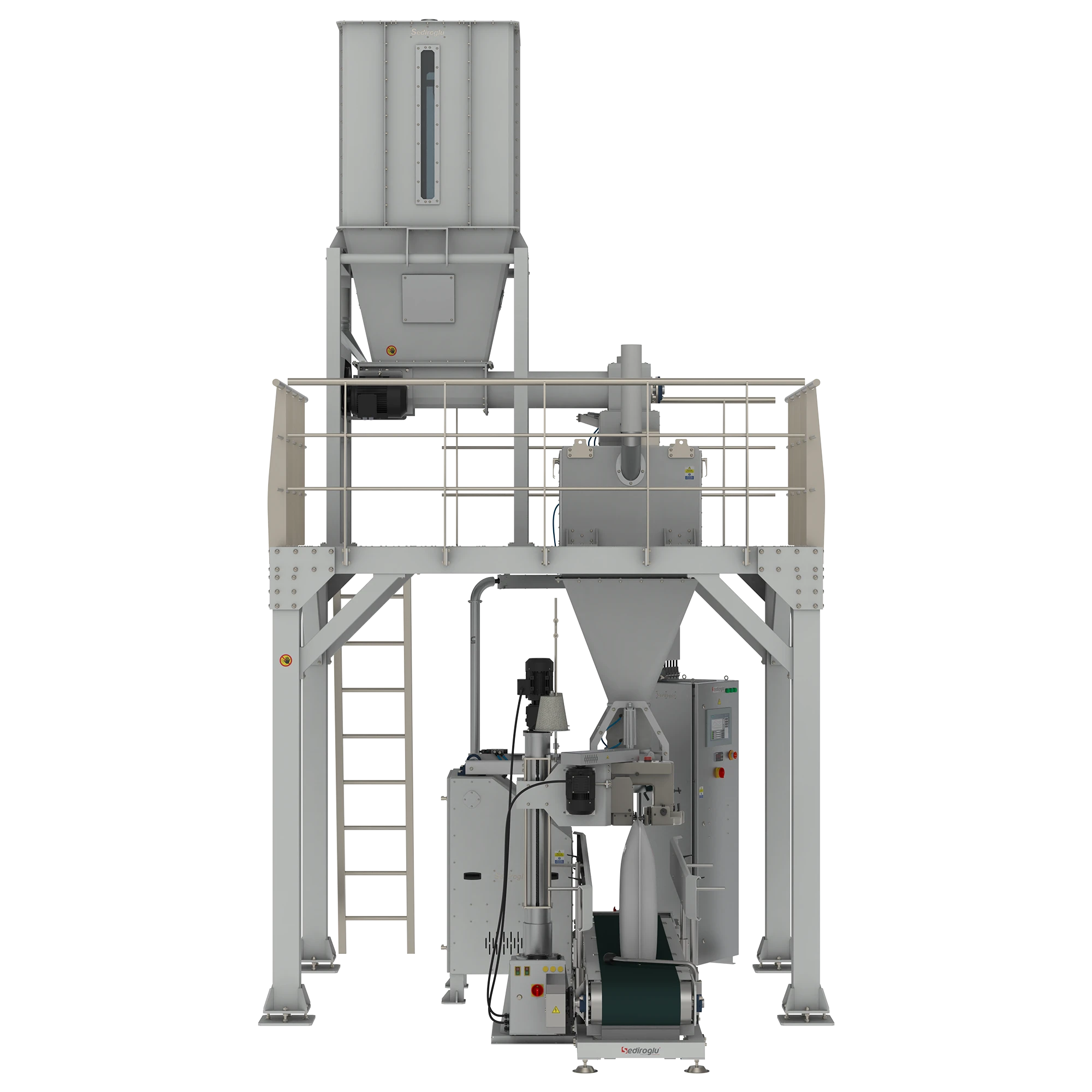

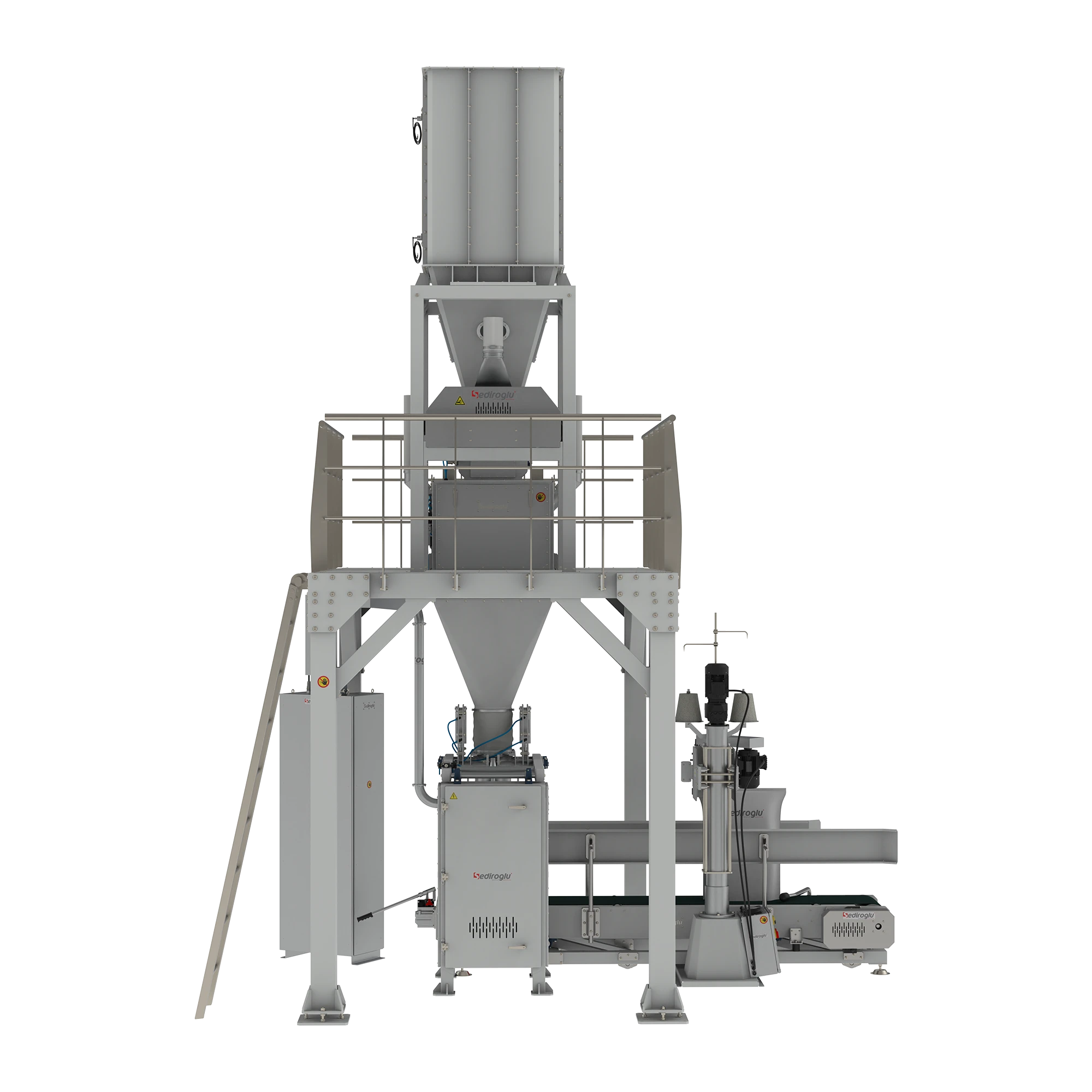

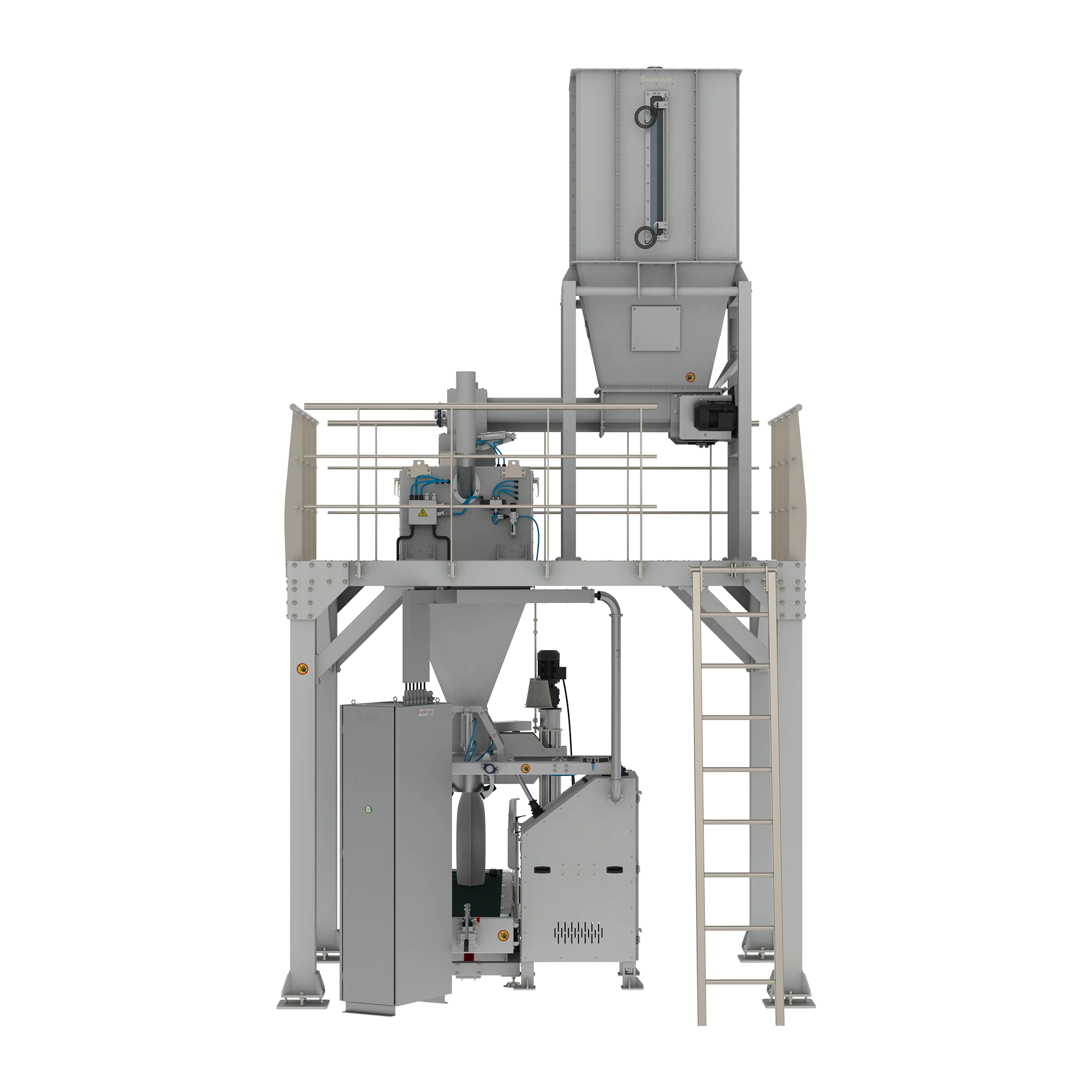

This machine is specially engineered to handle fine powder products such as flour, starch, and semolina. Its design ensures smooth product flow, minimizing dust formation and product loss during packaging.
The controlled discharge system prevents overflow and ensures proper filling of bags without compromising accuracy.
🔻 Industrial Application Areas
Wide range of powder processing industries
This machine is widely used in:
• Wheat flour production facilities
• Semolina and starch processing plants

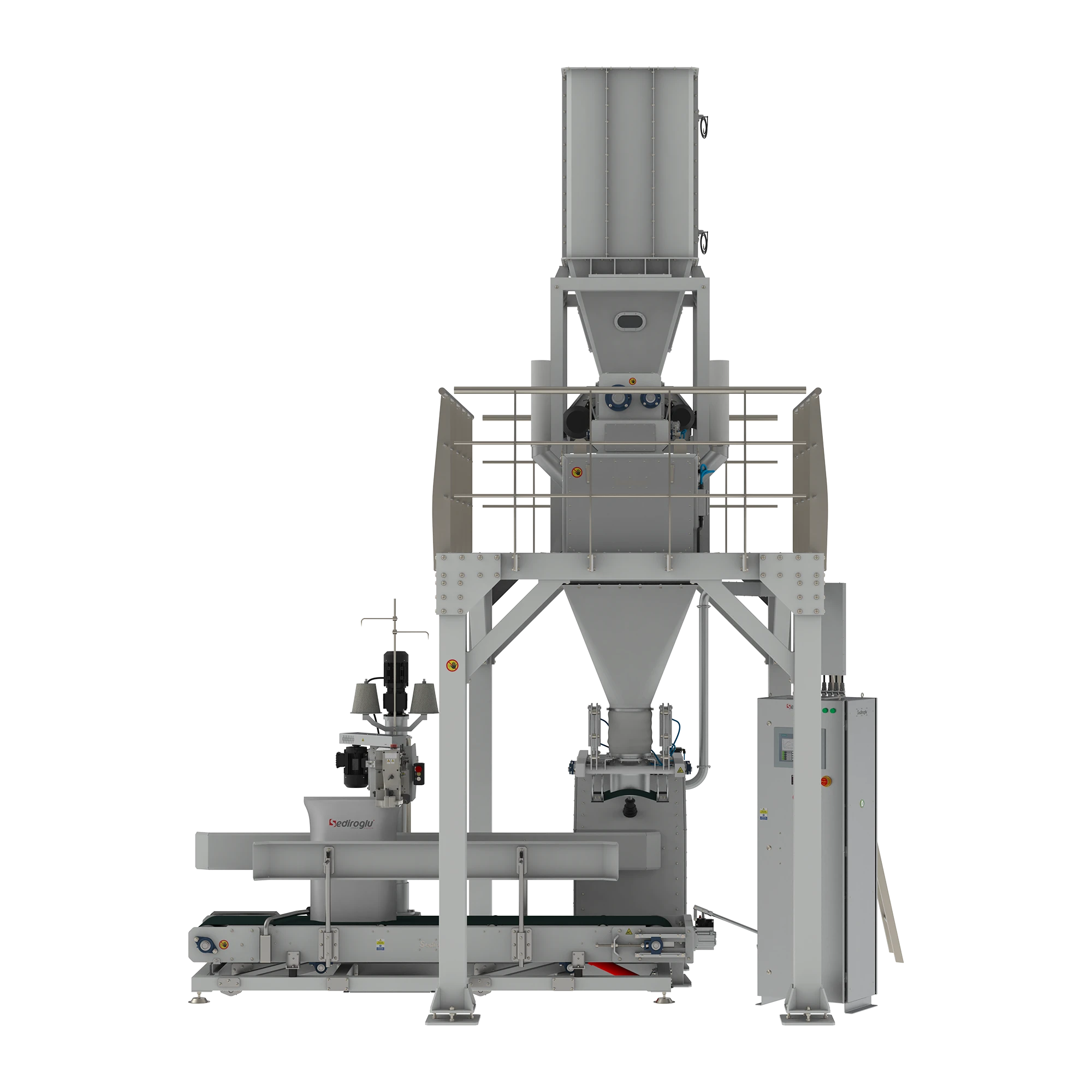

• Breadcrumb (galeta unu) production
• Powder food production industries

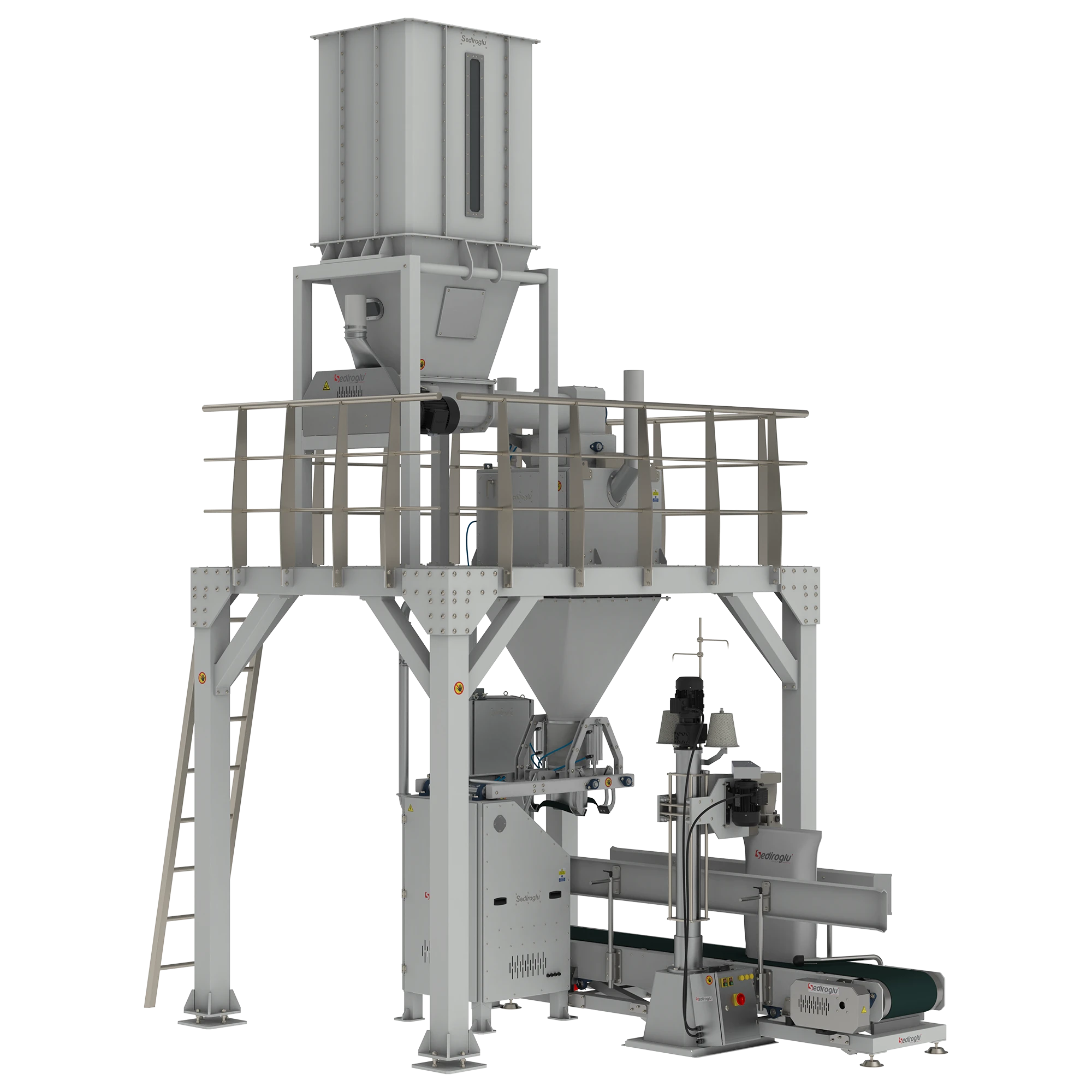

• Chemical powder processing plants
• Paint and coating production facilities
• Plastic powder and raw material processing plants
• Detergent production facilities
• Wood and timber processing industries
• Non-ferrous material processing industries
🔻 Working Principle
Simple, reliable, and efficient operation

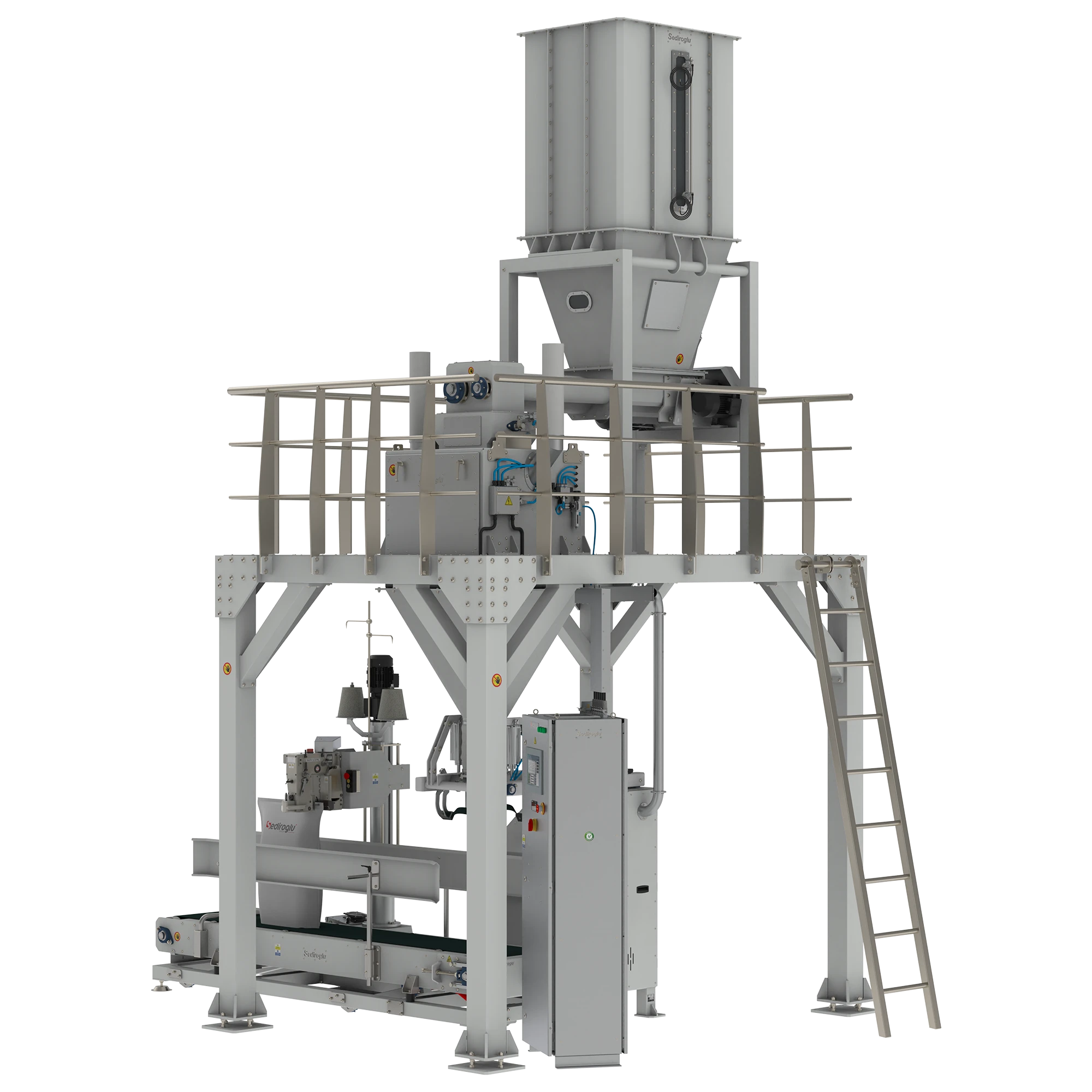

The product is fed into a single weighing hopper where it is measured with high precision. Once the target weight is reached, the system discharges the material through the single spout into the bag.
This straightforward operation ensures consistent bagging performance with minimal operator intervention, making it ideal for stable production environments.

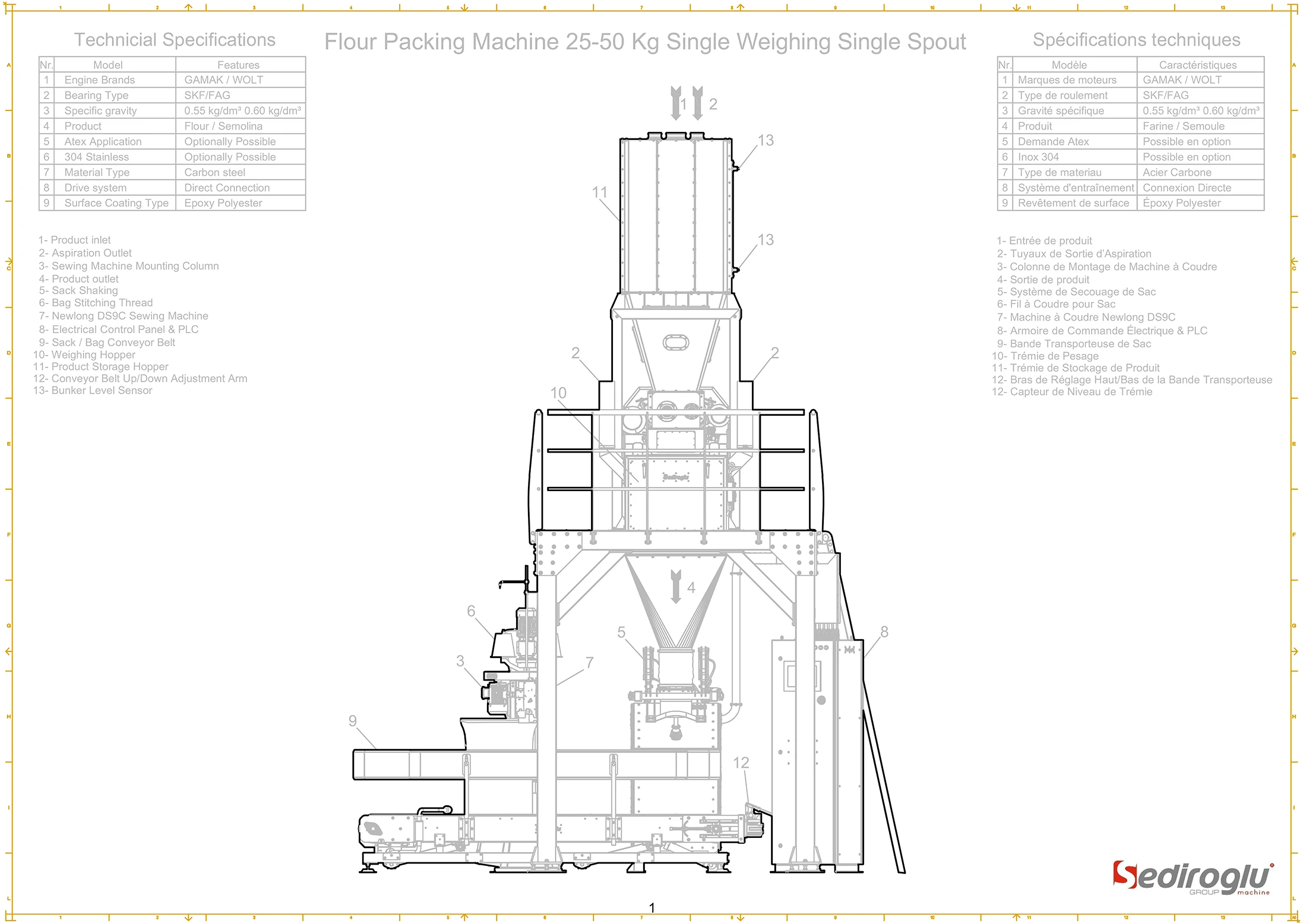

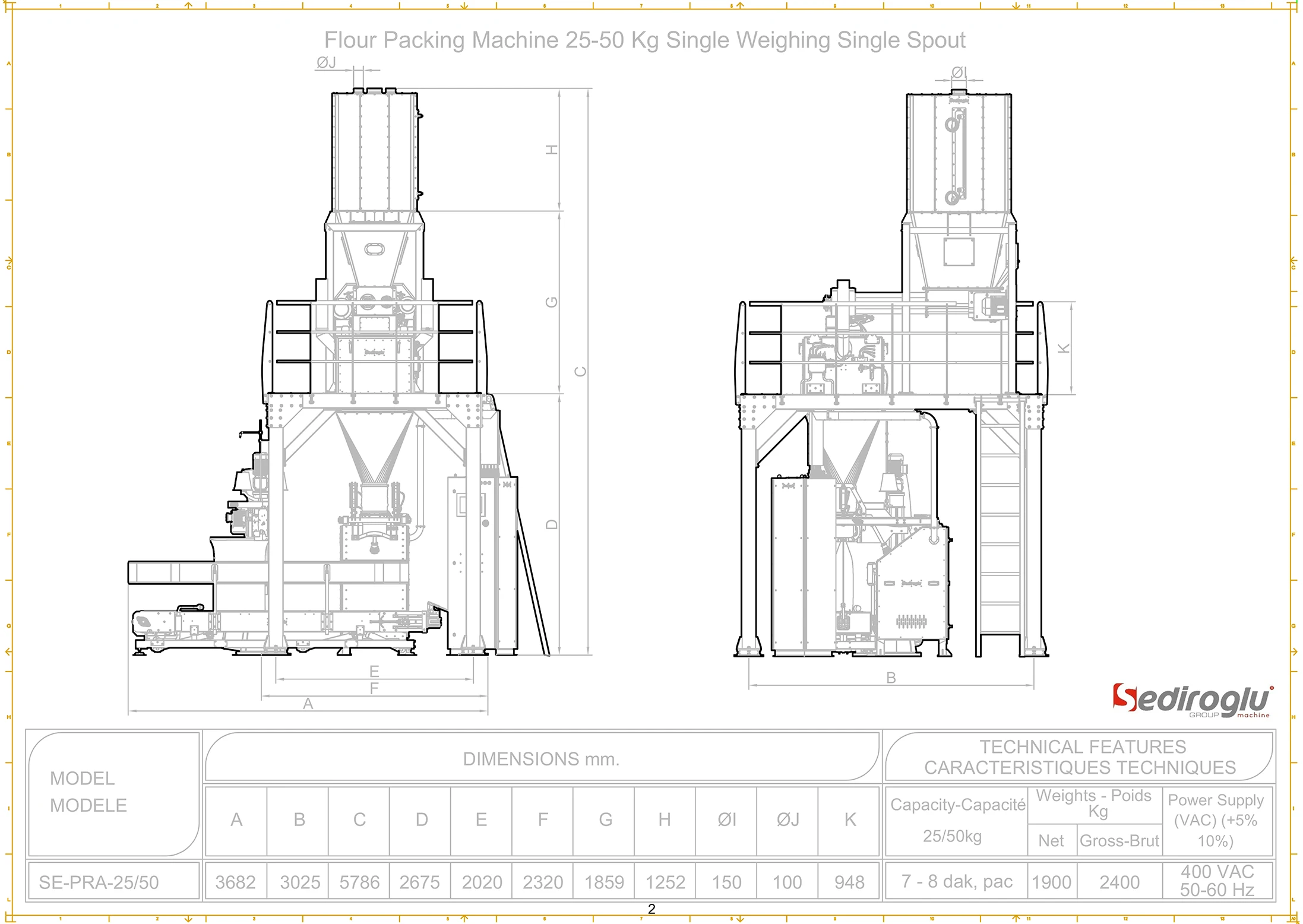

🔻 Technical Specifications
· Weighing Accuracy: ± 0.3% (using high-precision German load cells)
· Bag Type: Polypropylene bags and kraft stitched paper bags
· Capacity:
• 50 Kg → 400 Bags / Hour
• 25 Kg → 450 Bags / Hour
· Air Pressure: 5–6 Bar (Festo pneumatic system)
· Air Consumption: 15.2 L / Minute
· Power Supply: 3 Phase, 380 VAC, 50–60 Hz
· Total Power: 5.5 kW
· Construction: Chrome & HRP vibration-resistant metals for long-lasting industrial durability
· Modular Structure: Allows easy maintenance, fast part replacement, and system expansion
· Weighing System: Single weighing hopper designed for precise and stable powder measurement
· Discharge System: Single spout for controlled and accurate filling of bags
· Sewing Machine: Newlong DS9C industrial stitching machine for secure and continuous bag closure
· Sewing Column: Integrated sewing machine mounting column for stable and ergonomic operation
· Bag Thread: High-strength industrial sewing thread for durable bag sealing
· Conveyor Belt: Food-grade conveyor belt suitable for powder and fine materials
· Conveyor System: Integrated sack conveying system for continuous production flow
· Coating: Food-grade epoxy powder coating for hygienic and corrosion-resistant surface
· Motor: Siemens or high-quality Turkish brand motors for reliable and long-term operation
· Electrical System: Siemens, Omron, or Schneider industrial-grade electrical components
· Control Panel: Industrial electrical control panel with advanced safety and control systems
· PLC & Monitoring: Siemens / Omron PLC with 17-inch touchscreen monitor for precise control and user-friendly operation
· Bunker System: Product storage hopper and weighing hopper integrated into the system
· Level Sensor: Bunker level sensor for automatic material control
· Dust Control: Aspiration outlet pipes for dust management and clean working environment
· Conveyor Adjustment: Up/down adjustable conveyor arm for flexible operation
· Bag Handling: Sack shaking system for proper bag filling and settling
· System Type: Single Weighing – Single Spout
· Application: Suitable for flour, starch, semolina, and all types of powder materials
🔻 Packaged Products
• Wheat flour
• Whole wheat flour
• Semolina
• Starch
• Breadcrumbs
• Powder food products
• Chemical powders
• Detergent powders
• Plastic powder raw materials
🔻 Advantages & Benefits
• Stable and precise weighing system
• Ideal for powder and dusty materials
• Controlled single spout discharge
• Medium capacity with reliable performance
• Low energy consumption (5.5 kW)
• Durable industrial construction
• Easy operation and maintenance
• Cost-effective solution for powder packaging
🔻 Maintenance Schedule
• Weekly: Clean weighing hopper and remove powder residues, check discharge system for proper flow and dust accumulation
• Monthly: Inspect mechanical components, tighten connections, and verify weighing accuracy through calibration checks
• Yearly: Full system inspection, replacement of worn parts, recalibration of weighing system, and electrical system testing
