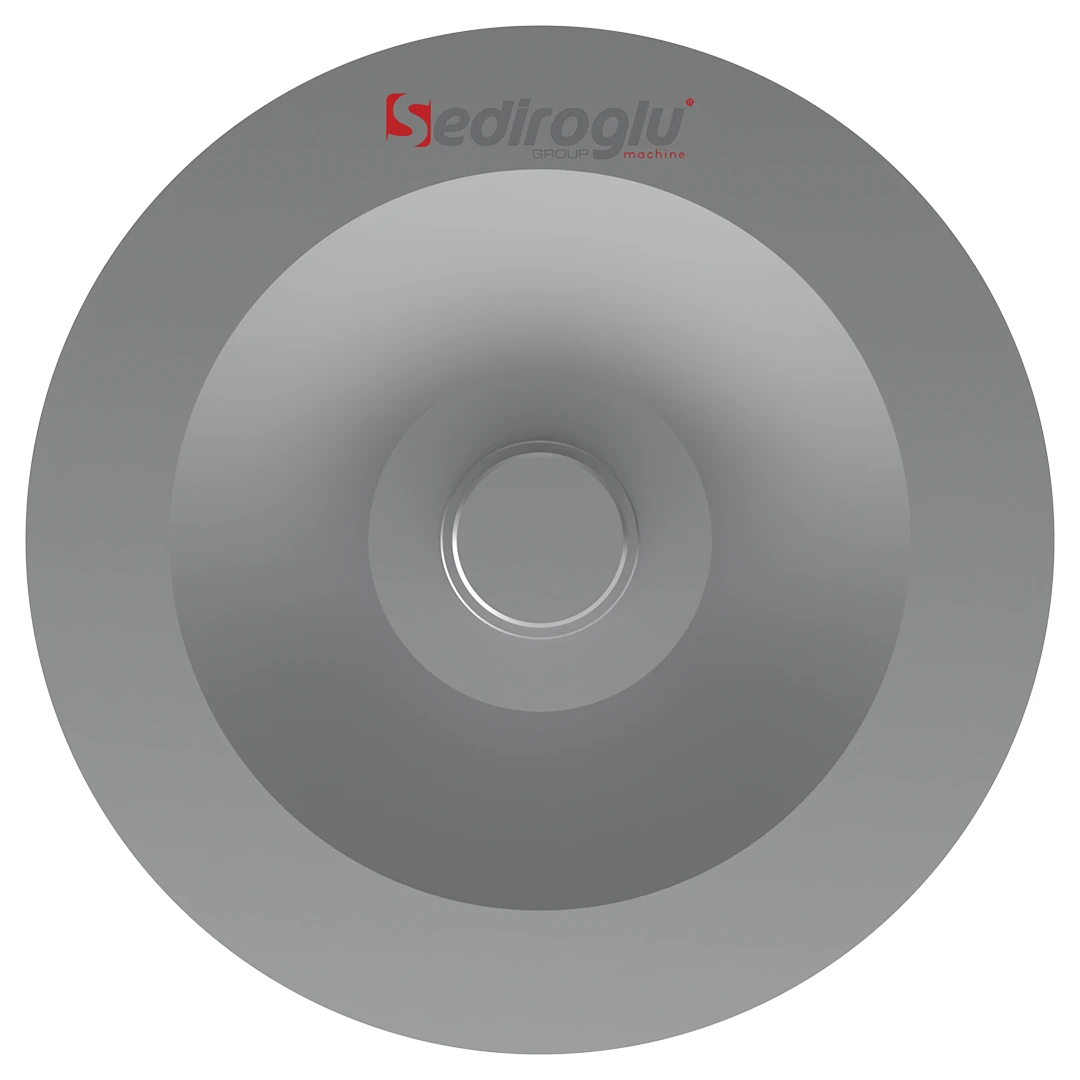

Rotary Airlock Valve Internal Rotor Vane Assembly
Heat-treated cast internal rotor for Rotary Airlock Valve, CNC-machined for airtight operation, uniform material discharge, and long service life in industrial systems.

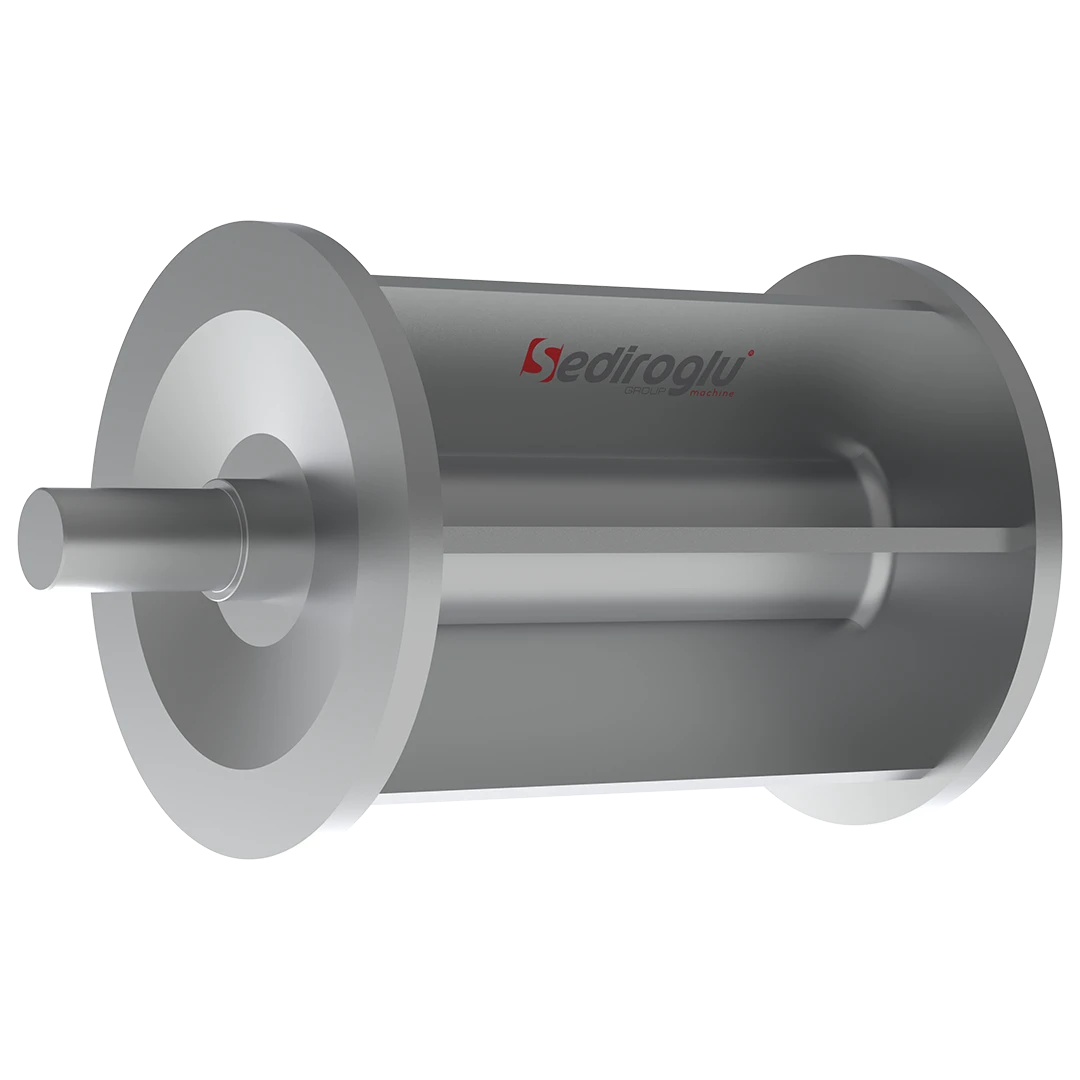

The Rotary Airlock Valve Internal Rotor (Vane Assembly) is the core functional component responsible for controlled material discharge inside the Rotary Airlock Valve. This rotor is directly coupled to the drive motor and rotates continuously within the valve housing, transporting material trapped in its internal chambers toward the bottom outlet.

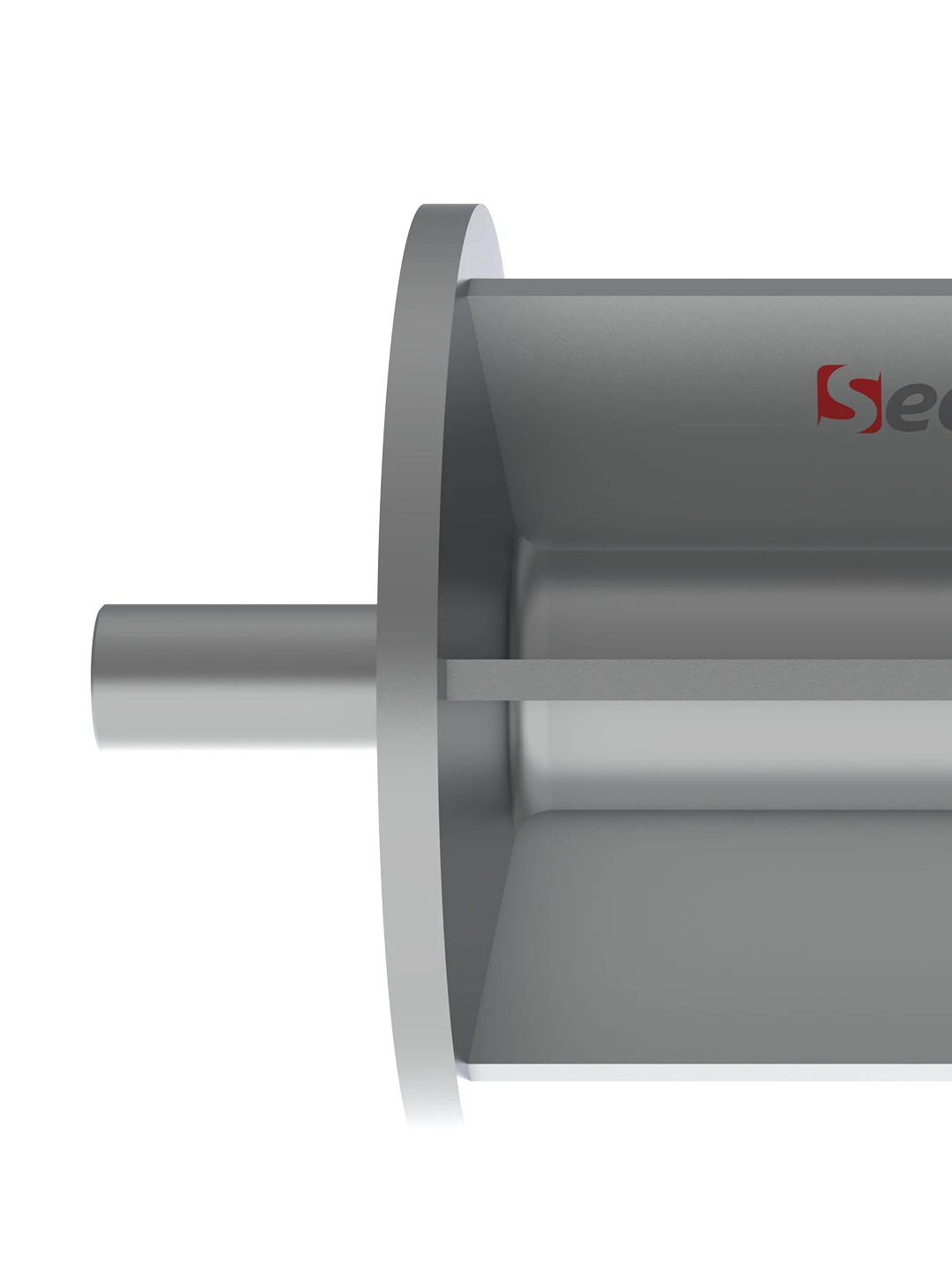

Manufactured from heat-treated cast material, the internal rotor delivers exceptional mechanical strength, high wear resistance, and stable performance under continuous industrial operation. Heat treatment significantly increases surface hardness, making the rotor suitable for abrasive materials and high-duty cycles.
All critical surfaces of the rotor are precision-machined on CNC lathes, ensuring perfect dimensional accuracy and concentric alignment with the valve body. This precise machining minimizes internal clearances, effectively reducing air leakage and maintaining pressure balance between connected systems.
The optimized vane geometry ensures smooth material transfer, prevents clogging, and supports consistent flow rates. Thanks to its airtight design, the internal rotor is ideal for applications where pressure control, dust prevention, and accurate material dosing are essential.
This spare part plays a crucial role in maintaining the efficiency, sealing performance, and operational reliability of Rotary Airlock Valve systems used in milling, conveying, and dust collection processes.
Rotary Airlock Valve Internal Rotor Vane Assembly
Key Features & Advantages
Application Areas• Direct motor-coupled internal rotor design • Manufactured from heat-treated cast material • High resistance to wear and abrasion • CNC-machined for precise tolerances • Minimizes air leakage and pressure loss • Ensures uniform and controlled material discharge • Stable rotation with reduced vibration • Long service life under continuous operation The Rotary Airlock Valve Internal Rotor is used in: • Flour mills • Semolina factories • Whole wheat flour mills • Corn flour and maize processing plants • Breadcrumb (galeta) production lines • Feed mills • Cement production facilities • Pneumatic conveying systems • Dust collection and filtration systems • Recycling plants
